POLE MUST BE STATIONARY:
NOT ON A VEHICLE.
This is a directional antenna
and should be rotated on the
maximum signal reception.

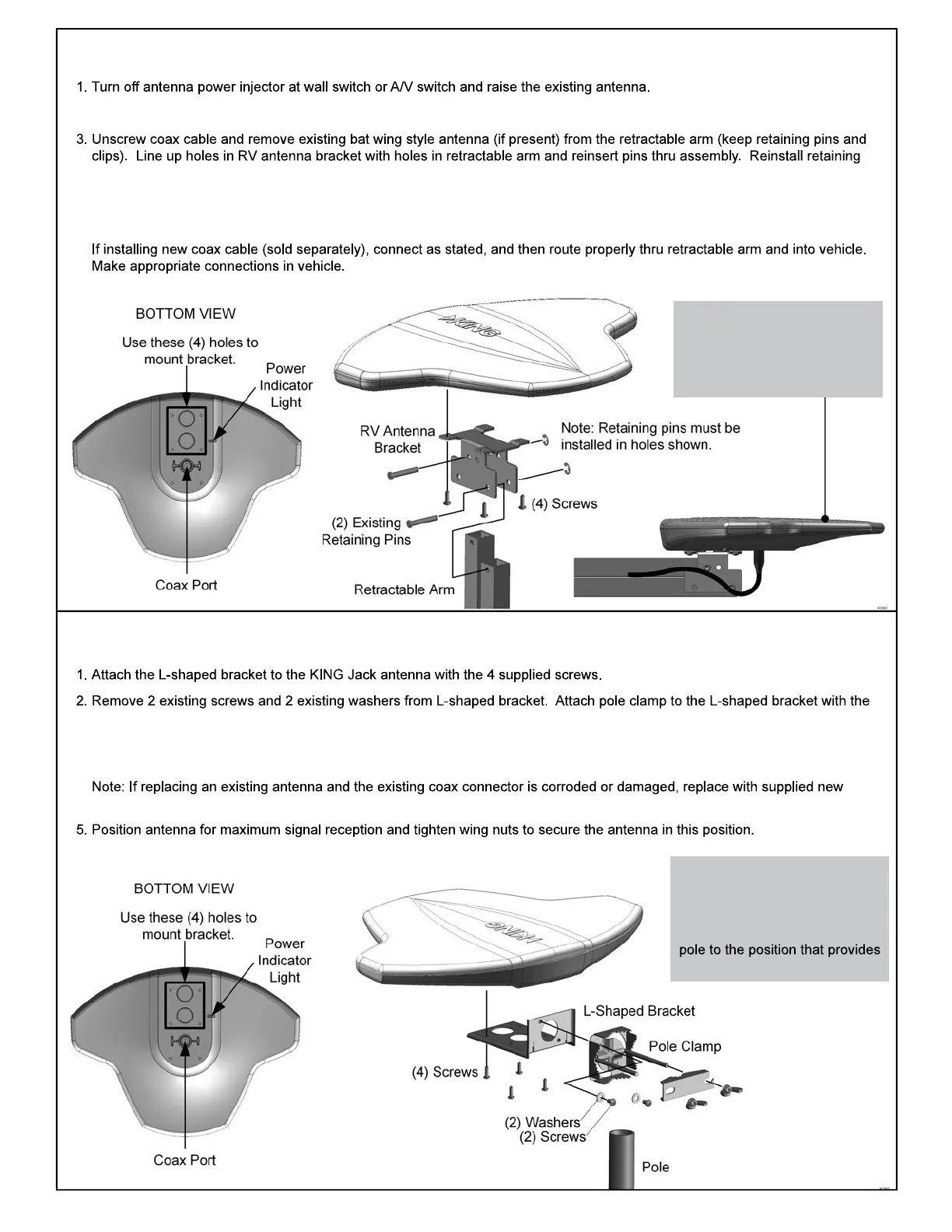

Option 1: BAT WING STYLE REPLACEMENT
2. Attach the RV antenna bracket to the KING Jack antenna with the 4 supplied screws.
clips (use new supplied retaining clips if necessary). You must mount antenna in relation to poles as shown below.
4. Fill end of existing coax cable with supplied dielectric grease and screw to antenna (DO NOT OVERTIGHTEN).
Note: If existing coax connector is corroded or damaged, replace with supplied new connector.
Option 2: POLE MOUNT BRACKET
same screws and washers.
3. Place the clamp around an appropriate pole and tighten wing nuts.
4. Fill end of coax cable (sold separately) with supplied dielectric grease and screw to antenna (DO NOT OVERTIGHTEN).
connector. Route coax cable and make appropriate connections.
IMPORTANT! Make sure to
mount head in relation to pole
heights as shown.
This will allow poles to fully
retract to stowed position.
To Next Page
