Adjustment mechanism allowing for greater tolerance
is incorporated to simplify installation process.
Easy Assembly with Front End Installation
Our specially designed Front Installation allows quick and simple drawer installation and removal
procession. The quick connect and disconnect device is location at the front end under the drawer,
keeping intact the elegant appearance of the drawer.

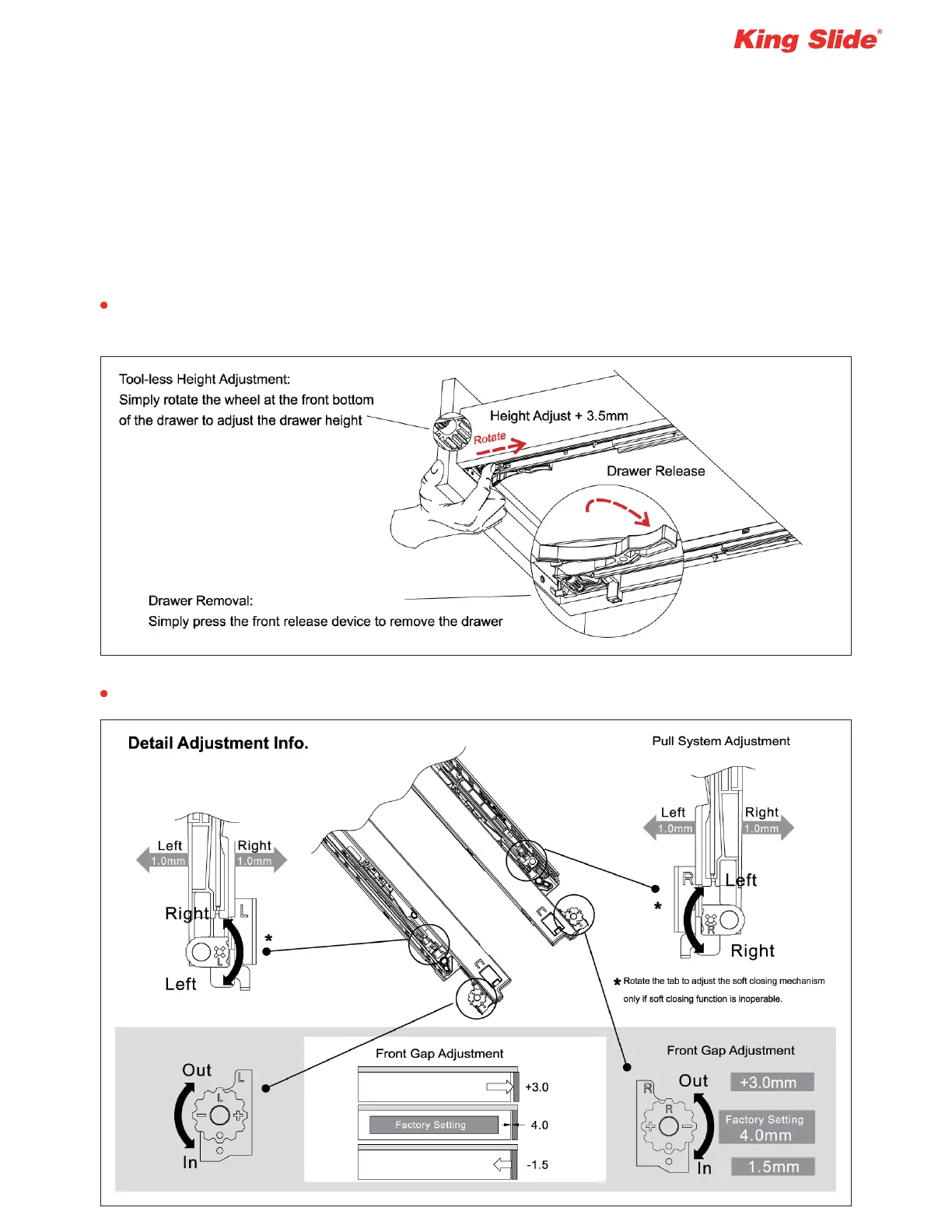

Tool-less Height Adjustment and Drawer Removal
Simply rotate the wheel at the front bottom of the drawer to adjust drawer height up to 3.5mm.
High installation allowances for drawer width: +0.5/-1mm, and for drawer depth: +1/-1mm
