Installation
- DO NOT wire/t a plug to this appliance. The appliance
must be electrical connected to a fused xed spur, which is
tted with a 13Amp fuse.
- All ttings must be installed by a competent person in
accordance with the current IET Wiring Regulations
(BS7671). If in doubt, consult a qualied electrician.
- This product is suitable for use in living areas, and Bathroom
(dry) outside Zones and zone 2 only (see diagram below
and current IET Wiring Regulations for details). It is not
suitable for Bathroom Zones 0 and 1. If being tted in a
bathroom a 30mA RCD must be used. This appliance
does not come tted/supplied with a fused plug.
- Always refer to the Reference Drawing for Bathroom
Installation.

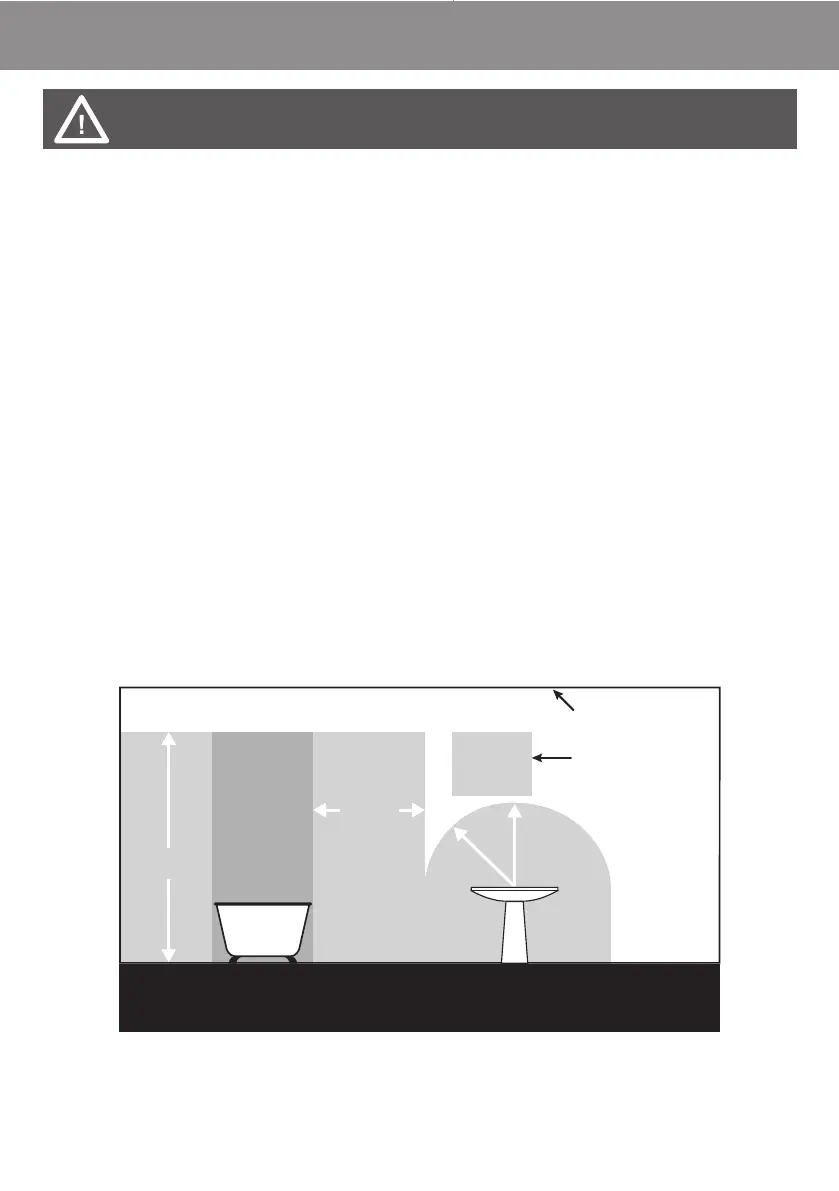

Note : the below drawing is for reference only.
- Full details can be found in the current IET Wiring
Regulations (BS7671).
0.6m
0.6m
ZONE
2
Window
recess
(DRY) OUTSIDE ZONES
ZONE
2
ZONE
1
2.25m
Ceiling
ZONE
0
IP24: THIS PRODUCT IS SUITABLE FOR BATHROOMS
(DRY) OUTSIDE ZONES AND ZONE 2
