KINROAD 150 SERVICE MANUAL VERSION 1, DEC., 2005
76
amount of grease to the lip of the seal. If the retention spring is in bad shape, replace the seal with a
new one.

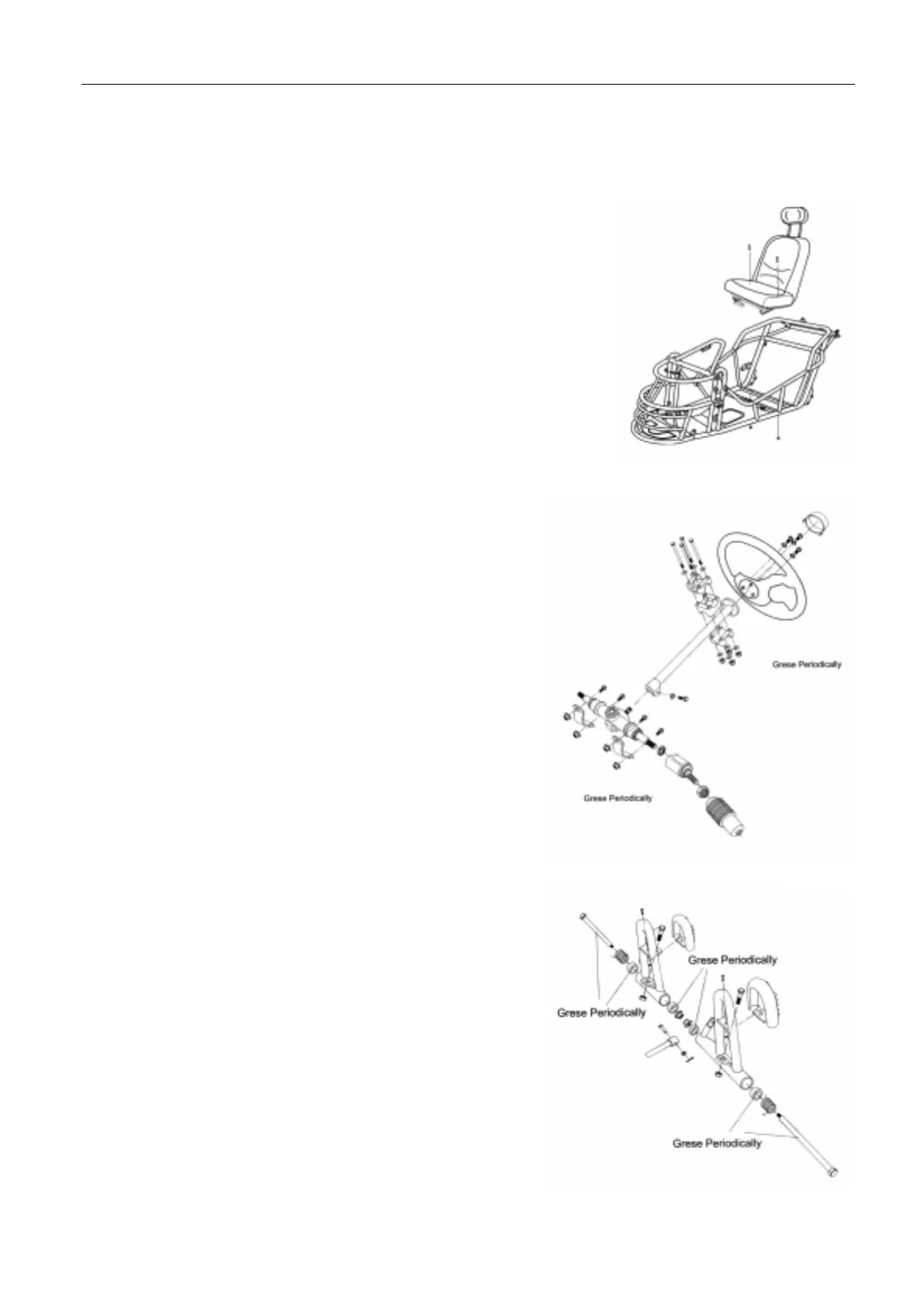

SEAT
z Remove all the Nuts and Bolts underneath the seat rail.
z Remove the seat.
STEERING SHAFT
z Remove Nuts, Steering Block and grease inside of
Steering Block periodically.
z Loosen Steering Shaft and Clamp Nut, Steering Gear
Box.
z Remove Steering Shaft.
STEERING GEAR BOX AND BALL HEAD, STEERING
GEAR BOX
z Remove four bolts on LH&RH Clamp Nut, Steering Gear
Box.
z Remove and check Ball Head Dust Cover, Steering Gear
Box for wear.
z Check Steering Cover on both sides of Steering Gear Box
and Grease the Ball Head.
z Steering Gear Box, fill with Grease after cleaning the dust.
It is recommended to replace the Ball Joint if it is loose or
not smooth.
THROTTLE & BRAKE PEDAL
z Remove Throttle, Throttle Pedal and Axle Nut. Check for
signs of wear. Replace if wear is present. Fill with grease
in order to make the Throttle & Brake Pedal swing more
flexible before installation.
