This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By:
Size:
File Name:
Units:
Date:
Date:
Req'd:
Description:
CNC:
IndexService Part #File Name
Description
Qty
1 CS2520-ASM-11 1
2 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 2
3 A00-0023 FLANGE_BOLT_1-4X3-4 Flange Bolt, 1/4" x 3/4", YD 4
4 A00-0061 TEKT-0021 Striker Mounting Plate 2
5 A00-0084 TEKT-0070 Gas Shock 2
6 A00-0085 TEKT-0069 Gas Shock Stud 2
7 A00-0101 STRIKER-PIN Striker Pin 2
8 A00-0103 HEX-NUT-M12X1 Hex Nut, M12 x 1.0, YD 2
9 A00-0141 ROUND_MIRROR_6_INCH External 6" Mirror 2
10 A00-0179 FLANGE-NUT-1-2 1/2" Nut 2
11 A00-0202 TEKT-ASM-009R Right Mirror Bracket Weldment 1
12 A00-0203 TEKT-ASM-009 Left Mirror Bracket Weldment 1
13 A00-0371 TEKT-0175 New LED Work Light (Blazer Intl) 4
14 A00-0389 KUBX2380-NOSTRIL Plastic Light Nostril 2
15 A00-0413 FLANGE-NUT-5-16 Flange Nut, 5/16", YD 2
16 Ki2-0001 CS2520-029 Lower Front Window Glass 2

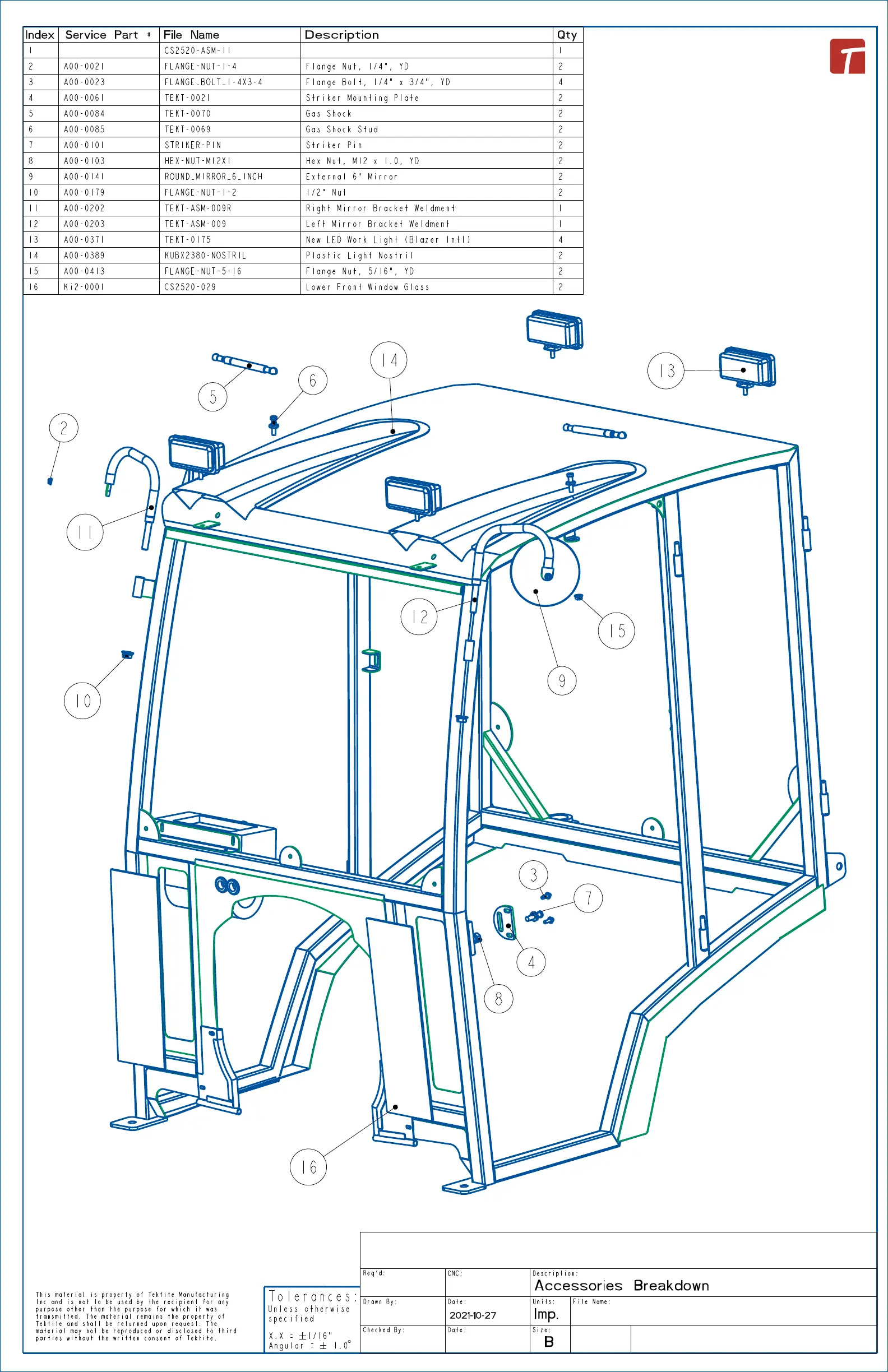

Accessories Breakdown
2021-10-27 Imp.
B
SCALE 0.140
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Notice of Confidentiality
Tektite Manufacturing Inc.
24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada
Daryl Furkalo
CS2520-ASM-14
