5
-24 EX35/40/45/50
T46O567A T46O568A T46O569A

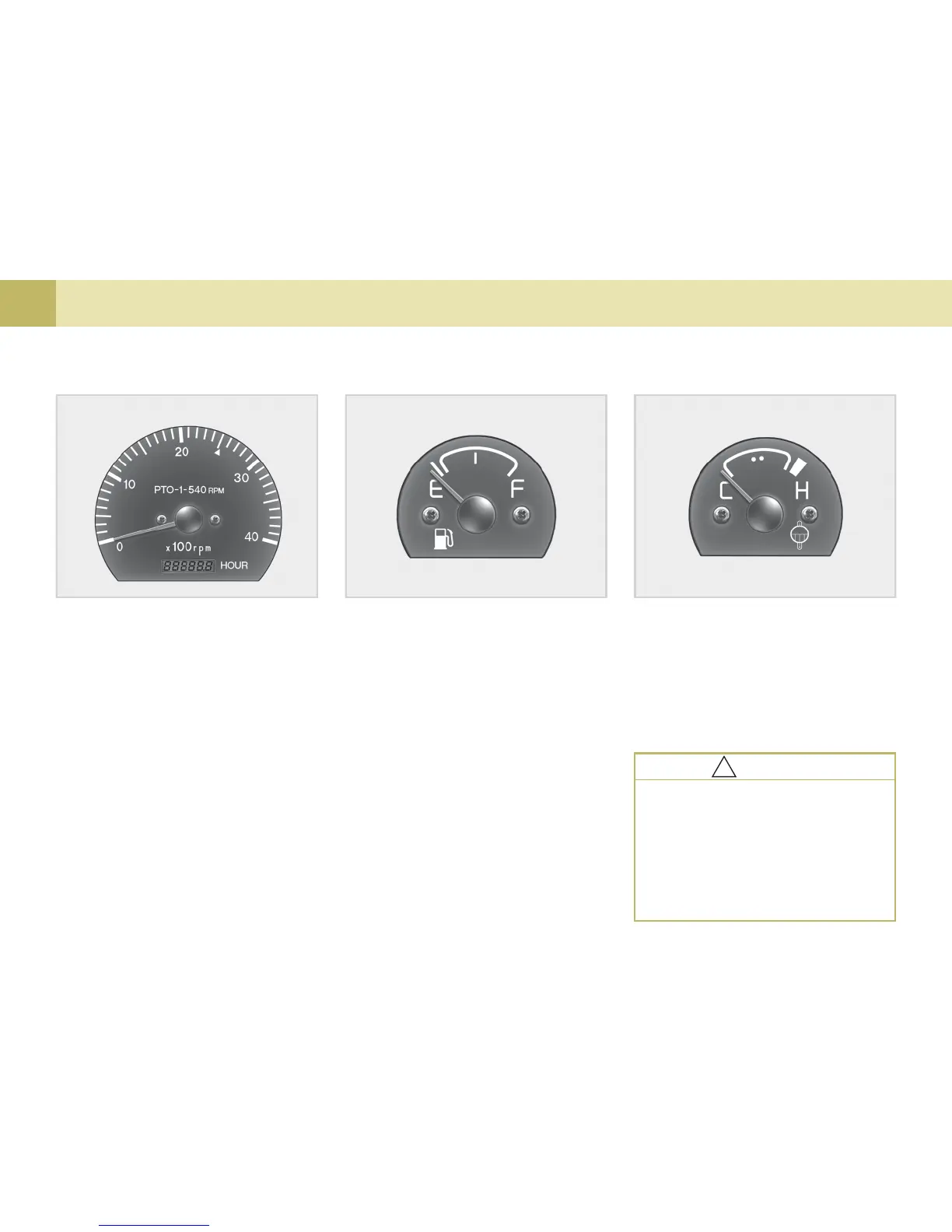

When the key switch is turned "ON"
this gauge indicates the temperature of
the coolant. "C" is for cold, and "H" is
for hot.
“C”COLD “H”HOT
COOLANT TEMPERATURE
GAUGE
To avoid personal injury:
Do not remove radiator cap un-
til coolant temperature is well
below its boiling point. Then
loosen cap slightly to the stop
to relieve any pressure before
removing cap completely.
!!
!!
!
CAUTION
TACHOMETER
The tachometer indicates the engine
speed and the 540rpm PTO operating
speed.
The hour-meter indicates, in five digits,
the hours that the tractor has been
operated.
When the key switch is on, the fuel
gauge indicates the fuel level.
Be careful not to empty the fuel tank.
Otherwise air may enter the fuel
system.
Should this happen, the system should
be bled (See "Bleeding Fuel System"
in Periodic Service Section).
FUEL GAUGE
“E” EMPTY “F” FULL
