-5DESCRIPTION OF OPERATING SYSTEM

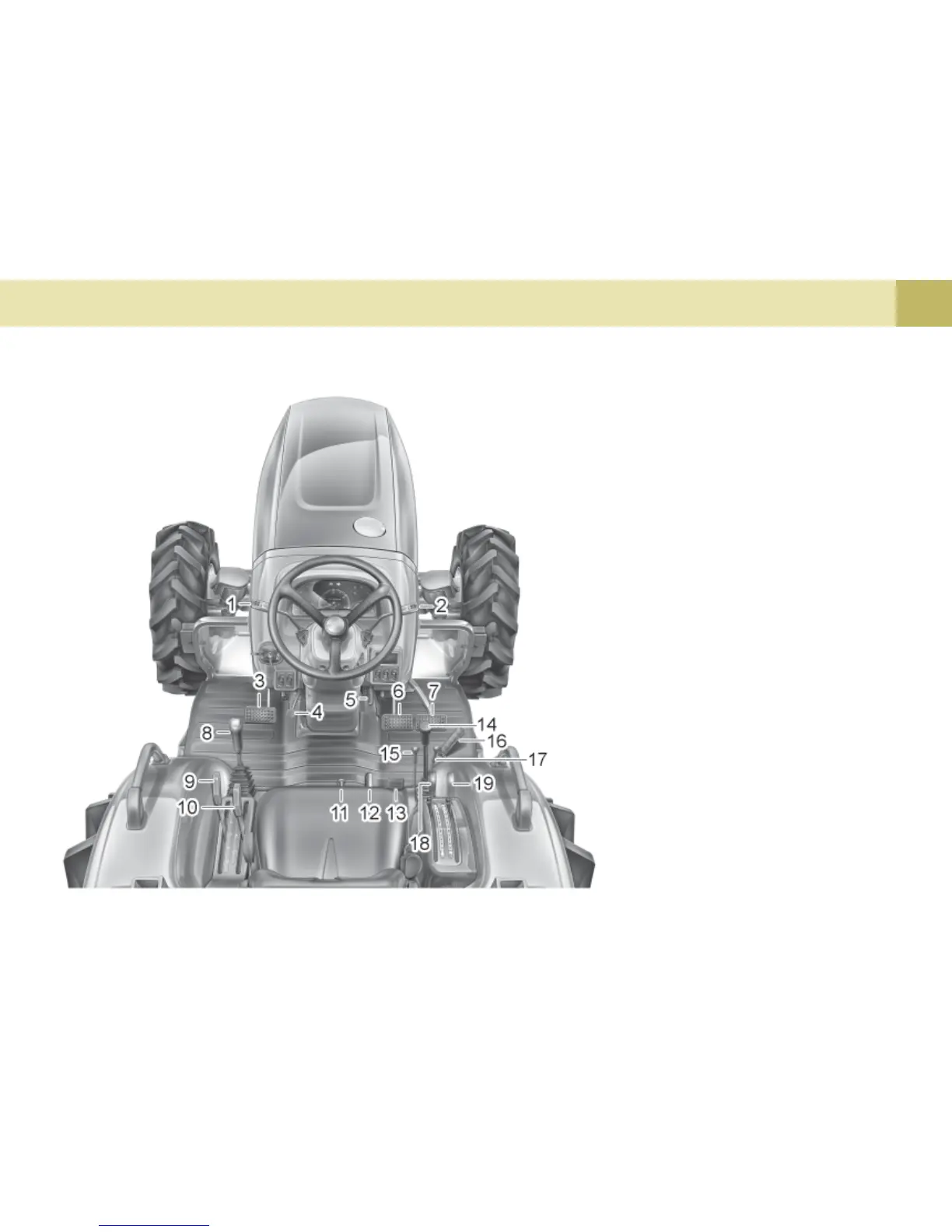

FOOT AND HAND CONTROLS
(1) Shuttle Shift Lever
(2) Hand Throttle Lever
(3) Clutch Pedal
(4) Tilt Steering Pedal
(5) Parking Brake Lock Lever
(6) Brake Pedal (L)
(7) Brake Pedal (R)
(8) Main Gear Shift Lever
(9) Creep Gear Shift Lever
(10) Range Gear Shift Lever
(11) 3-Point Hitch Lowering Speed Knob
(12) Mid PTO Shift Lever
(13) Differential Lock Pedal
(14) Joystick Lever
(15) Double Acting Lever(A,B)
(16) Foot Throttle
(17) Double Acting Lever(C,D)
(18) Draft Control Lever
(19) Lift Position Control Lever
Manual Type
T46O407A
