14 Tappet with groove for pulse fed
rocker arm lubrication
15 Push Rod
16 Rocker Arm Bearing
17 Metering Plug
18 Push Rod and Cover Tube
19 Restrictor Hole
20 Nozzle for Piston Cooling
21 Oil Pipe to Turbocharger
22 Oil return Pipe
23 Oil Pressure Gauge

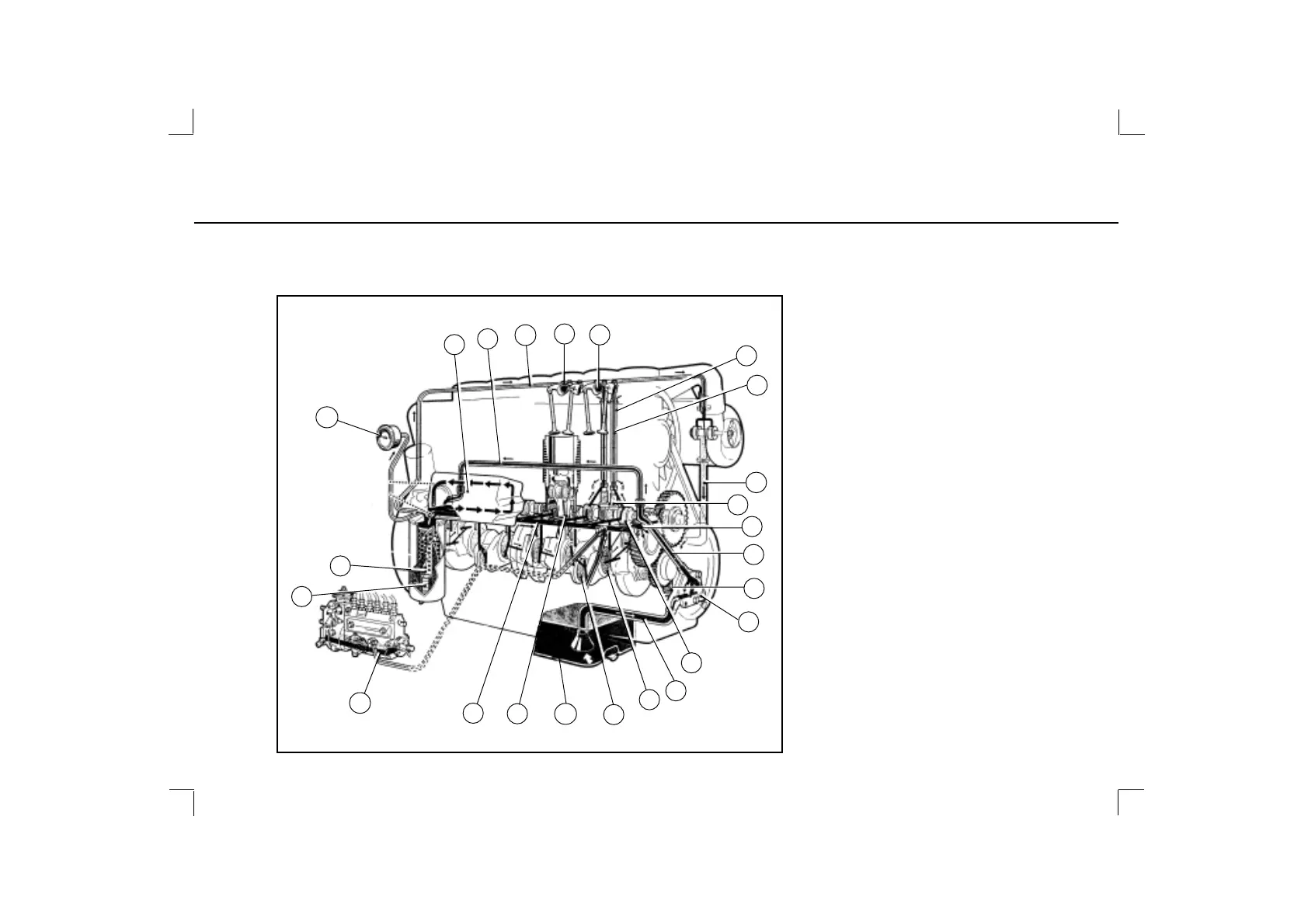

2. Engine Description 2.3 Lube Oil System
2.3.2. HA694 TC
6
21
16
17
14
1
5
4
3
13
11
12
19
2
7
8
22
23
24
9
18
15
20
10
