Kitables BLUETOOTH SPEAKER V.1 - Page 19

Lipo
Battery
5V
Booster
Charging
Module
Speaker
Speaker
+
-
BAT+
BAT-
GND
5V
IN+
IN-
GND5V
Bluetooth
+
-
JST

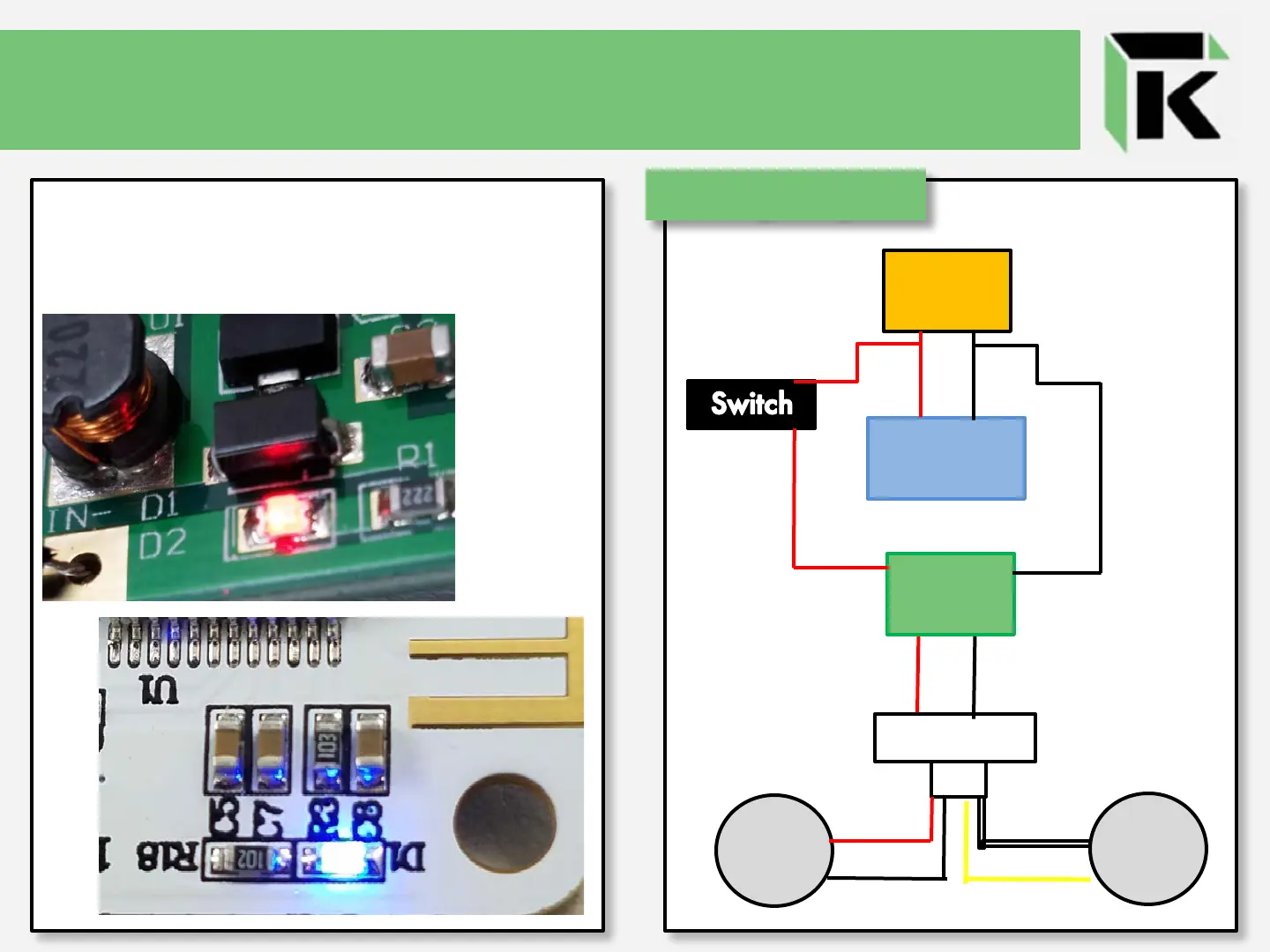

Wiring Diagram
Test your connection by turning on the
switch. You will see the Booster and the
Bluetooth boards light up.
Bluetooth Speaker Kit Instructions V.2
