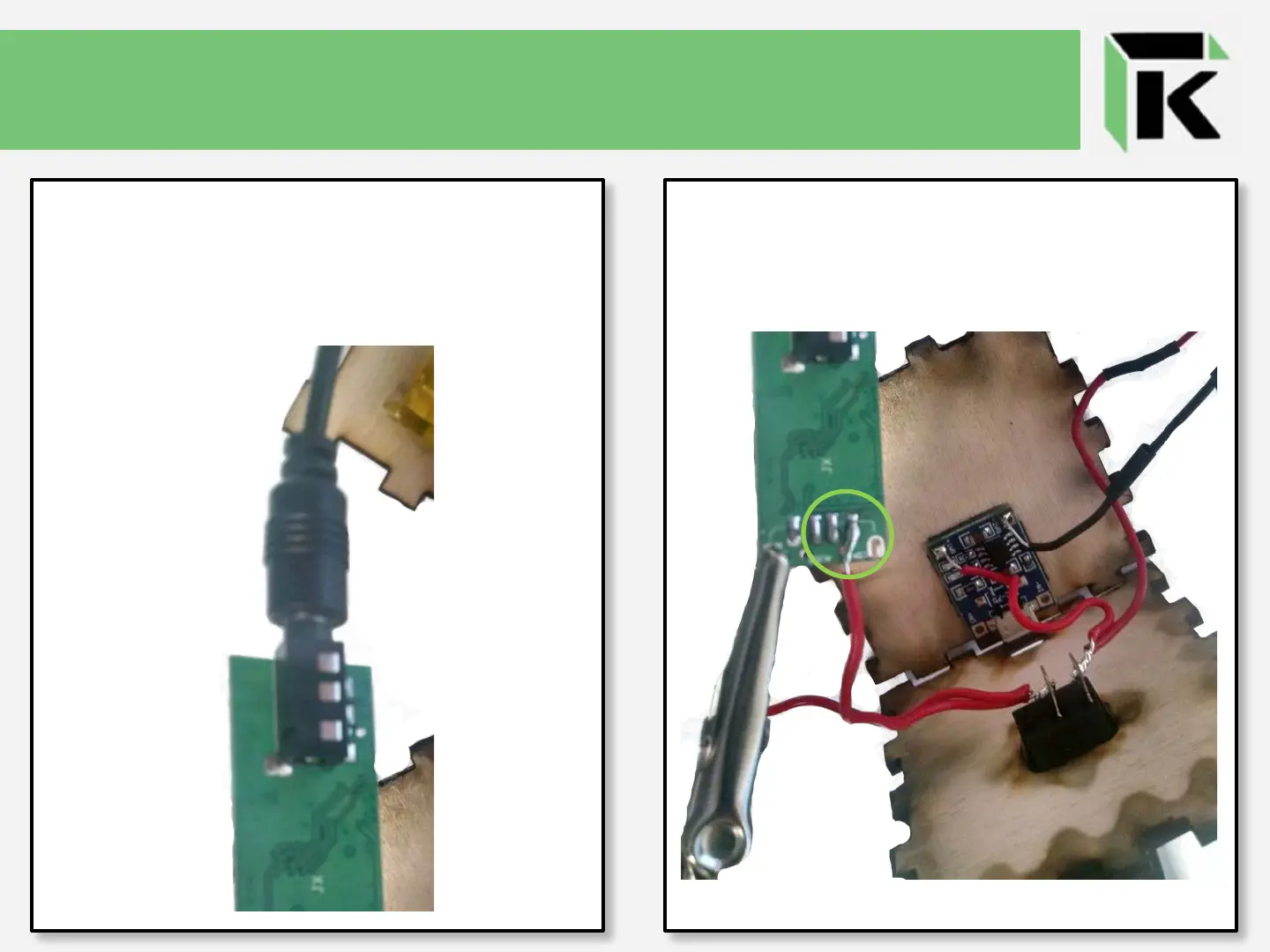

Solder 1 red switch wire (from other pin)
to the bluetooth adapter as shown.
Insert audio cable into jack on bluetooth
adapter (green). Cut the audio cable to
expose 3 wires (red, blue, yellow) which
you will solder to the red amplifier board.
Bluetooth Speaker Kit Instructions V.1
