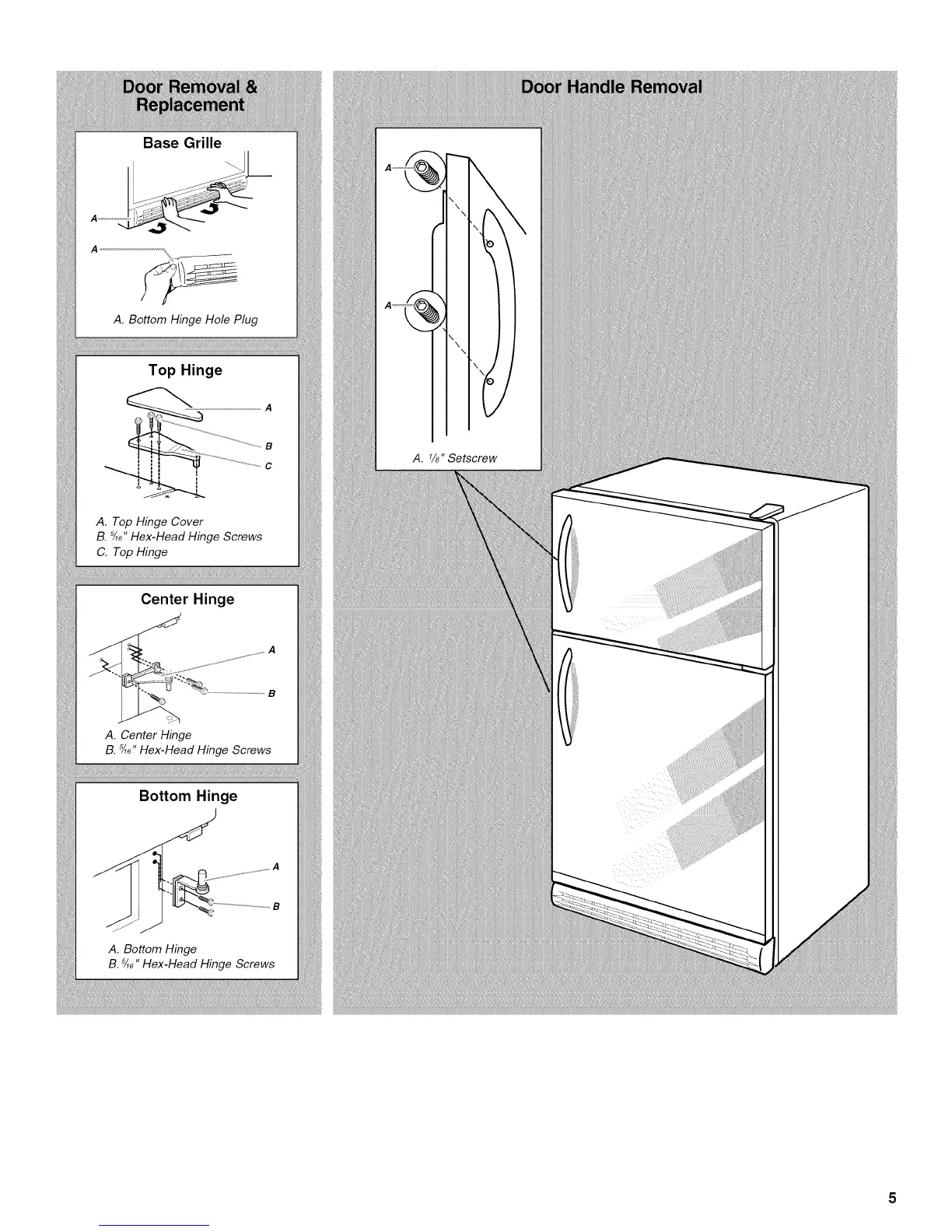

Base Grille
Ao
A. Bottom Hinge Hole Plug
Top Hinge
A. Top Hinge Cover
B. s/_6"Hex-Head Hinge Screws
C. Top Hinge
Center Hinge
A. Center Hinge
B. s/_6"Hex-Head Hinge Screws
Bottom Hinge
A. Bottom Hinge
B. s/_6" Hex-Head Hinge Screws
A. 1/8" Setscrew
