Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.

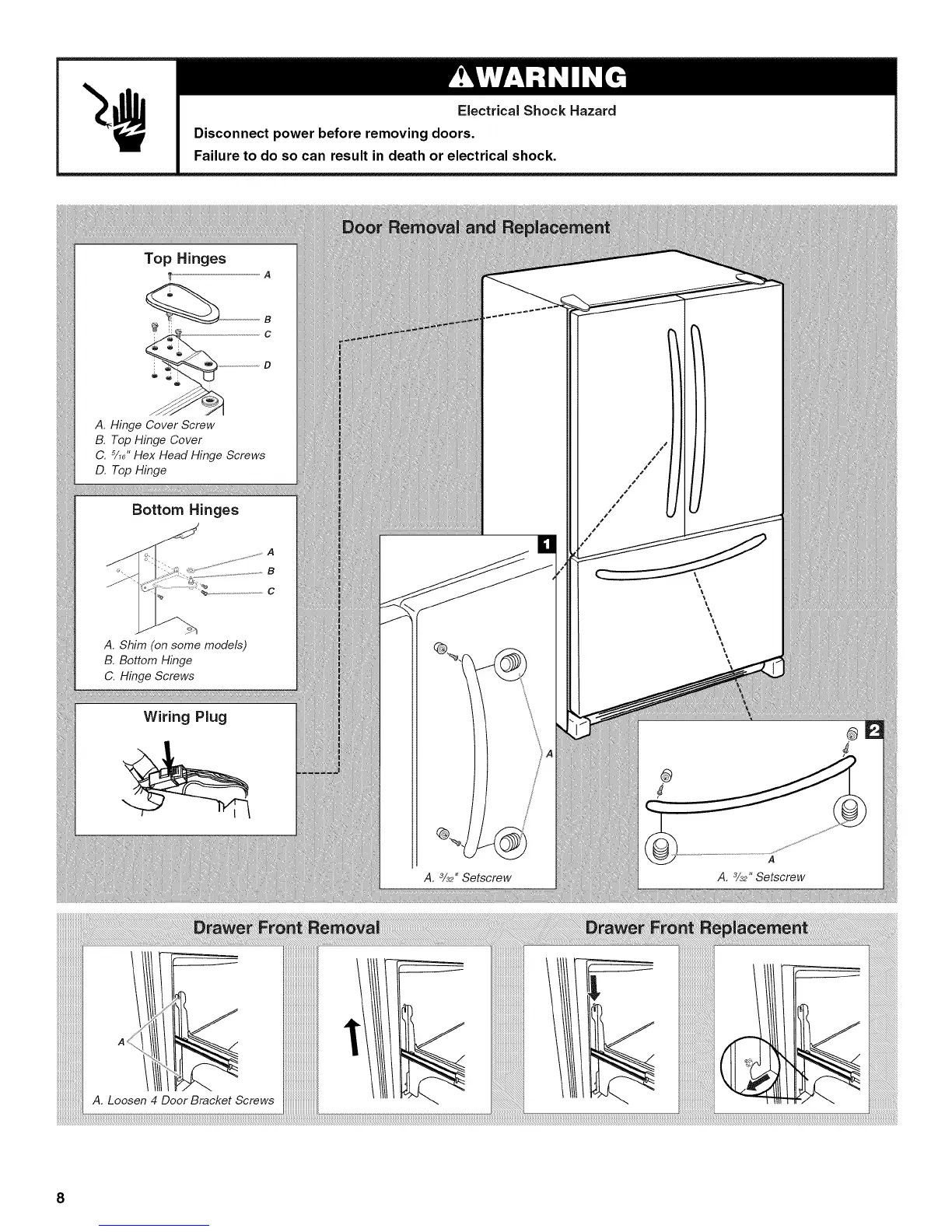

Top Hinges
1'
A, Hinge Cover Screw
B, Top Hinge Cover
C, 5/18"Hex Head Hinge Screws
D. Top Hinge
Bottom Hinges
A
B
C
A. Shim (on some models)
B, Bottom Hinge
C. Hinge Screws
Wiring Plug
A. 3/32"Setscrew
A
A, 3/32" Setscrew
@
A, Loosen 4 Door Bracket Screws
8
