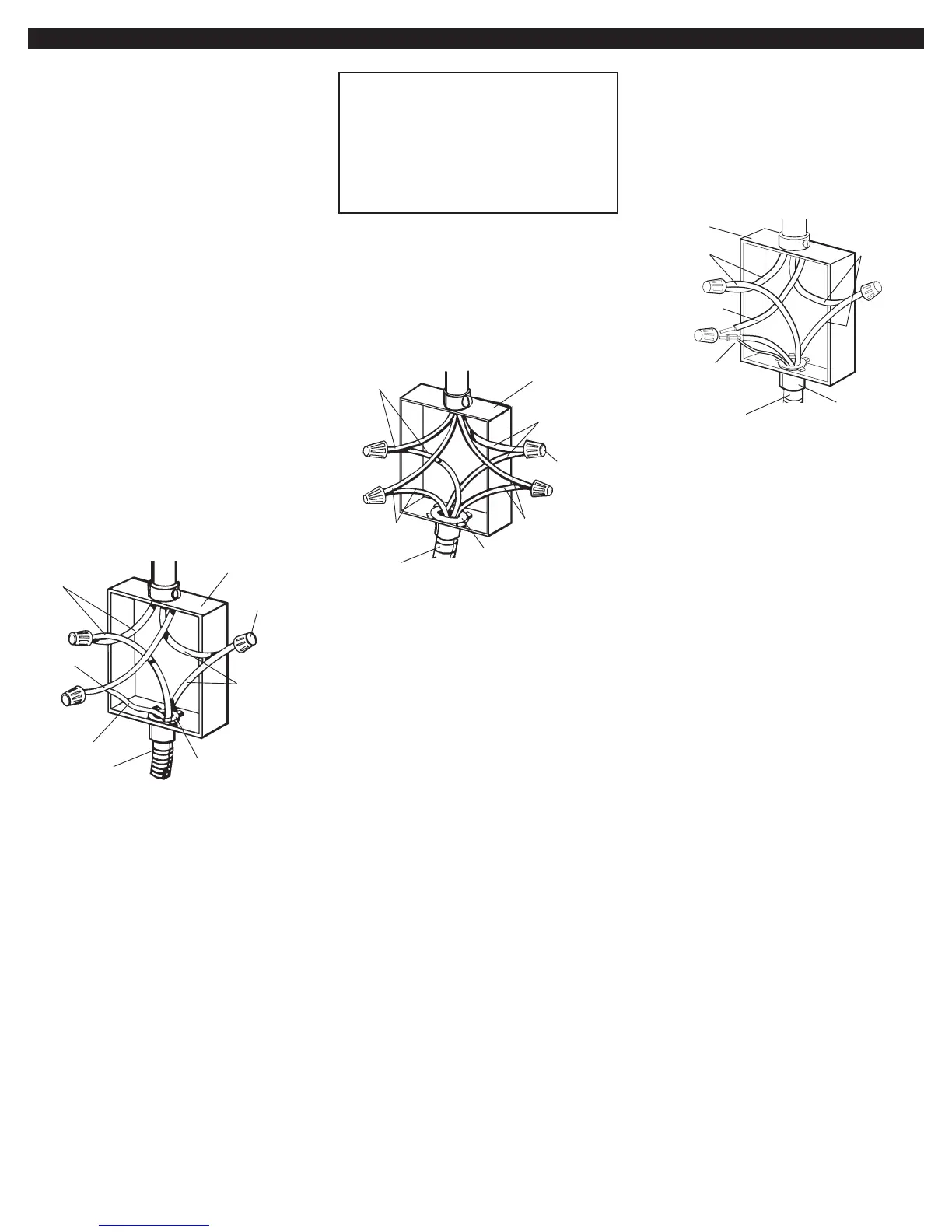

5
3-wire cable from power supply
junction box
black wires
twist-on
connectors
U.L.- or CSA- listed
conduit connector
3-wire cable
from cooktop
bare or
green wire
white wire
red wires
B.Where local codes permit
connecting the frame-ground
conductor to the neutral (white)
junction box wire. (Not used for
Canadian installations):
1. Follow steps 1 and 2 from “A” above.
2. Connect the bare cooktop wire with
the white wire; the two red wires
together; and the two black wires
together using twist-on connectors.
(See Figure 2.)
Grounded neutral
Figure 2
A.Where local codes Do Not
permit connecting the frame-ground
conductor to the neutral (white)
junction box wire: (Used for
Canadian installations):
junction box
4-wire cable from power supply
twist-on
connector
black wires
U.L.- or CSA- listed
conduit connector
4-wire cable from cooktop
bare or green
wires
white wires
red wires
Figure 3
Ungrounded neutral
For all cooktop models with
four-wire cable from the cooktop.
(These cooktops are
manufactured with white
[neutral] power supply wire and
a cabinet-connected bare ground
wire factory-crimped together.):
Figure 4
Grounded neutral
B.Where local codes permit
connecting the frame-ground
conductor to the neutral (white)
junction box wire. (Not used for
Canadian installations):
1. Follow steps 1 and 2 from “A” above.
2. Connect the two black wires
together; the two red wires together;
and the factory-crimped bare and
white cooktop cable wires to the
white (neutral) wire in the junction
box using twist-on connectors. (See
Figure 4.)
junction
box
red
wires
white
wire
white and bare
grounding oven cable
wires — factory
crimped
3-wire cable from
power supply
black
wires
4-wire cable from cooktop
U.L.- or CSA-
listed conduit
connector
1. Disconnect power supply.
2. Connect the flexible, armored cable
from the cooktop to the junction box
using a U.L.- or C.S.A.-listed conduit
connector. Tighten screws on conduit
connector.
3. Connect the two black wires
together; then connect the two red
wires together using twist-on
connectors. (See Figure 3.)
4. Separate the factory-crimped bare
and white cooktop cable wires.
5. Connect the two white wires together
using twist-on connectors.
6. Connect the bare ground wire from
the cooktop cable to the grounded
wire in the junction box or other
grounded connector using twist-on
connector. (See Figure 3.)
Do Not connect bare ground wire
to neutral (white) wire in junction
box.
C.
Where local codes Do Not
permit connecting the frame-ground
conductor to the neutral (white)
junction box wire:
1. Follow steps 1 and 2 from “A” above.
2. Connect the two black wires together
and the two red wires together.
3. Separate the factory-crimped bare
and white cooktop cable wires.
4. Connect the two white wires together
using twist-on connectors.
5. Connect the bare ground wire from
the cooktop cable to a grounded wire
in the junction box or other grounded
connector using twist-on connector.
(See Figure 3.)
Do Not connect bare ground wire
to neutral (white) wire in junction
box.
2. Connect the flexible, armored cable
from the cooktop to the junction box
using a U.L.- or CSA-listed conduit
connector. Tighten screws on conduit
connector.
3. Connect the two black wires
together; then connect the two red
wires together using twist-on
connector. (See Figure 1.)
4. Connect the green or bare ground
wire from the cooktop cable to the
grounded wire in the junction box or
other grounded connector using
twist-on connector.
5. Put a twist-on connector on end of
white wire. Do Not connect bare
ground wire to neutral (white) wire
in junction box.
