KitchenAid KODE500ESS Installation Instructions

16
Install Deflector Kit

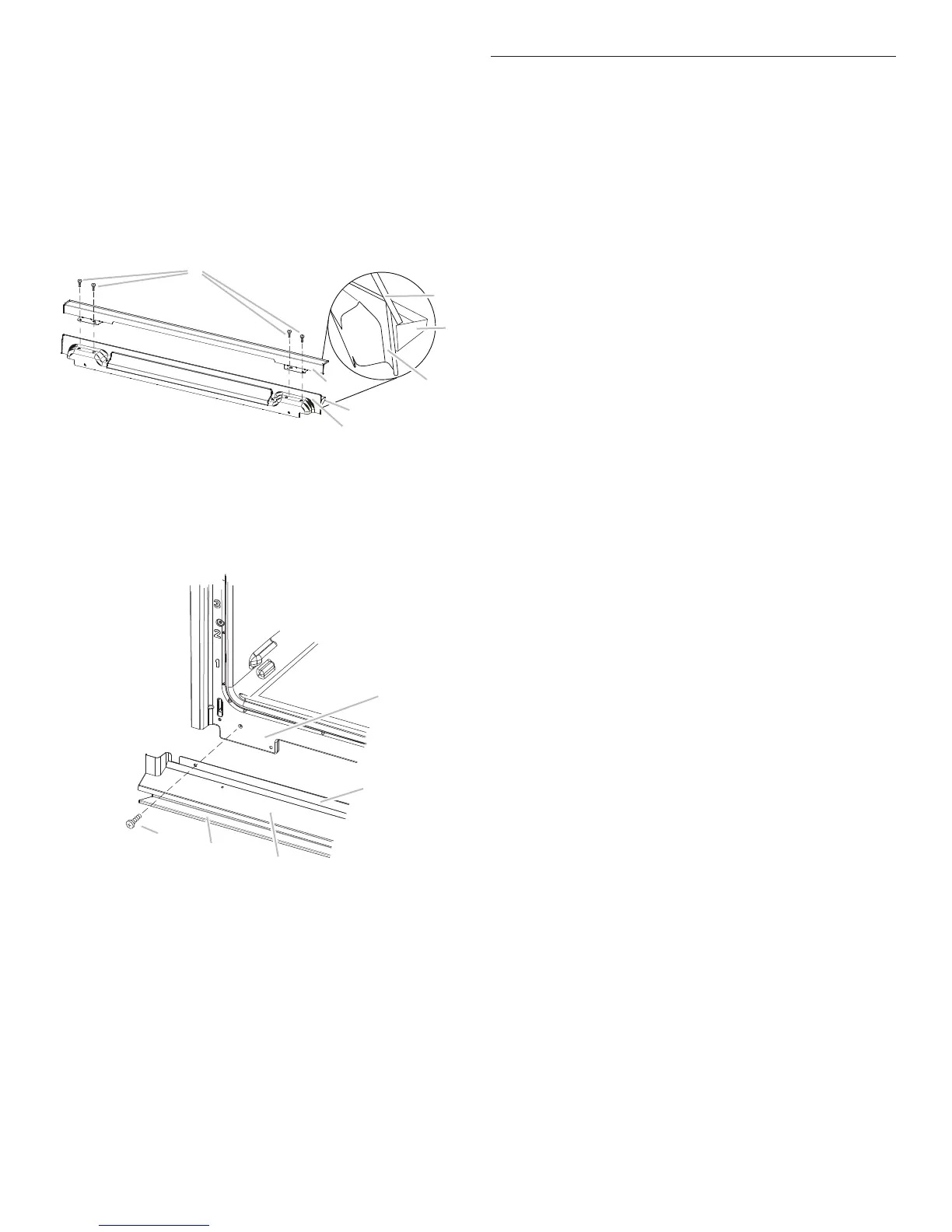

1. Flex the upper vent piece (C) away from the lower vent piece
(D) to slide the warming drawer deflector (B) between them.
Some force may be required to flex the upper vent trim (C)
away from the lower vent trim (D). Some force may also be
required to flex the warming drawer deflector (B) and slide it
into position. Make sure screw holes are properly aligned
between the two pieces. See the following illustration.
2. Install the warming drawer deflector (B) to the lower vent
piece (D) using two #8-18 x
¹⁄₄" screws on each side.
NOTE: On 27" (68.6 cm) models, only one #8-18 x ¼" screw
is used on each side.
3. Align vent tab (B) with oven frame (A) as shown in the
following illustration.
4. Using one #8-18 x ³⁄₈" screw (E) on each side of the vent tab
(B), fasten the vent securely to the oven.
Complete Installation
1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For oven use and cleaning, read the Use and Care Guide.
Check Operation of Single and Double Ovens
1. Turn on power.
2. At first use, set up the clock and any other preferences if
available. For more information, read the Use and Care
Guide.
3. Press BROIL on single oven models.
NOTE: Press UPPER BROIL or LOWER BROIL on double
oven models.
4. Set the temperature.
5. Press START.
If Oven(s) Does Not Operate, Check the Following:
■ Household fuse is intact and tight; or circuit breaker has
not tripped.
■ Electrical supply is connected.
■ See “Troubleshooting” section in the Use and Care Guide.
6. When oven has been on for 5 minutes, feel for heat.
If you do not feel heat or if an error message appears in the
display, turn off the oven and contact a qualified technician.
7. Press UPPER CANCEL/LOWER CANCEL on double ovens,
or press CANCEL on single ovens.
If You Need Assistance or Service:
Please reference the “Warranty” section of the Use and Care
Guide.
A. #8-18 x ¹⁄₄ " screws
B. Warming drawer deflector
C. Upper vent piece
D. Lower vent piece
A. Oven frame
B. Vent tab
C. Oven vent
D. Warming drawer deflector
E. #8-18 x
³⁄₈ " screw
D
B
A
C
B
D
C
A
C
D
B
E

KitchenAid KODE500ESS Specifications

General

Type	Double Oven
Fuel Type	Electric
Convection	Yes
Self-Cleaning	Yes
Control Type	Touchscreen
Color	Stainless Steel
Voltage	240 V
Brand	KitchenAid
Model	KODE500ESS
Installation Type	Built-In
Number of Ovens	2
Upper Oven Capacity	5.0 cu. ft.
Lower Oven Capacity	5.0 cu. ft.
Amperage	40 A
Warranty	1 Year Limited
Total Capacity	10.0 cu. ft.
