5

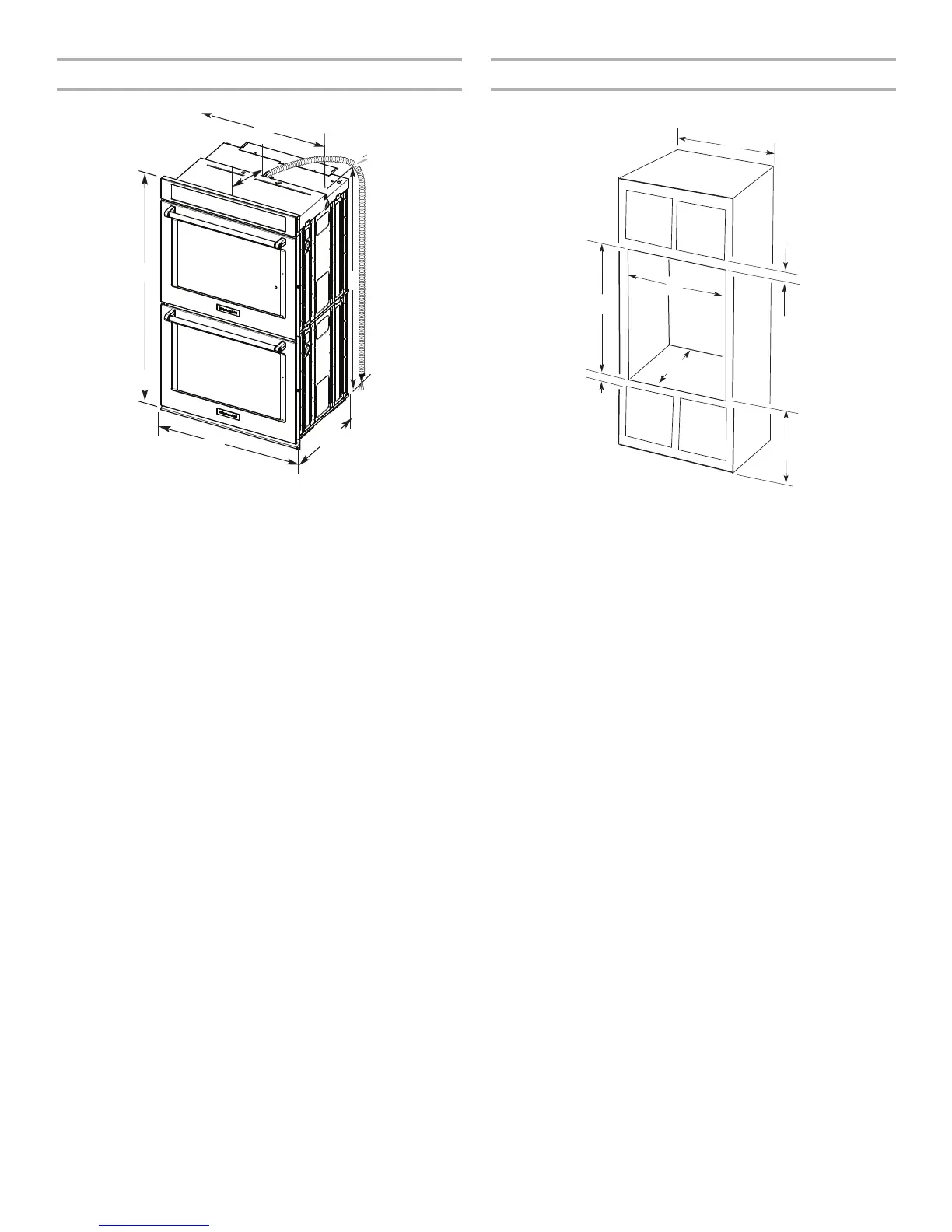

Product Dimensions - Double Ovens Cabinet Dimensions - Double Ovens
Double Ovens Installed in Cabinet
*NOTE: The cutout height can be between 48⁷⁄₈" and 52³⁄₁₆"
(124.1 cm and 132.6 cm) for double ovens.
27" (68.6 cm) models
A. 51
³⁄₁₆
" (130.0 cm) max. overall
height
B. 25
⁷⁄₁₆
" (64.6 cm) max. recessed
width
C. 48
¹³⁄₁₆
" (124.0 cm) recessed
height
D. 23
¹⁄₄
" (59.1 cm) max. recessed
depth
E. 27" (68.6 cm) overall width
F. 12" (30.5 cm) from back of
control panel to start of strain
relief
G. 66" (167.6 cm) flexible conduit
length
30" (76.2 cm) models
A. 51
³⁄₁₆
" (130.0 cm) max. overall
height
B. 28
⁷⁄₁₆
" (72.2 cm) max. recessed
width
C. 48
¹³⁄₁₆
" (124.0 cm) recessed
height
D. 23
¹⁄₄
" (59.1 cm) max. recessed
depth
E. 30" (76.2 cm) overall width
F. 12" (30.5 cm) from back of
control panel to start of strain
relief
G. 66" (167.6 cm) flexible conduit
length
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 14
³⁄₄
" (37.5 cm) bottom of
cutout to floor is
recommended.
4"-14
³⁄₄
" (10.2-37.5 cm)
bottom of cutout to floor is
acceptable.
D. 25
¹⁄₂
" (64.8 cm) cutout width
E. 1
¹⁄₂
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 50
¹⁄₄
" (127.6 cm)*
recommended cutout height
G. 24" (60.7 cm) cutout depth
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 14
³⁄₄
" (37.5 cm) bottom of
cutout to floor is
recommended.
4"-14
³⁄₄
" (10.2-37.5 cm) bottom
of cutout to floor is acceptable.
D. 28
¹⁄₂
" (72.4 cm) cutout width
E. 1
¹⁄₂
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 50
¹⁄₄
" (127.6 cm)*
recommended cutout height
G. 24" (60.7 cm) cutout depth
