KitchenAid KODE500ESS Installation Instructions

9
Cutout Height is Between 26¹⁵⁄₁₆" and 27¹¹⁄₁₆" (68.4 cm and
70.3 cm)
1. Using 2 or more people, place the oven on its back on a
covered surface.
2. Remove the foot from the right front spacer by removing the
#8-18 x ³⁄₈" screw.
NOTE: Do not remove the spacer.
3. In the same manner, remove the feet on the right rear, left
front, and left rear of the oven.
4. Using 2 or more people, place the oven in its upright position.
5. Go to the “Make Electrical Connection” section.
Cutout Height is Between 28¹¹⁄₁₆" and 29⁷⁄₁₆" (72.8 cm and
74.8 cm)
1. Using 2 or more people, place the oven on its back on a
covered surface.
2. Remove the foot from the right front spacer by removing the
#8-18 x ³⁄₈" screw.
NOTE: Do not remove the spacer.
3. Rotate the foot 90° so the short side of the foot is positioned
toward the top of the oven.
4. Reinstall the foot to the spacer using the #8-18 x ³⁄₈" screw
previously removed.
5. In the same manner, remove, rotate and reinstall the feet on
the right rear, left front, and left rear of the oven.

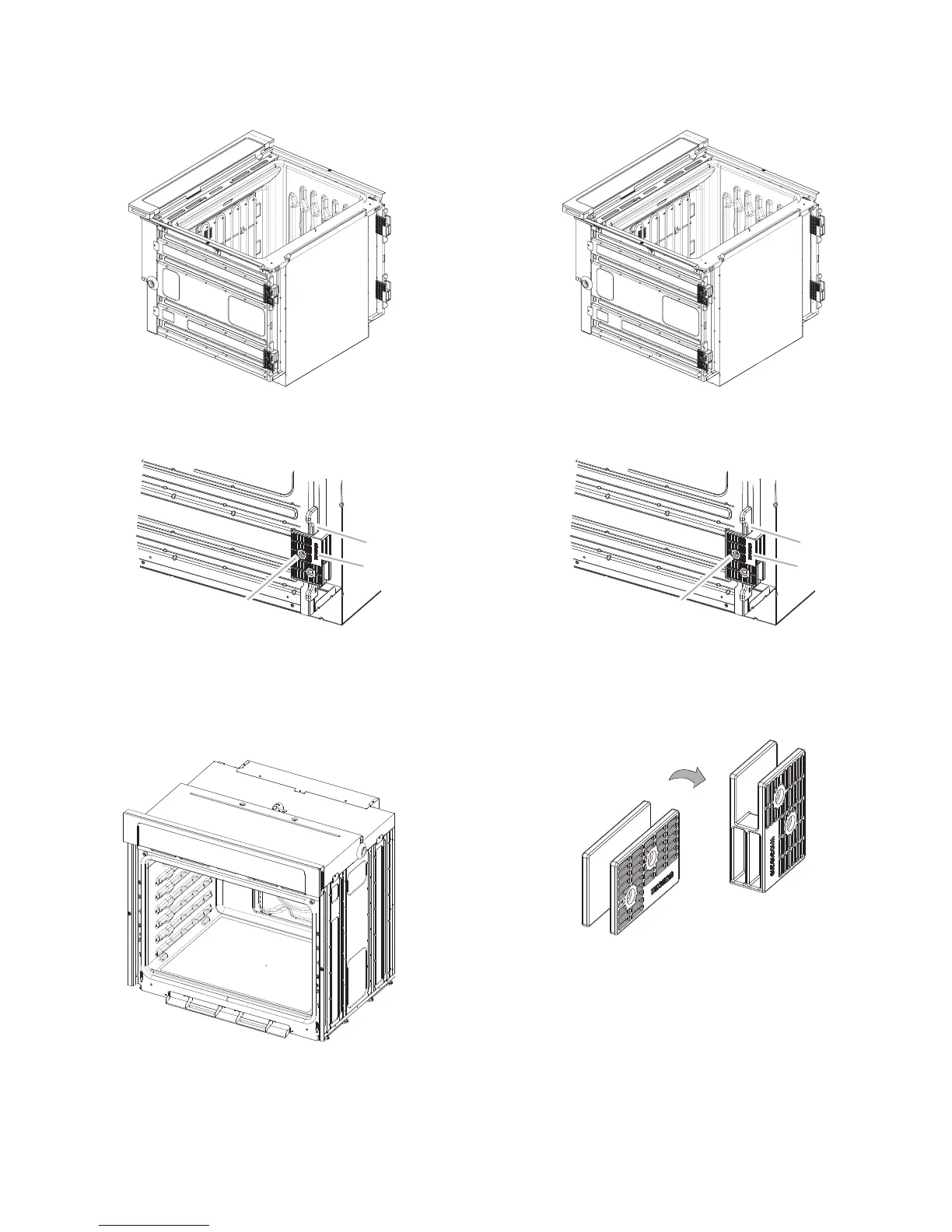

A. Spacer
B. Foot
C. #8-18 x
³⁄₈ " screw
A
B
C
A. Spacer
B. Foot
C. #8-18 x ³⁄₈ " screw
A
B
C

KitchenAid KODE500ESS Specifications

General

Type	Double Oven
Fuel Type	Electric
Convection	Yes
Self-Cleaning	Yes
Control Type	Touchscreen
Color	Stainless Steel
Voltage	240 V
Brand	KitchenAid
Model	KODE500ESS
Installation Type	Built-In
Number of Ovens	2
Upper Oven Capacity	5.0 cu. ft.
Lower Oven Capacity	5.0 cu. ft.
Amperage	40 A
Warranty	1 Year Limited
Total Capacity	10.0 cu. ft.
