5

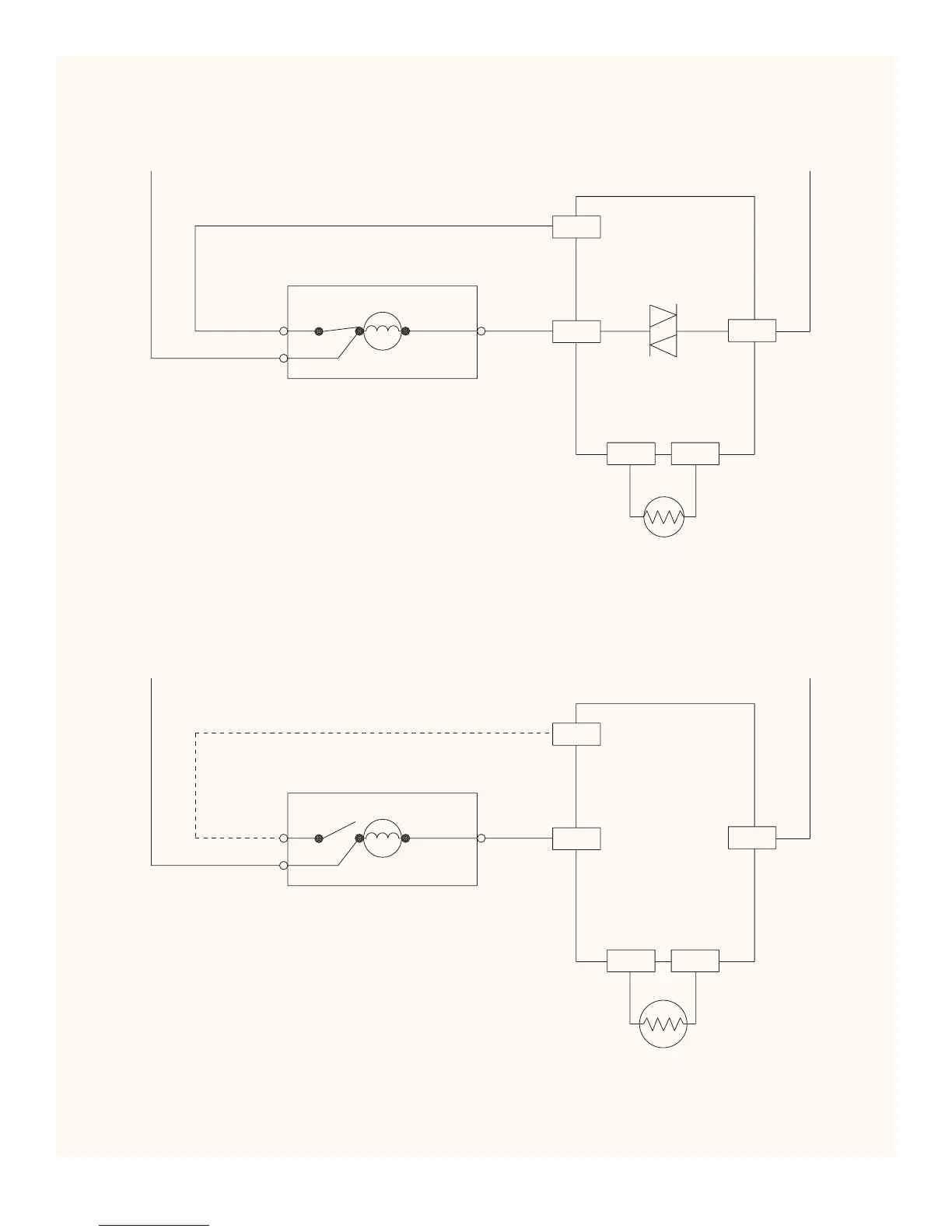

When the refrigerator thermistor reaches the cutout temperature, the control energizes the baffle motor to close
the door.
Refrigerator thermistor satisfied - Baffle closing
When the baffle is fully closed, the switch opens interrupting power to P1-1. This signals the control to stop the baffle
motor with the door fully closed.
Refrigerator thermistor satisfied - Baffle closed
OR/BK
Y/R
BK
AIR BAFFLE ASSEMBLY
4
5
6
P1-1
P2-1
P4-3 P4-4
P1-3
ELECTRONIC CONTROL
WH
L1
N
MOTOR OFF AND DOOR FULLY CLOSED
OR/BK
Y/R
BK
AIR BAFFLE ASSEMBLY
4
5
6
P1-1
P2-1
P4-3 P4-4
P1-3
ELECTRONIC CONTROL
BAFFLE
TRIAC
WH
L1
N
MOTOR RUNNING AND DOOR CLOSING
