KitchenAid KTRC22EMBL01 - Page 14

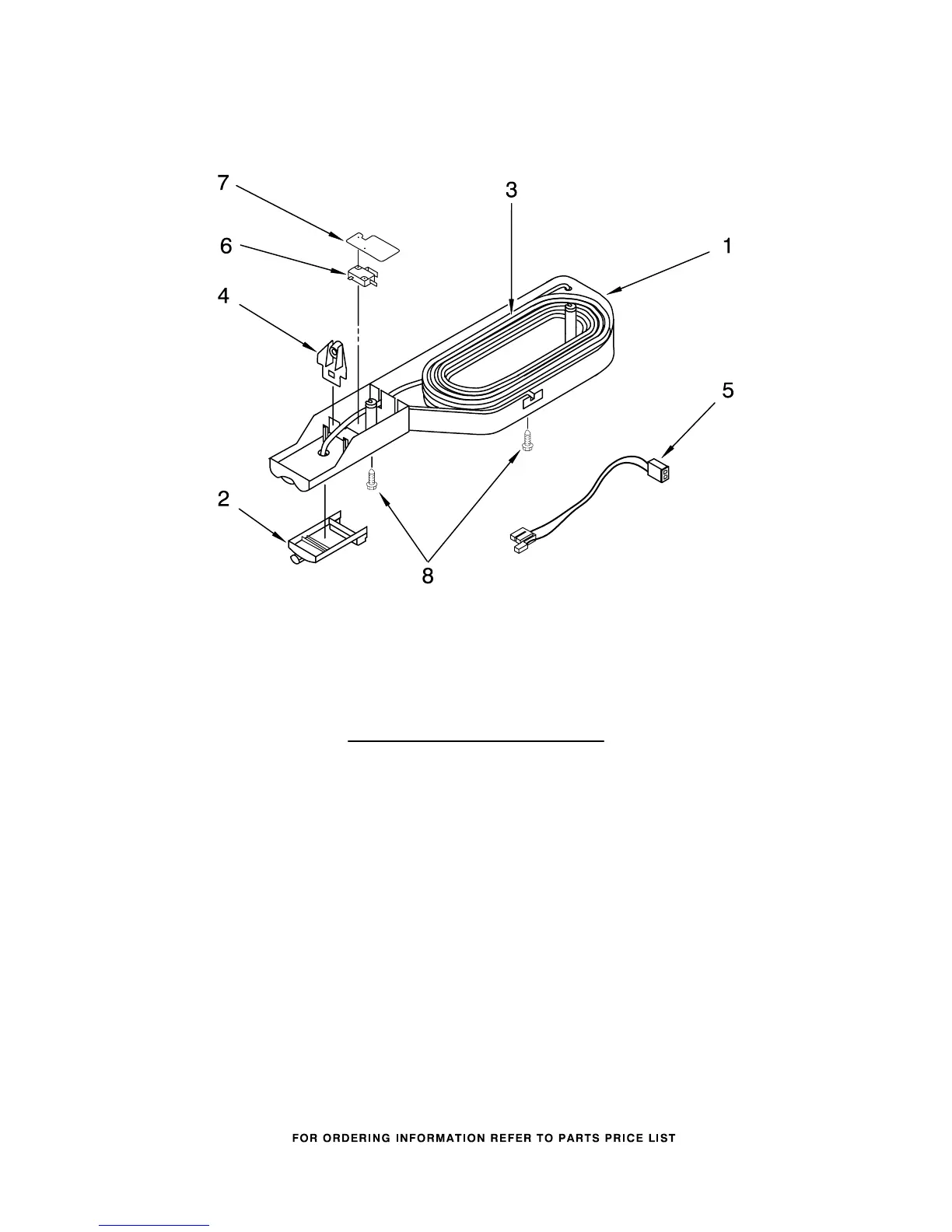

WATER DISPENSER PARTS
14
For Models: KTRC22EMWH01,KTRC22EMBT01, KTRC22EMBL01, KTRC22EMSS01
(White) (Biscuit) (Black) (Stainless Steel)
8198893
Illus. Part
No. No. DESCRIPTION
1 2210500 Housing, Dispenser
2 2210567 Button, Dispenser
3 2210513 Reservoir, Tube
4 2210523 Flange, Tube
5 2187291 Wire Assembly
6 2162361 Switch
7 2210547 Shield, Switch
8 489415 Screw
8−18 x 1 1/4 (2)
