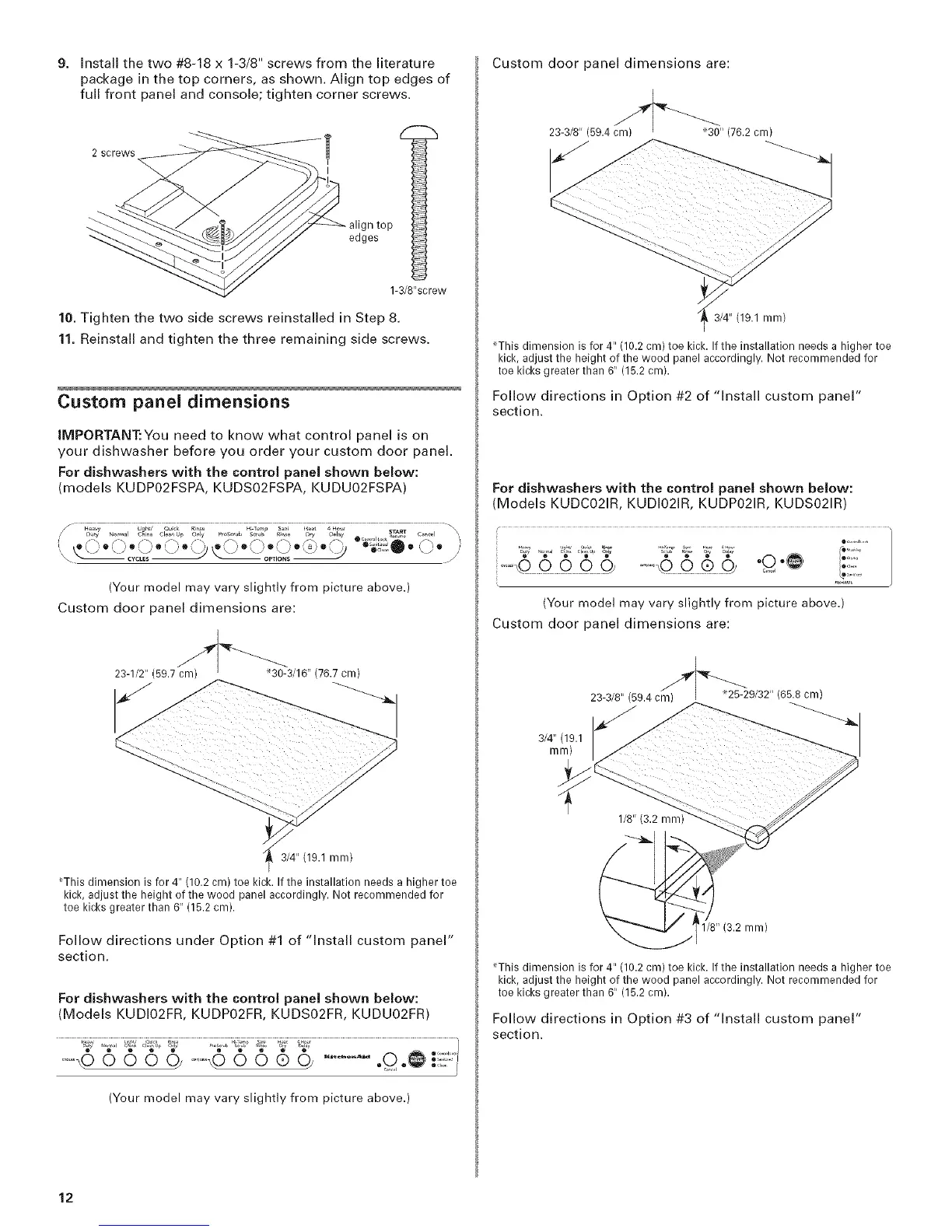

9. Install the two #8-18 x 1-3/8" screws from the literature
package in the top corners, as shown. Align top edges of
full front panel and console; tighten corner screws.
2 screws
°l
I
top
edges
1-3/8"screw
10. Tighten the two side screws reinstalled in Step 8.
11. Reinstall and tighten the three remaining side screws.
Custom panel dimensions
IMPORTANT:You need to know what control panel is on
your dishwasher before you order your custom door panel.
For dishwashers with the control panel shown below:
models KUDP02FSPA, KUDS02FSPA, KUDU02FSPA)
(Your model may vary slightly from picture above.)
Custom door panel dimensions are:
_ ,, , - ,, ,23 1/2 (597 cm) _30 3/16 (767 cm)
3/4" (19.1 mm)
*This dimension is for 4" (10.2 cm) toe kick. If the installation needs a higher toe
kick, adjust the height of the wood panel accordingly. Not recommended for
toe kicks greater than 6" (15.2 cm).
Follow directions under Option #1 of "install custom panel"
section.
For dishwashers with the control panel shown below:
(Models KUDIO2FR, KUDPO2FR, KUDSO2FR, KUDUO2FR)
(Your model may vary slightly from picture above.)
Custom door panel dimensions are:
23-3/8" (59.4 cm) '30" (76.2 cm)
_ 3/4" (19.1 ram)
_This dimension is for 4" (10.2 cm) toe kick. If the installation needs a higher toe
kick, adjust the height of the wood panel accordingly. Not recommended for
toe kicks greater than 6" (15.2 cm).
Follow directions in Option #2 of "Install custom panel"
section.
For dishwashers with the control panel shown below:
(Models KUDC021R, KUDI021R, KUDP021R, KUDS021R)
...... .e i!il
(Your model may vary slightly from picture above.)
Custom door panel dimensions are:
1/8" (3.2 mm)
_This dimension is for 4" (10.2 cm) toe kick. If the installation needs a higher toe
kick, adjust the height of the wood panel accordingly. Not recommended for
toe kicks greater than 6" (15.2 cm).
Follow directions in Option #3 of "Install custom panel"
section.
12
