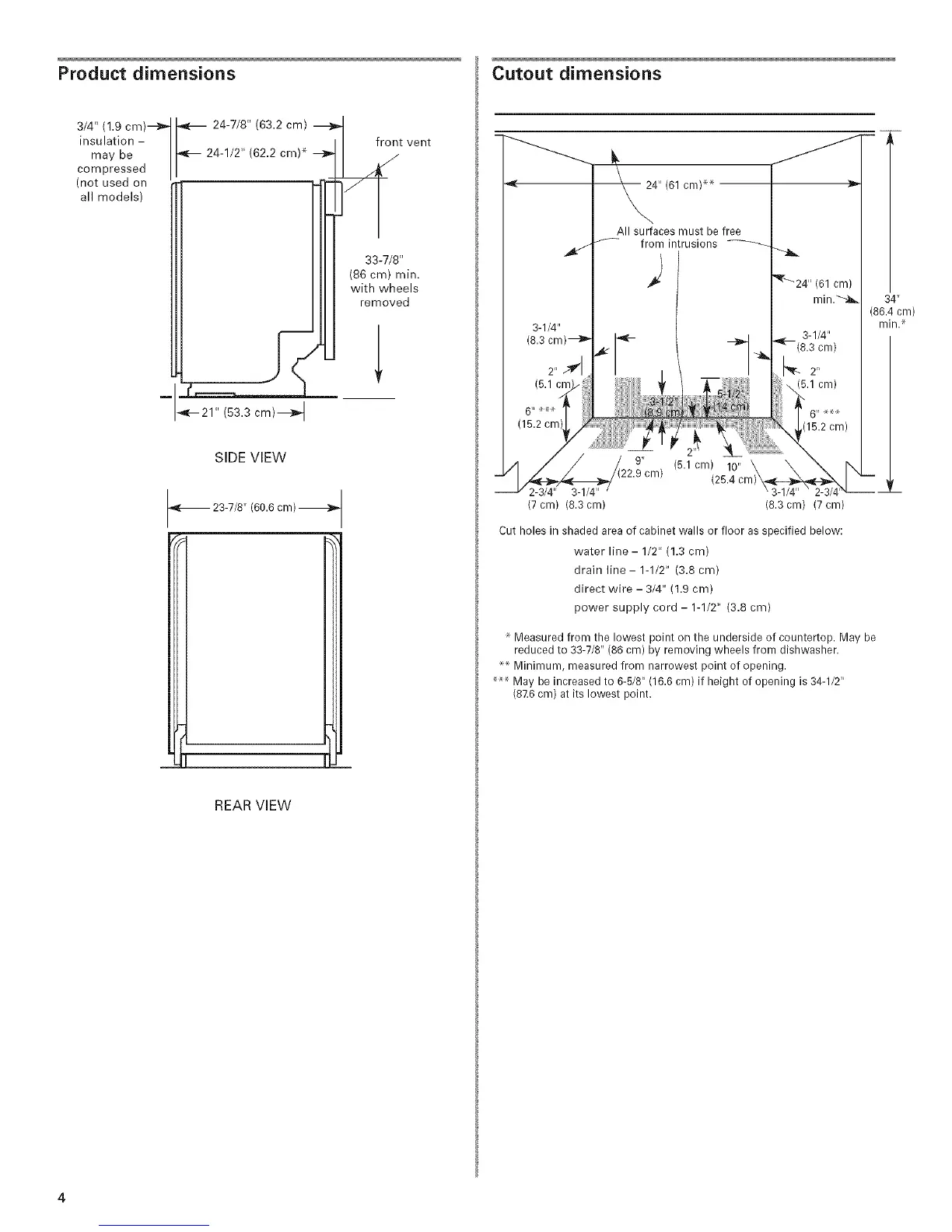

Product dimensions
3/4" (1.9 cm)--_-
insu lation -
may be
compressed
(not used on
all models)
_-_ 24-7/8" (63.2 cm)
| front vent
=_--- 24-1/2" (62.2 cm)* _ _(___/
_--- 21" (53.3 cm)_,J
SIDE VIEW
REAR VIEW
Cutout dimensions
All surfaces must be free
from intrusions
r
3-1/4"
(8.3cm)
2"
(5.1cm)
_(15.2 cm)
(5.1 cm) 10"
2-3/4" 3-1/4"
(7 cm) (8.3 cm) (8.3 cm) (7 cm)
Cut holes in shaded area of cabinet walls or floor as specified below:
water line- 1/2" (1.3 cm)
drain line- 1-1/2" (3.8 cm)
direct wire - 3/4" (1.9 cm)
power supply cord- 1-1/2" (3.8 cm)
Measured from the lowest point on the underside of countertop. May be
reduced to 33-7/6" (86 cm) by removing wheels from dishwasher.
r'* Minimum, measured from narrowest point of opening.
_ May be increased to 6-5/8" (16.6cm) if height of opening is 34-1/2"
(87.6cm) at its lowest point,
34"
(86.4 cm)
rain. x
