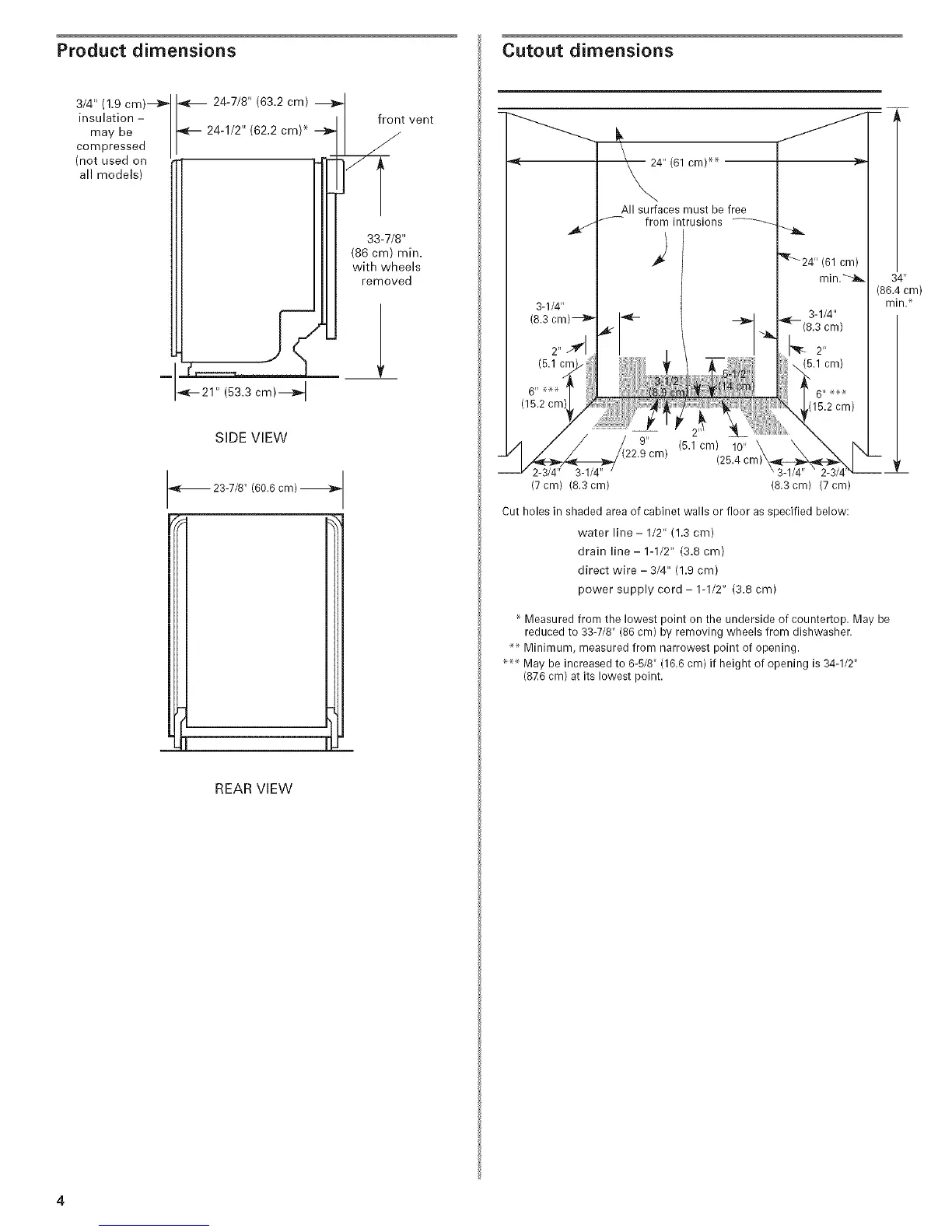

Product dimensions
3/4" (1.9 cm)--_"
insu lation -
may be
compressed
(not used on
all models)
•_ 24-7/8" (63.2 cm) _t
/ front vent
q_--- 24-1/2" (62.2 cm)* _ _
_--- 21" (53.3 cm)_ I
SIDE VIEW
REAR VIEW
Cutout dimensions
,,2,4" (61 cm)**
All surfaces must be free
/_-- from intrusions
'_-24" (61 cm)
mi n. ""J_
(5.1 cm) 10"
(25.4
3-1/4"
(7 cm) (8.9 cm) (8.3 cm) (7 cm)
Cut holes in shaded area of cabinet walls or floor as specified below:
water line- 1/2" (1.3 cm)
drain line- 1-1/2" (3.8 cm)
direct wire - 3/4" (1.9 cm)
power supply cord- 1-1/2" (3.8 cm)
m
34"
(86.4 cm)
rnin. _
r' Measured from the lowest point on the underside of countertop. May be
reduced to 33-7/8" (86 cm) by removing wheels from dishwasher.
_ Minimum, measured from narrowest point of opening.
r'_ May be increased to 6-5/8" (16.6 cm) if height of opening is 34-1/2"
(876 cm) at its lowest point.
