WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.

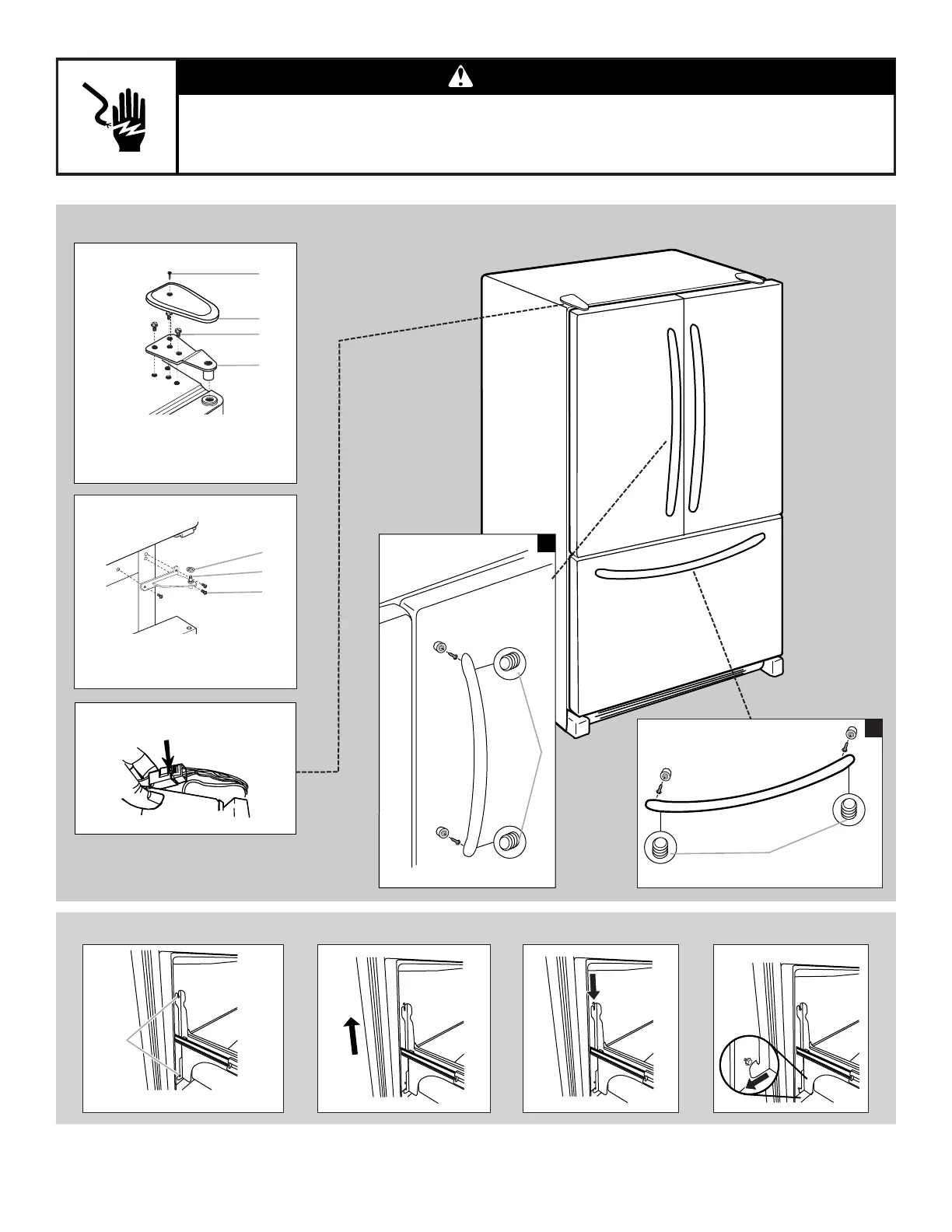

Door Removal & Replacement
Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C.
5
/ 16 " Hex-Head Hinge Screws
D. Top Hinge
B
A
C
D
A. Shim (on some models)
C. Hinge Screws
B. Bottom Hinge
Bottom Hinges
Wiring Plug
A
B
C
1
A.
3
/ 32 " Set Screw
A.
3
/ 32 " Set Screw
2
A
A
Drawer Front Removal
A. Loosen 4 Door Bracket Screws
A
Drawer Front Replacement
