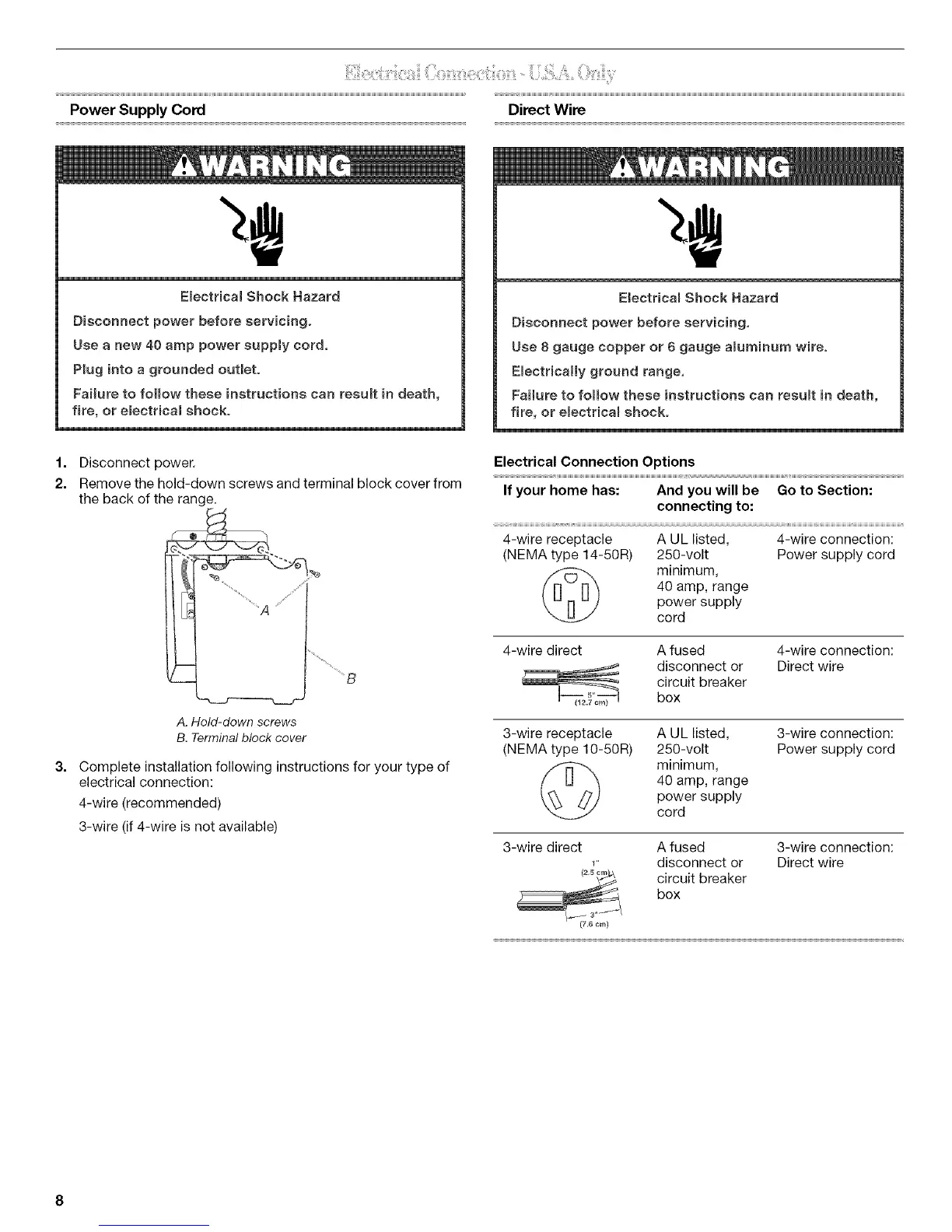

Power Supply Cord Direct Wire
Emectrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power euppmy cord.
PJug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or emectrical shock.
1. Disconnect power.
2. Remove the hold-down screws and terminal block cover from
the back of the range.
3=
A. Hold-down screws
B. Terminalblock cover
Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper or 6 gauge amuminum wire.
Emectrically ground range.
Failure to follow these instructions can resumt in death,
fire, or electricam shock.
Electrical Connection Options
If your home has: And you will be Go to Section:
connecting to:
4-wire receptacle
(NEMA type 14-50R)
A UL listed,
250-volt
minimum,
40 amp, range
power supply
cord
4-wire connection:
Power supply cord
4-wire direct A fused
disconnect or
circuit breaker
box
4-wire connection:
Direct wire
3-wire receptacle A UL listed,
(NEMA type 10-50R) 250-volt
_ minimum,
40 amp, range
power supply
cord
3-wire connection:
Power supply cord
3-wire direct A fused 3-wire connection:
_" disconnect or Direct wire
(2._ circuit breaker
box
