47
Assembling Combination with the Manual Trolley
1
■

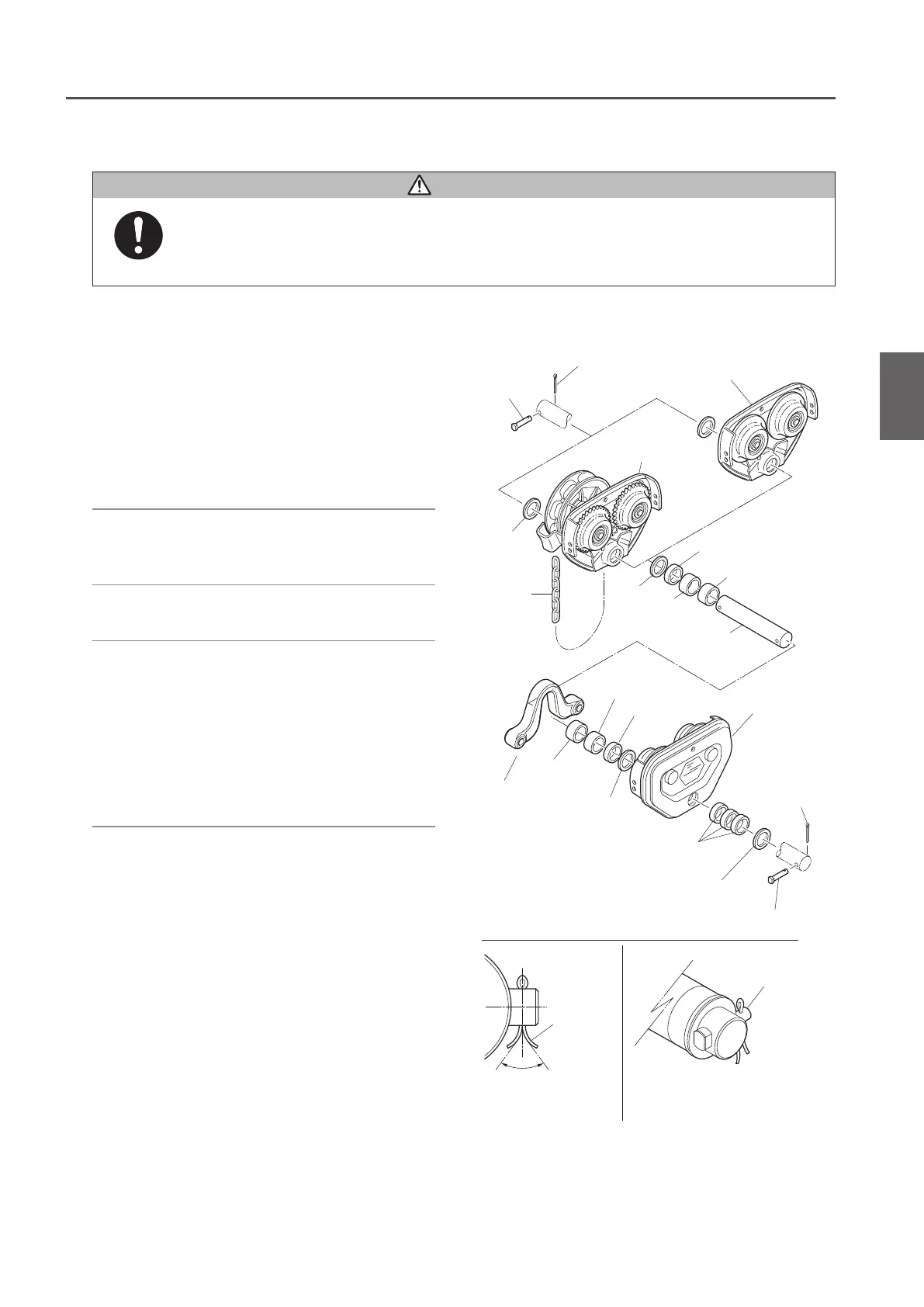

Combination of the Electric Chain Hoist and the Manual Trolley
●
125kg to 1t
1) After setting the Suspension Shaft with
Spacers, insert it into Frame G or Frame
S and fix it with a Shaft Stopper Pin and
a Split Pin.
•
Insert the Shaft Stopper Pin in the direction that
the split pin comes to the right when viewed
from the side of the Frame G or Frame S.
•
Open the both ends of the Split Pin by 70˚ or more.
2) Set the Suspension Shaft with a Thick
Spacer, Fixing Spacer, etc.
3) Passes it through the string the
Suspension Eye.
4) Set the Suspension Shaft with another
Thick Spacer and Fixing Spacer. Then
insert the Suspension Shaft into the
Frame SN.
•
Adjust the Spacers in accordance with the
rail width. (Refer to “Checking the Number
of the Assembled Adjusting Spacers and
Their Positions" (P43 to 45) for the number of
Spacers.)
5)
Set the Suspension Shaft with a Thick Spacer.
Fix it with a Shaft Stopper Pin and a split pin.
•
Insert the Shaft Stopper Pin in the direction that
the split pin comes to the right when viewed
from the front side of the Frame SN.
•
Open the both ends of the Split Pin by 70˚ or
more.
• Use new split pins. After insertion, bend the pin securely at its both ends.
Use of old split pins may result in death or serious injury due to drop.
Mandatory
DANGER
70° or more
Split pin
Split pin
Split pin
Shaft Stopper
Pin
Frame SN
Shaft Stopper Pin
Suspension
Shaft
Hand
Chain
Thin spacer
(t=3.2)
Thin spacer (t=3.2)
Frame G
Frame S
Shaft Stopper Pin
Fixing spacer
Thin spacer
Fixing spacer
Thin spacer
Thick spacer
Thick spacer
Thick spacer
Thick spacer L
Thick spacer L
Orientation of Shaft Stopper PinBending the split pin
Supension eye
To Next Page
