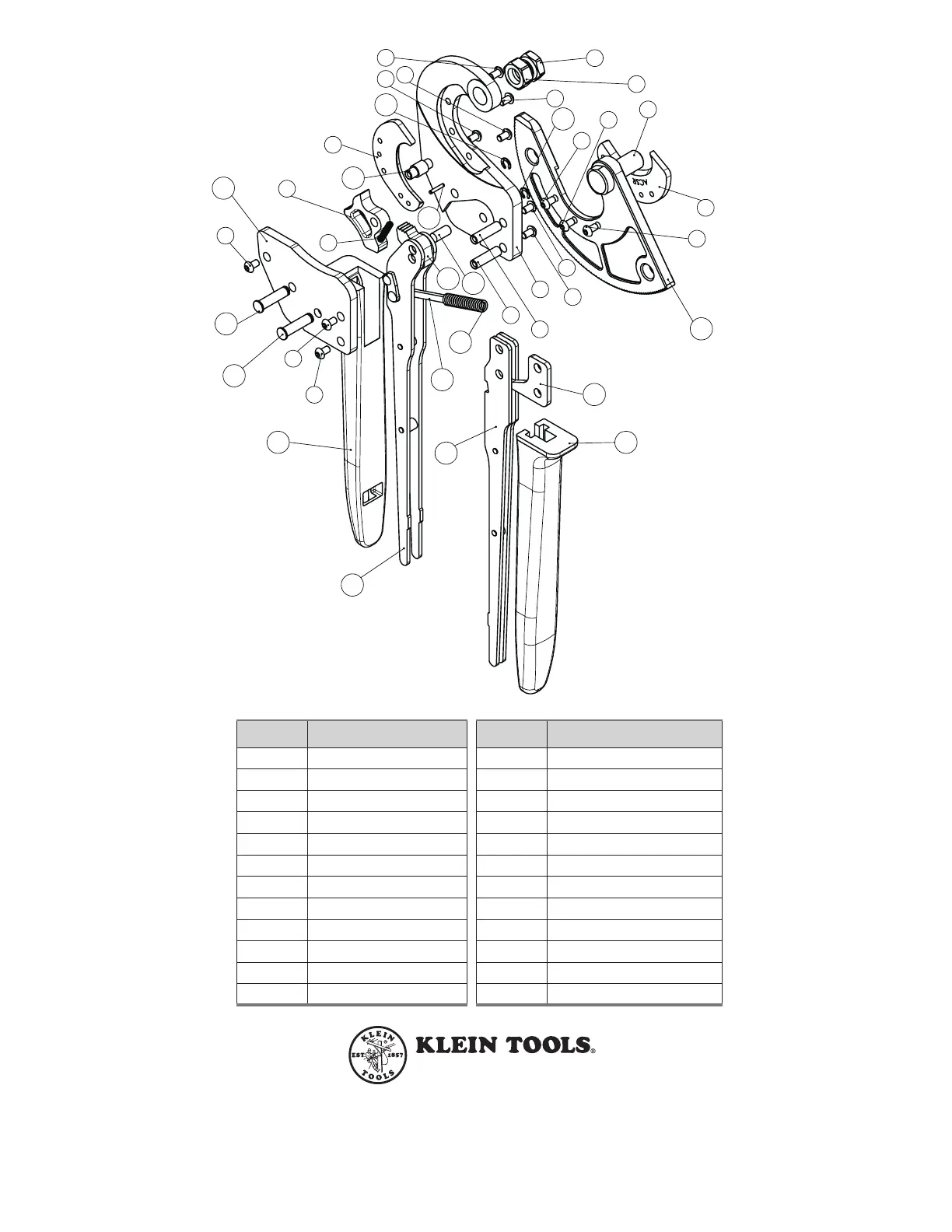

Illus. No Description
1 Fixed Blade
2 Insert Blade(s)
3 Hex screws
4 Stopper pawl
5 Ratchet spring
6 Bolt
7 Fastener
8 Adjusting nut for fastener
9 Nut for fastener
10 Spring Guide
11 Spring
12 Distance Plate
Illus. No Description
13 Distance Bolt
14 Grooved fastener - pawl
15 Cover plate
16 Grooved fastener - fixed blade
17 Fixed handle assembly
18 Ratchet pawl
19 Moveable handle assembly
20 Handle pivot pin
21 Moveable blade
22 Snap ring
23 Fixed handle grip
24 Moveable handle grip
