LFE CONNECTION
Connect RCA connector from LFE output on your amp/reciever to LFE
input on subwoofer.
LEFT/RIGHT PREAMP OUT
If there is no LFE output on your amp/receiver, you can use the left and
right preamp outputs to connect to the left and right inputs on your
subwoofer.
POWER SWITCH/AUTO/ON
The POWER ON switch near the bottom of the panel
supplies power to the sub amplifier. When
the AUTO/ON switch is in the AUTO
position, the subwoofer will automatically
turn on when it senses a signal. The sub-
woofer will automatically go into standby
mode after 15 minutes with no signal.
When this switch is in the ON position,
the subwoofer will remain on.
CROSSOVER
This control affects the upper frequency limit of the subwoofer. The
control range is 40-180 Hz, along with a disable (LFE) setting. The slope
of the low pass filter is 12 dB/octave. For connection to an A/V receiver,
the low pass should be set to LFE. For 2-channel applications, it should
be adjusted to blend with the bottom roll-off frequency of your loud-
speakers.
C A UTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
LEFT
OPTIONAL
SUB
OPTIONAL
SUB
OPTIONAL
SUB
SUB
RIGHT
CENTER
SURROUND
LEFT
SURROUND
RIGHT
NOTE: When cleaning your subwoofer, avoid the use of abrasives,
solvents, or harsh detergents. Windsor subwoofers have a long-lasting
vinyl finish that should only require dusting or cleaning with a dry cloth.
Gently use the brush attachment of your vacuum cleaner to remove any
dust or particles from the surfaces of your subwoofer.
WARRANTY
Our 5-year parts warranty begins from purchase date of the item (invoice
date). For warranty/service issues, please contact your place of purchase.
Please keep your original receipt. The warranty covers any production
and material defects of product. Warranty registration may be complet-
ed at klhaudio.com/warranty
The following is NOT COVERED by the warranty:
1. Accidents, misuse, poor maintenance, electrical overloads
such as lightning or voltage.
2. Repair must be performed by an authorized KLH dealer or service
center.
3. Incorrect installation of product.
4. Altered serial number.
5. Transportation costs for service call.
6. Purchase of KLH products from unauthorized reseller.
Replacement item cannot exceed the cost of the item under warranty.
The supplier is responsible for only repair or replacement.
PHASE CONTROL
This control delays the signal being processed through the amplifier. For
connection to an A/V receiver, it should be set to 0 degrees. For 2-chan-
nel systems, it should be adjusted to obtain optimal transition between
the loudspeakers and the subwoofer, and best sound stage

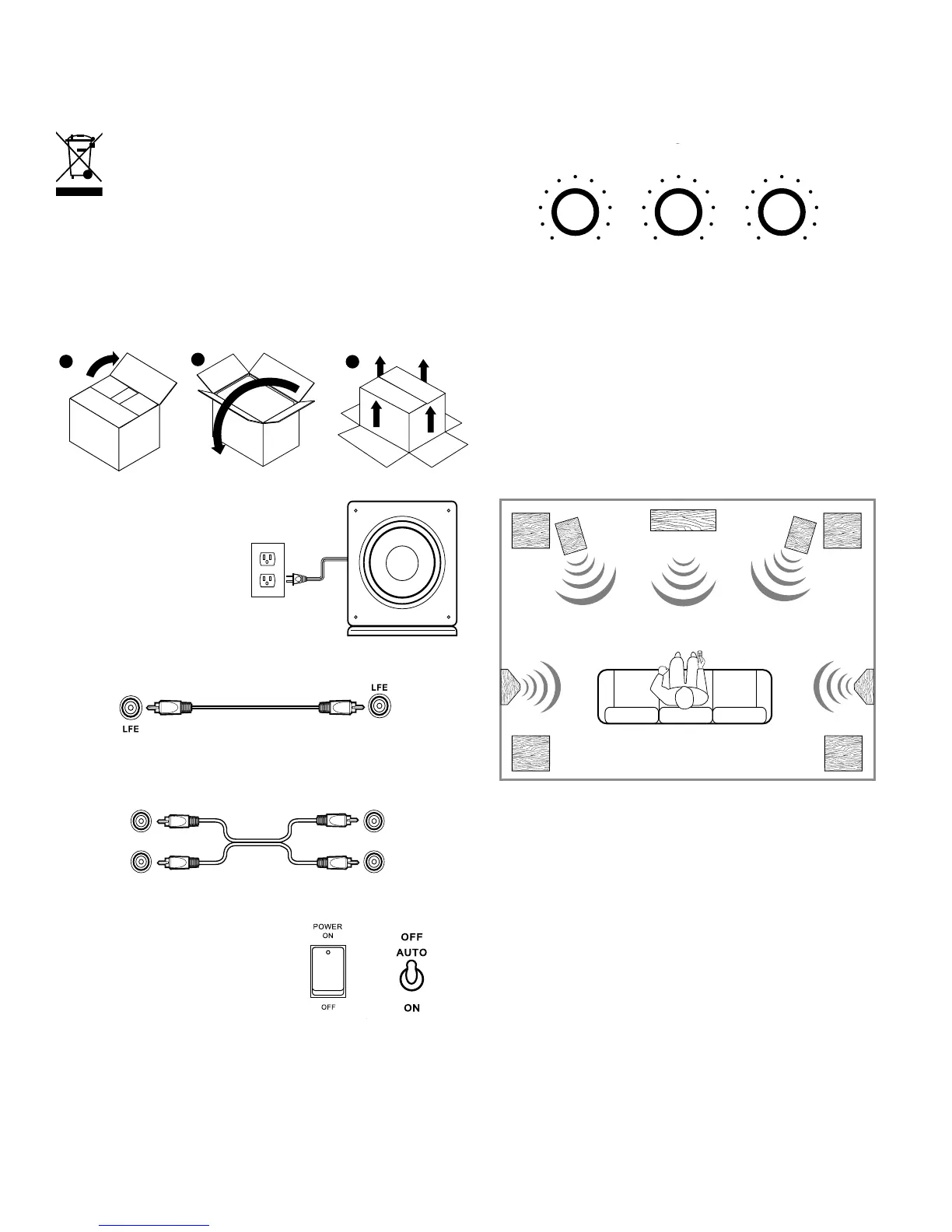

ROOM POSITION
The placement of your subwoofer can add a significant difference to the
performance of your home theater system. Low frequencies are omni di-
rectional, but best performance results if you place the subwoofer in the
corner, as this will increase the level of bass output. You can experiment
with different configurations, or even add multiple subwoofers to your
system (see diagram).
1
3
2
CONNECTING YOUR
SUBWOOFER
Ensure that the subwoofer is
unplugged from power source
(wall outlet) before making any
connections to your amp/re-
ceiver.
R
L
R
L
OUT
RECEIVER
PRE-OUT
RECEIVER
SUBWOOFER
SUBWOOFER
LINE IN
R
L
R
L
OUT
RECEIVER
PRE-OUT
RECEIVER
SUBWOOFER
SUBWOOFER
LINE IN
R
L
R
L
OUT
RECEIVER
PRE-OUT
RECEIVER
SUBWOOFER
SUBWOOFER
LINE IN
R
L
LINE IN FREQUENCY PHASE LEVEL
LED
40Hz
160Hz
0° 180° MIN MAX
FREQUENCY PHASE LEVEL
40Hz
160Hz
0° 180° MIN MAX
R
L
LINE IN FREQUENCY PHASE LEVEL
LED
40Hz
160Hz
0° 180° MIN MAX
