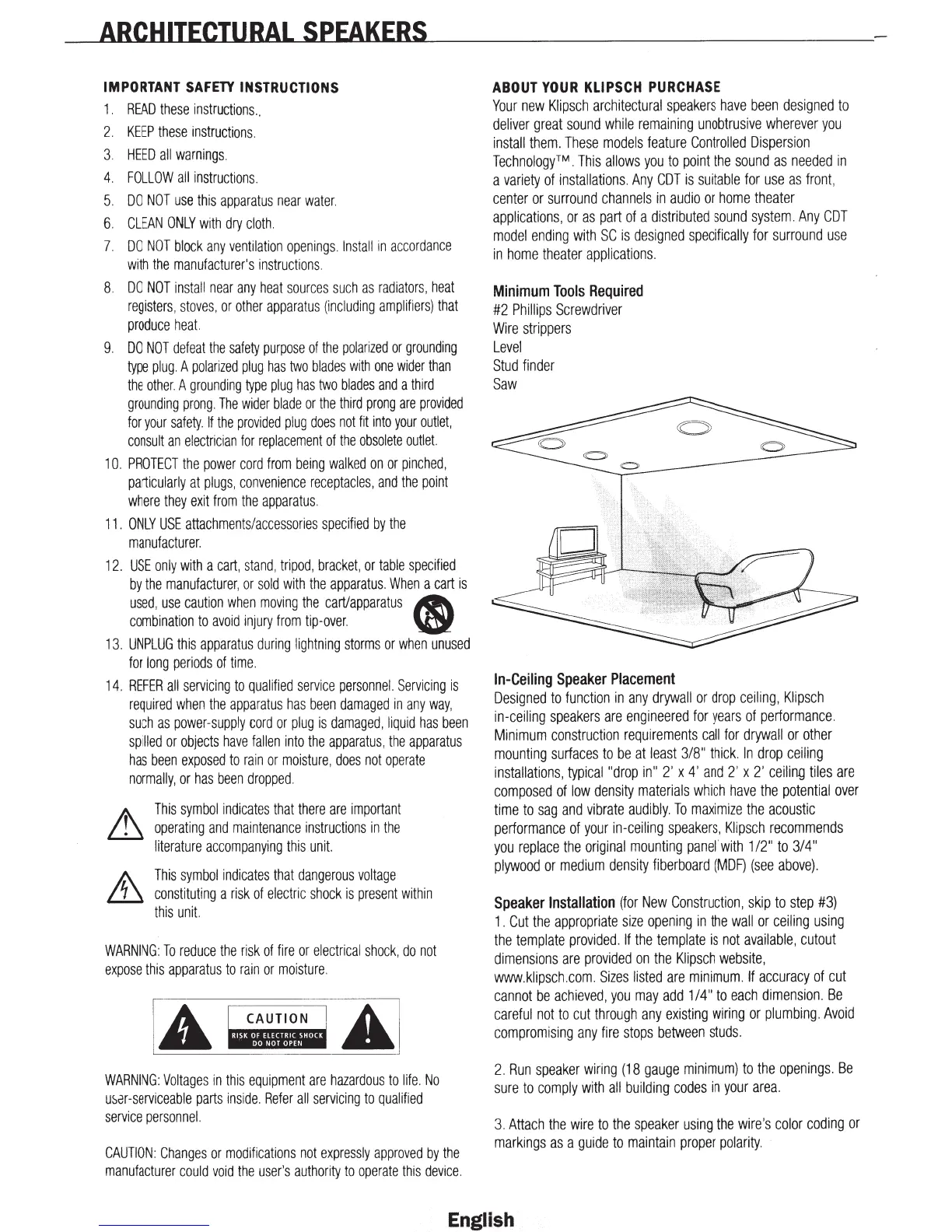

Klipsch CDT Series User Manual

ARCHITECTURAL
SPEAKERS
IMPORTANT
SAFETY
INSTRUCTIONS
1 .
READ
these
instructions
..
2.
KEEP
these
instructions.
3.
HEED
all
warnings.
4.
FOLLOW
all
instructions
.
5.
DO
NOT
use
this
apparatus
near
water.
6.
CLEAN
ONLY
with
dry
cloth.
7.
DO
NOT
block
any
ventilation
openings
.
Install
in
accordance
with
the
manufacturer's
instructions
.
8.
DO
NOT
install
near
any
heat
sources
such
as
radiators,
heat
registers
,
stoves,
or
other
apparatus
(including
amplifiers)
that
produce
heat.
9.
DO
NOT
defeat
the
safety
purpose
of
the
polarized
or
grounding
type
plug
. A
polarized
plug
has
two
blades
with
one
wider
than
the
other
. A
grounding
type
plug
has
two
blades
and
a
third
grounding
prong.
The
wider
blade
or
the
third
prong
are
provided
for
your
safety.
If
the
provided
plug
does
not
fit
into
your
outlet,
consult
an
electrician
for
replacement
of
the
obsolete
outlet.
10.
PROTECT
the
power
cord
from
being
walked
on
or
pinched,
particularly
at
plugs,
convenience
receptacles,
and
the
point
where
they
exit
from
the
apparatus
.
11
.
ONLY
USE
attachments/accessories
specified
by
the
manufacturer
.
12.
USE
only
with
a
cart
,
stand,
tripod
,
bracket,
or
table
specified
by
the
manufacturer,
or
sold
with
the
apparatus.
When
a
cart
is
used,
use
caution
when
moving
the
cart/apparatus
~
combination
to
avoid
injury
from
tip-over.
"'
13.
UNPLUG
this
apparatus
during
lightning
storms
or
when
unused
for
long
periods
of
time.
14.
REFER
all
servicing
to
qualified
service
personnel.
Servicing
is
required
when
the
apparatus
has
been
damaged
in
any
way,
such
as
power-supply
cord
or
plug
is
damaged,
liquid
has
been
spilled
or
objects
have
fallen
into
the
apparatus,
the
apparatus
has
been
exposed
to
rain
or
moisture,
does
not
operate
normally,
or
has
been
dropped.
This
symbol
indicates
that
there
are
important
operating
and
maintenance
instructions
in
the
literature
accompanying
this
unit.
This
symbol
indicates
that
dangerous
voltage
constituting
a
risk
of
electric
shock
is
present
within
this
unit.
WARNING
:
To
reduce
the
risk
of
fire
or
electrical
shock,
do
not
expose
this
apparatus
to
rain
or
moisture.
AI
WARNING
:
Voltages
in
this
equipment
are
hazardous
to
life.
No
usar-serviceable
parts
inside.
Refer
all
servicing
to
qualified
service
personnel.
CAUTION:
Changes
or
modifications
not
expressly
approved
by
the
manufacturer
could
void
the
user's
authority
to
operate
this
device
.
ABOUT
YOUR
KLIPSCH
PURCHASE
Your
new
Klipsch
architectural
speakers
have
been
designed
to
deliver
great
sound
while
remaining
unobtrusive
wherever
you
install
them.
These
models
feature
Controlled
Dispersion
Technology™
.
This
allows
you
to
point
the
sound
as
needed
in
a
variety
of
installations.
Any
COT
is
suitable
for
use
as
front,
center
or
surround
channels
in
audio
or
home
theater
applications
,
or
as
part
of
a
distributed
sound
system
.
Any
COT
model
ending
with
SC
is
designed
specifically
for
surround
use
in
home
theater
applications.
Minimum
Tools
Required
#2
Phillips
Screwdriver
Wire
strippers
Level
Stud
finder
Saw
In-Ceiling
Speaker
Placement
Designed
to
function
in
any
drywall
or
drop
ceiling,
Klipsch
in-ceiling
speakers
are
engineered
for
years
of
performance.
Minimum
construction
requirements
call
for
drywall
or
other
mounting
surfaces
to
be
at
least
3/8"
thick.
In
drop
ceiling
installations,
typical"drop
in"
2'
x
4'
and
2'
x
2'
ceiling
tiles
are
composed
of
low
density
materials
which
have
the
potential
over
time
to
sag
and
vibrate
audibly.
To
maximize
the
acoustic
performance
of
your
in-ceiling
speakers,
Klipsch
recommends
you
replace
the
original
mounting
panel
.
with
1/2"
to
3/4"
plywood
or
medium
density
fiberboard
(MDF)
(see
above).
Speaker
Installation
(for
New
Construction,
skip
to
step
#3)
1 .
Cut
the
appropriate
size
opening
in
the
wall
or
ceiling
using
the
template
provided
.
If
the
template
is
not
available,
cutout
dimensions
are
provided
on
the
Klipsch
website,
www.klipsch.com.
Sizes
listed
are
minimum.
If
accuracy
of
cut
cannot
be
achieved,
you
may
add
1
/4"
to
each
dimension
.
Be
careful
not
to
cut
through
any
existing
wiring
or
plumbing
.
Avoid
compromising
any
fire
stops
between
studs.
2.
Run
speaker
wiring
(18
gauge
minimum)
to
the
openings.
Be
sure
to
comply
with
all
building
codes
in
your
area.
3.
Attach
the
wire
to
the
speaker
using
the
wire's
color
coding
or
markings
as
a
guide
to
maintain
proper
polarity.
