Cornwall
The Cornwall III offers the placement and toe-in flexibility of the La Scala with low frequency
extension similar to the Klipschorn a
t a reduced output capability.As with the La Scala and
Heresy,corner positioning yields the greatest amount of bass output while placements
out of the corner or away from rear walls will yield less bass. Since room acoustics and
personal taste vary we recommend experimenting with several locations to fine tune the
speaker’s performance. Self stick rubber pads are supplied for attachment to the bottom of
the riser for use on hard floors.
Heresy
The Heresy III offers the greatest degree of placement flexibility of all of the Heritage
models due to its relatively compact size. It delivers the same basic frequency range as the
La Scala but at more modest output levels. Corner, floor placement will deliver the highest
degree of low bass reinforcement and the slant riser base helps to compensate for the
Heresy’s short stature.This riser may be removed for shelf or cabinet placement. Self stick
rubber pads are supplied for attachment to the bottom of the cabinet to prevent scratching
of shelves and hard surfaces.
CONNECTING YOUR LOUDSPEAKER
Caution:Turn your amplifier off before making any connections!
• Your loudspeakers are equipped with positive (Red) and negative (Black) connection
terminals, on the rear or side of the cabinet.These correspond to the positive and
negative terminals on the appropriate channel (left, right, center, rear,etc.) of
your amplifier.
•
All speakers in your system must be connected in phase with the positive speaker
terminal connected to the positive amplifier terminal. Repeat this for the negative
speaker terminal and amplifier terminals. Most speaker wire has distinguishing markings
on the insula
tion of one of the conductors to assist in correct hookup.
• Use 16-gauge (AWG), two conductor,Copper wire at a minimum and larger gauge wire
f
or longer runs.
The connection terminals on your loudspeaker will accommoda
te bare
wire,
spade terminals or banana type plugs.
•
Caution: With all connection types take care that there is no contact between the
positive and nega
tive terminals a
t the speaker and amplifier
.
Dama
ge to your equipment
ma
y result! (See figure 4)
Klipsc
hor
n
:
Input connections are f
ound on the input panel on the side of the low frequen
-
cy ca
binet.
T
wo of the four pairs of binding posts are used to connect the speaker cables
coming from your amplifier and will accommodate bare wire, spade lugs or banana plugs.
The
y are la
beled
“HF+”,
“HF-”,
“LF+”
and
“LF-.” Both red (+) and both black (-) posts are
connected with wire jumpers.
Lea
ve these jumpers in place for conventional single wire
connection and use either pair of posts. Remove these jumpers for optional bi-wire
connection (see figure 5).
Do not connect your amplifier directly to the midrange or tweeter driver leads or to the
posts la
beled
“Mid Out+”
or
“HF Out+”
as you ma
y damage the speaker.
La Scala: The two pairs of binding posts located on the rear of the loudspeaker are used
to connect the speaker ca
bles coming from your amplifier and will accommoda
te bare wire,
spade lugs of banana plugs.These binding posts are labeled “HF+”,“HF-”,“LF+” and
“LF-.” Both red (+) and black (-) posts connected with wire jumpers. Leave these jumpers
in place for conventional single wire connection and use either pair of posts. Remove these
jumpers for bi-wire connection (see figure 5).
Cornwall III and Heresy III: These models have two pairs of binding posts located on the
rear of the loudspeaker are used to connect the speaker cables coming from your amplifier
and will accommodate bare wire, spade lugs of banana plugs.These binding posts are
labeled “HF+”,“HF-”, “LF+” and “LF-.”And have both red (+) and black (-) posts
connected with metal straps. Leave these straps in place for conventional single wire
connection and use either pair of posts. Remove these straps for bi-wire connection
(see figure 4).
WARRANTY—U.S. AND CANADA ONLY
The Warranty below is valid only for sales to consumers in the United States or Canada.
KLIPSCH, L.L.C. ("KLIPSCH") warrants this product to be free from defects in materials and
workmanship (subject to the terms set forth below) for a period of five (5) years from the
date of purchase. During the Warranty period, KLIPSCH will repair or replace (at KLIPSCH’s
option) this product or any defective parts (excluding electronics and amplifiers). For prod-
ucts that have electronics or amplifiers, the Warranty on those parts is for a period of two
(2) years from the date of purchase.
To obtain Warranty service, please contact the KLIPSCH authorized dealer from which you
purchased this product. If your dealer is not equipped to perform the repair of your KLIPSCH
product, it can be returned, freight paid,to KLIPSCH for repair. Please call KLIPSCH at 1-
800-KLIPSCH for instructions.You will need to ship this product in either its original pack-
aging or packaging affording an equal degree of protection.
Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that
this product is within the Warranty period,must be presented or included to obtain Warranty
service.
This Warranty is invalid if (a) the factory-applied serial number has been altered or removed
from this product or (b) this product was not purchased from a KLIPSCH authorized dealer.
You may call 1-800-KLIPSCH to confirm that you have an unaltered serial number and/or
you purchased from a KLIPSCH authorized dealer.
This Warranty is only valid for the original purchaser and will automatically terminate prior
to expiration if this product is sold or otherwise transferred to another party.
This Warranty does not cover cosmetic damage or damage due to misuse, abuse, negli-
gence, acts of God, accident,commercial use or modification of, or to any part of, the prod-
uct.
This Warranty does not cover damage due to improper operation, maintenance or
installation, or attempted repair by anyone other than KLIPSCH or a KLIPSCH dealer which
is authorized to do KLIPSCH warranty work.
An
y unauthorized repairs will void this
W
arranty.
This
Warranty does not cover product sold AS IS or WITH ALL FAULTS.
REP
AIRS OR REPLACEMENTS
AS PROVIDED UNDER
THIS
WARRANTY ARE THE EXCLUSIVE
REMEDY OF
THE CONSUMER. KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW,THIS WARRANTY IS EXCLU-
SIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER,
INCLUDING BUT NOT LIMITED TO,THE WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PRACTICAL PURPOSE.
Some states do not allow the exclusion or limitation of incidental or consequential damages
or implied warranties so the above exclusions may not apply to you.This Warranty gives you
specific legal rights, and you may have other rights, which vary from state to state.
WARRANTY OUTSIDE THE UNITED STATES AND CANADA
The Warranty on this product if it is sold to a consumer outside of the United States or Canada
shall comply with applicable law and shall be the sole responsibility of the distributor that
supplied this product.To obtain any applicable warranty service, please contact the dealer from
which you purchased this product,
or the distributor tha
t supplied this product.

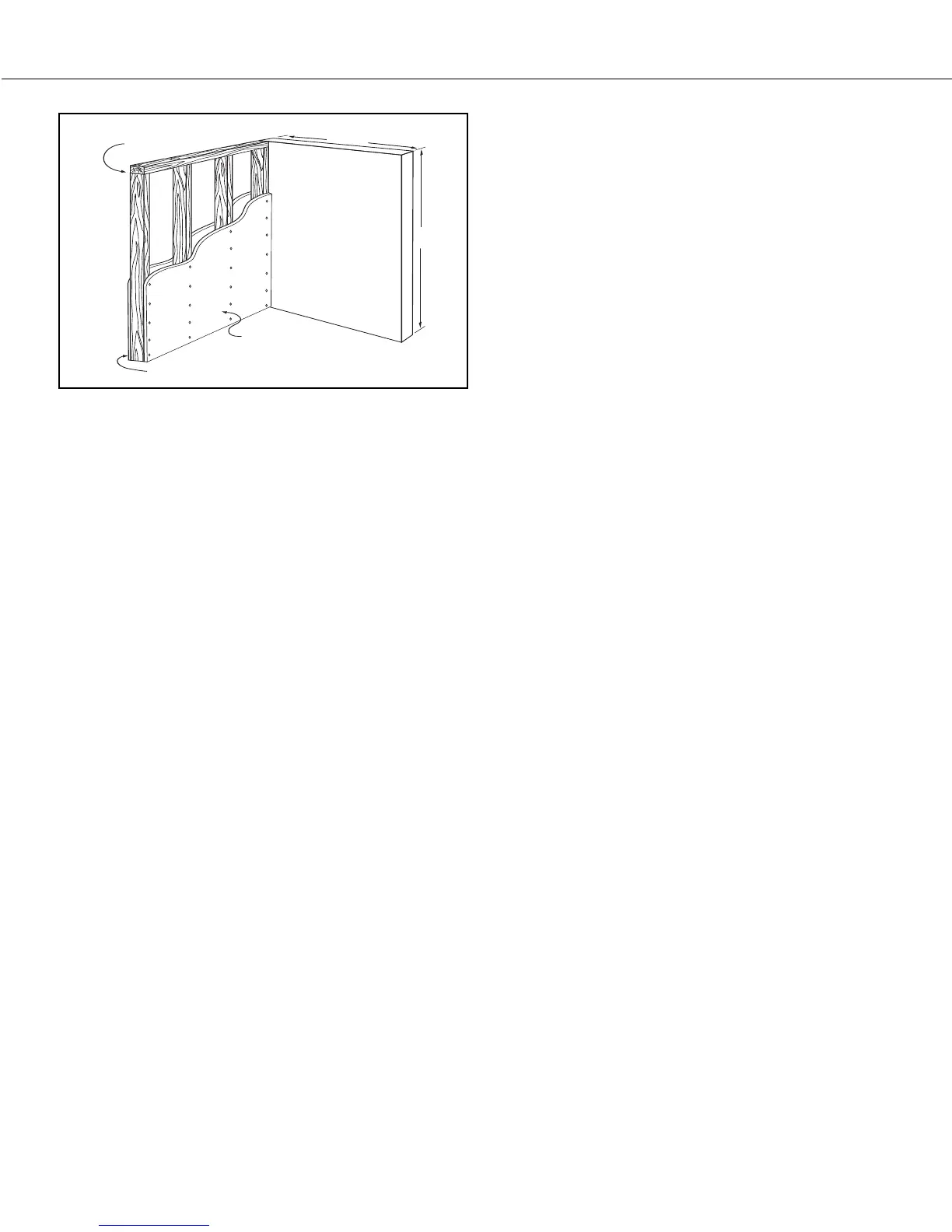

HERITAGE LOUDSPEAKERS
2" x 4" FRAME
122cm
approx. 48"
1
/
2
" PLYWOOD
3
/
4
" PLYWOOD
98-132cm
39"-52"+
Figure 3
