TOOLS NEEDED FOR CP-6 INSTALLATION:
a) Level
b) One pencil
c) 1 Philips #2 screwdriver OR One Power Drill with A LOW TORQUE SETTING and a Philips #2
screwdriver bit
d) IF WALL MOUNTING: Four #10 or #12, 2.5-3” (4-5cm) Pan head Screws (Two for each speaker
bracket) for mounting into wall stud OR Four minimum 10 lb. (5kg) Wall Anchors if stud-
mounting is unavailable

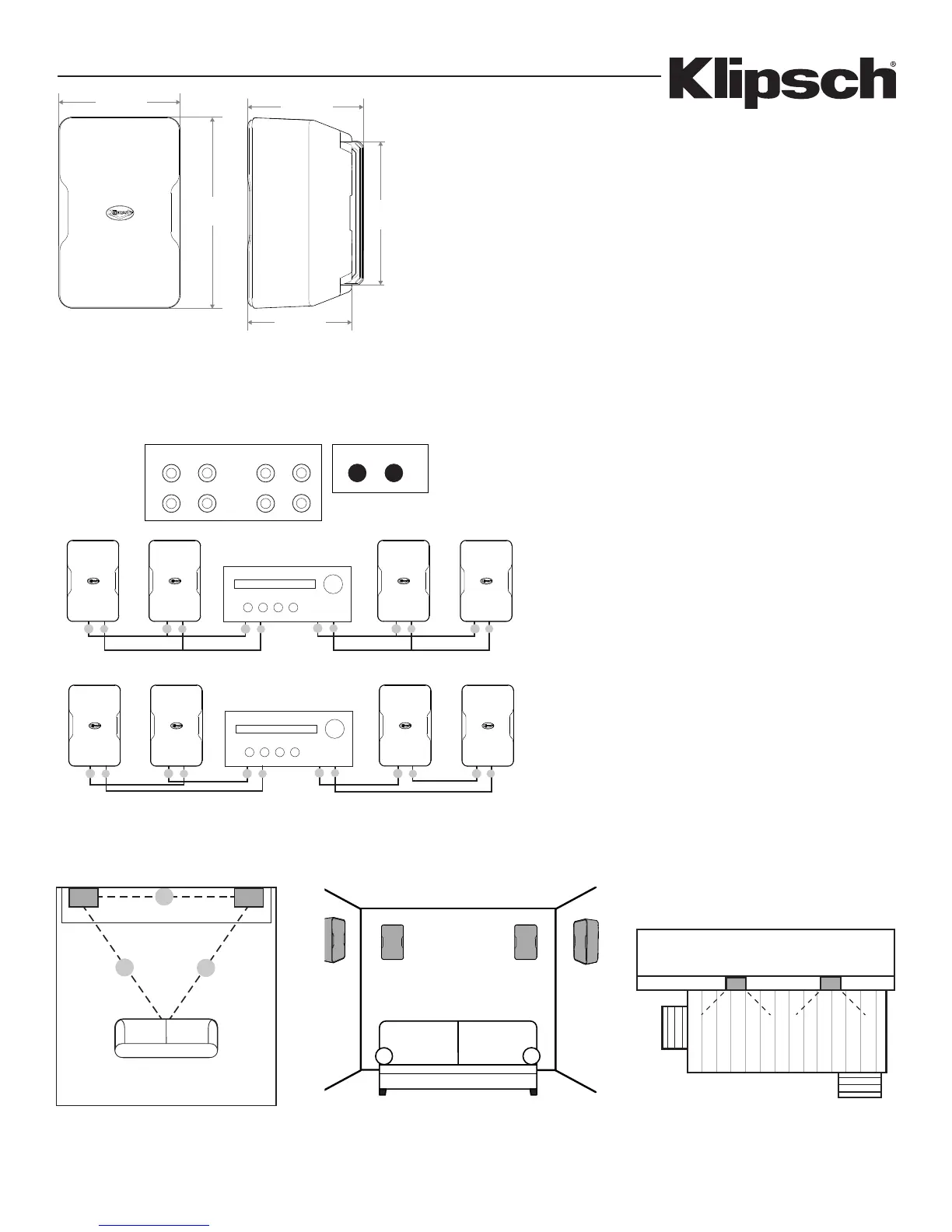

SUGGESTIONS ON CONNECTING TWO PAIRS OF CP-6’S TO ONE AMPLIFIER/RECEIVER:
Klipsch CP-6 speakers are rated at 8 Ohms Nominal Impedance. If connection of TWO PAIRS to one amplifier or receiver is desired, the following connection
methods are recommended:
+
-
+
-
+
-
+
-
+
-
+
-
ONE PAIR TO
8Ω CAPABLE
AMP/RECEIVER
Right Channel Left Channel
+
-
+
-
+
-
+
-
PARALLEL WIRING TWO PAIRS TO
4Ω CAPABLE AMP/RECEIVER
Right Channels Left Channels
+
-
+
-
+
-
+
-
+
-
+
-
SERIES WIRING TWO PAIRS TO
16Ω CAPABLE AMP/RECEIVER
Right Channels Left Channels
R
+
L
+
_
_
R
+
L
+
_
_
SPK A SPK B
Amp/Receiver Rear Amp/Receiver Front
SPK A SPK B
If your amp/receiver has separate connections for two
speaker pairs, connect the two pairs of CP-6’s to the two
speaker terminal sets. Depending on your amp/receiver,
either both pairs, or just one pair, will play at the same time.
+
-
+
-
+
-
+
-
+
-
+
-
ONE PAIR TO
8Ω CAPABLE
AMP/RECEIVER
Right Channel Left Channel
+
-
+
-
+
-
+
-
PARALLEL WIRING TWO PAIRS TO
4Ω CAPABLE AMP/RECEIVER
Right Channels Left Channels
+
-
+
-
+
-
+
-
+
-
+
-
SERIES WIRING TWO PAIRS TO
16Ω CAPABLE AMP/RECEIVER
Right Channels Left Channels
R
+
L
+
_
_
R
+
L
+
_
_
SPK A SPK B
Amp/Receiver Rear Amp/Receiver Front
SPK A SPK B
If your amp/receiver does not have separate connections
for two speaker pairs, connect CP-6’s to the single set of
speaker terminals in parallel as shown. Your amp/receiver
must be rated to 4 Ohms to make this connection.
+
-
+
-
+
-
+
-
+
-
+
-
ONE PAIR TO
8Ω CAPABLE
AMP/RECEIVER
Right Channel Left Channel
+
-
+
-
+
-
+
-
PARALLEL WIRING TWO PAIRS TO
4Ω CAPABLE AMP/RECEIVER
Right Channels Left Channels
+
-
+
-
+
-
+
-
+
-
+
-
SERIES WIRING TWO PAIRS TO
16Ω CAPABLE AMP/RECEIVER
Right Channels Left Channels
R
+
L
+
_
_
R
+
L
+
_
_
SPK A SPK B
Amp/Receiver Rear
Amp/Receiver Front
SPK A SPK B
If your amp/receiver cannot drive a two-pair, 4 Ohm load
above, connect both pairs of CP-6’s to the single set of
speaker terminals in series as shown. This will lower the
volume sent to all speakers.
SUGGESTIONS ON PLACEMENT OF KLIPSCH CP-6 SPEAKERS:
X
X
X
Mount Speakers horizontal
under roof eaves and point
down towards deck
House
Speakers disperse sound 90º
to cover whole deck evenly
STEREO ROOM PLACEMENT EXAMPLE
(aim speakers to main listening area)
AS SURROUND SPEAKERS ROOM PLACEMENT EXAMPLE
OUTDOORS TO COVER A DECK/PATIO WITH SOUND
(aim speakers down to main listening area)
7.0 ”
(17.8cm)
11.0”
(27.9cm)
9.4”
(23.9cm)
6.9”
(17.5cm)
6.1”
(15.5cm)
