Insert the bearing Nut from B
into both sides of Rear Wheel.
The White plastic spacer is to
be placed between the wheel
and frame.
Fix the rear wheel with bolt
and nut from B.
Note: The saddle height can
be adjusted according to
the height of rider.

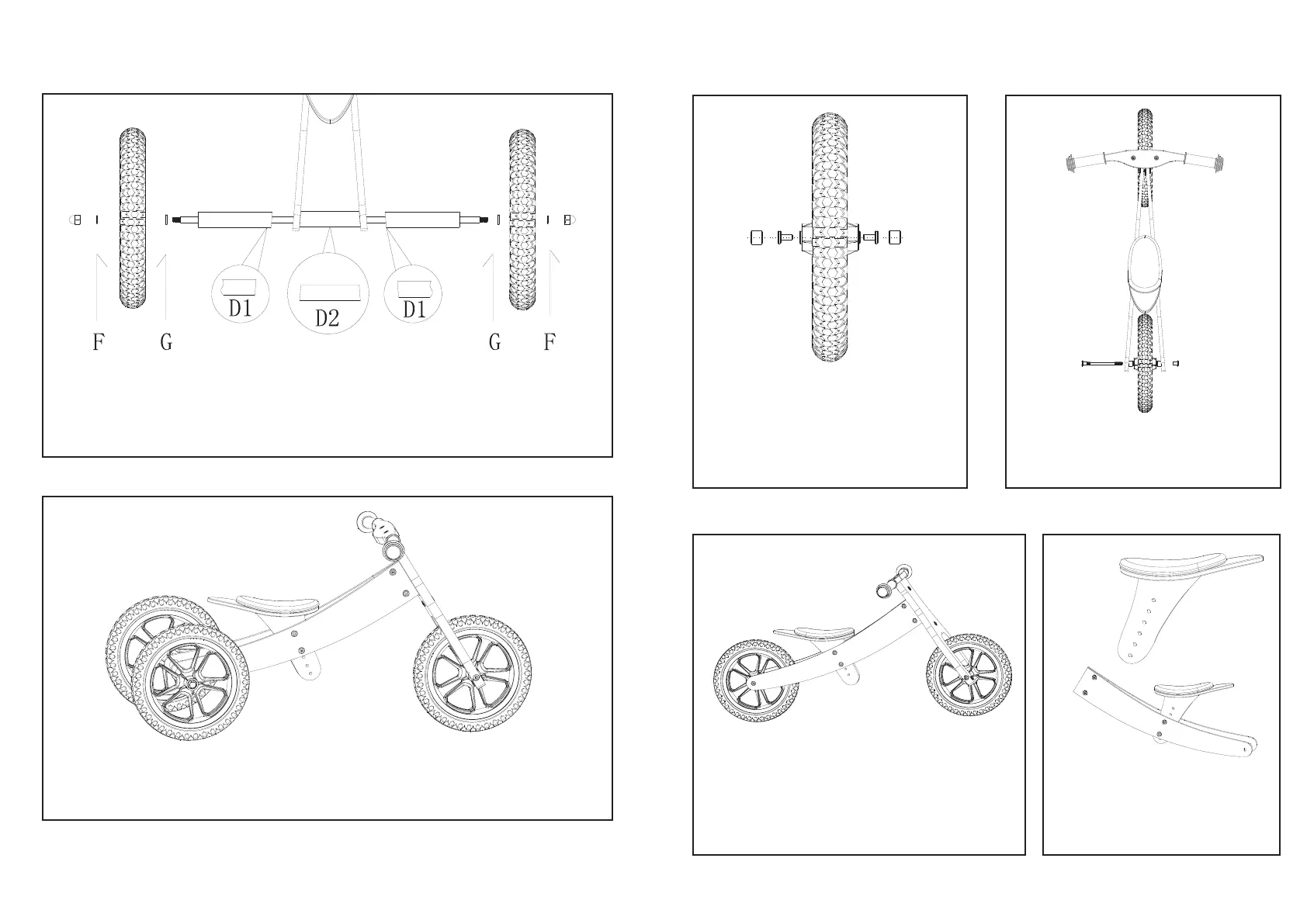

Fix the rear wheel with bolt set C and wooden spacer D.
Pay special attention to the dierence of wooden spacer D2.
Place the wooden spacer D1 with angular face towards the frame.
The Thinner washer F with 6mm Dia. is used outside with cap nut.
The Trike is now assembled.
Check and tighten all the screws on the frame and wheels.
The balance bike is now assembled.
Check and tighten all the screws on
the frame and wheels.
Now, enjoy your riding!
ATTENTION: This Trike can also convert to a balance bike when your child
leans to keep balance himself. See the assembly details on next page.
Option I: TRIKE
Option II: BALANCE BIKE
