OPERATING INSTRUCTIONS
4. Operating with the Screwgun
NOTICE: We recommend using a standard, long
bit (approximately 150mm length x 5mm shank
diameter) when operating the screwgun with the
collated attachment.

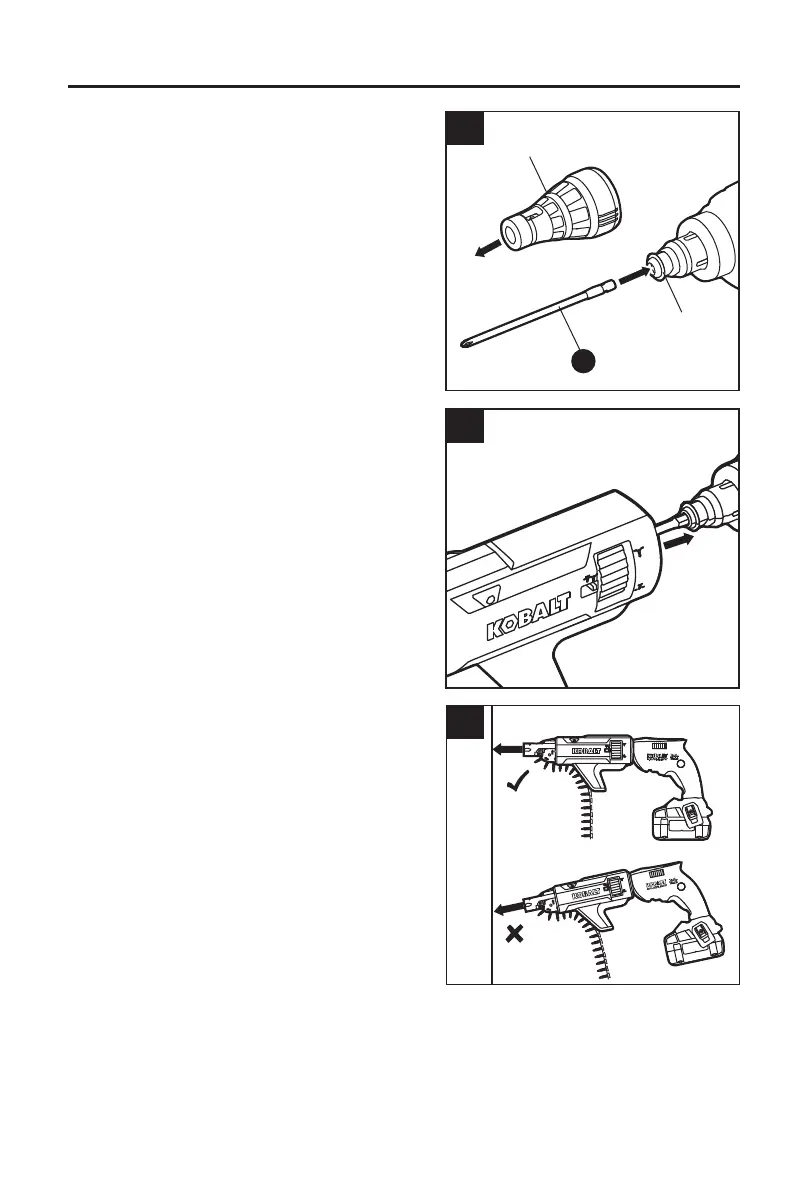

Install the screwgun bit:
a. Remove the battery from tool.
b. Pull the stop sleeve to remove it from the tool.
c. With one hand, push the bit sleeve back and
hold it in place.
d. With the other hand, insert the long screwgun
bit (J) into the hexagonal hole in the bit
retainer.
e. Release the bit sleeve and check that it returns
to its original position.
Install the collated attachment to the screwgun
a. Align the bit with the hole on the collated
attachment.
b. Push the collated attachment until it snaps into
place.
NOTE: The bit is magnetized and will hold most
commercial drywall screws.
Operating the screwgun with the collated
attachment
a. Install the screw strip.
b. Adjust the depth stop (A), set the screw length,
and adjust the screw-in depth.
c. Set direction of rotation (clockwise) on the
screwgun.
d. Grip the tool with both hands on the handle and
assume a working position.
e. Place the depth stop against the workpiece to
be screwed in place. Hold the tool at right angle
to the workpiece surface.
f. Turn on the screwgun. The screw is screwed
into the workpiece until the set screw-in depth
is reached. The bit will automatically stop
rotating.
g. When you have nished driving screws, switch
off the screwgun.
