ASSEMBLY INSTRUCTIONS
WARNING
• This product requires assembly. To reduce the risk of injury to persons, never operate
without guards in place. The guard must always be on the tool to protect the user.
1. Connecting the Edger Attachment to the
Power Head
Installing the attachment
a. Remove the battery pack from the power head.
b. Loosen the wing knob on the power-head shaft
(Fig.1a).
c. Align the spring-loaded pin on the attachment
with the groove on the coupler and push the
attachment shaft into the power head shaft until
the pin pops out of the groove and you hear an
audible “click” sound at the same time (Fig.1b).
d. Pull the shaft of the attachment to verify that it
is securely locked into the coupler.
e. Tighten the wing knob securely.
Removing the attachment
a. Remove the battery pack from the power head.
b. Loosen the wing knob.
c. Press down the spring-loaded pin and pull the
attachment shaft out of the coupler (Fig.1c).

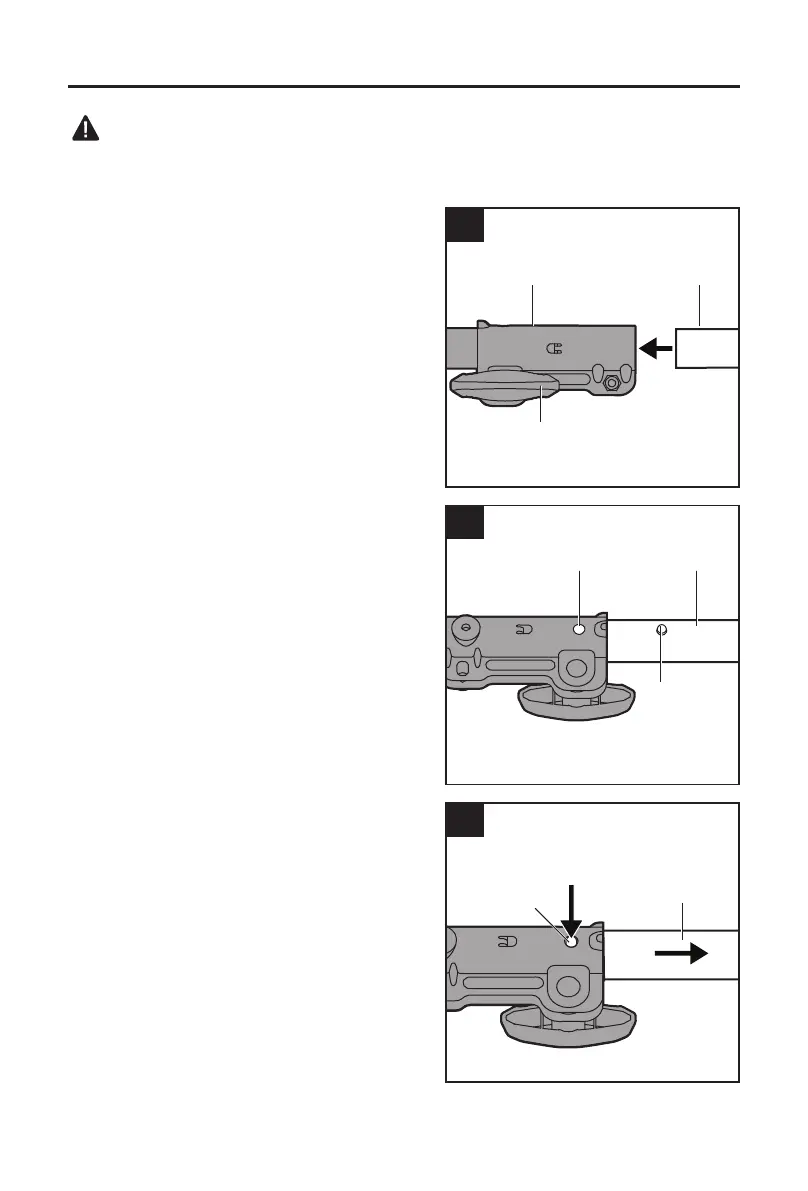

1a
Power-head shaft
Attachment
shaft
Wing knob
1b
Groove
Pin
Attachment
shaft
1c
Attachment
shaft
Pin
