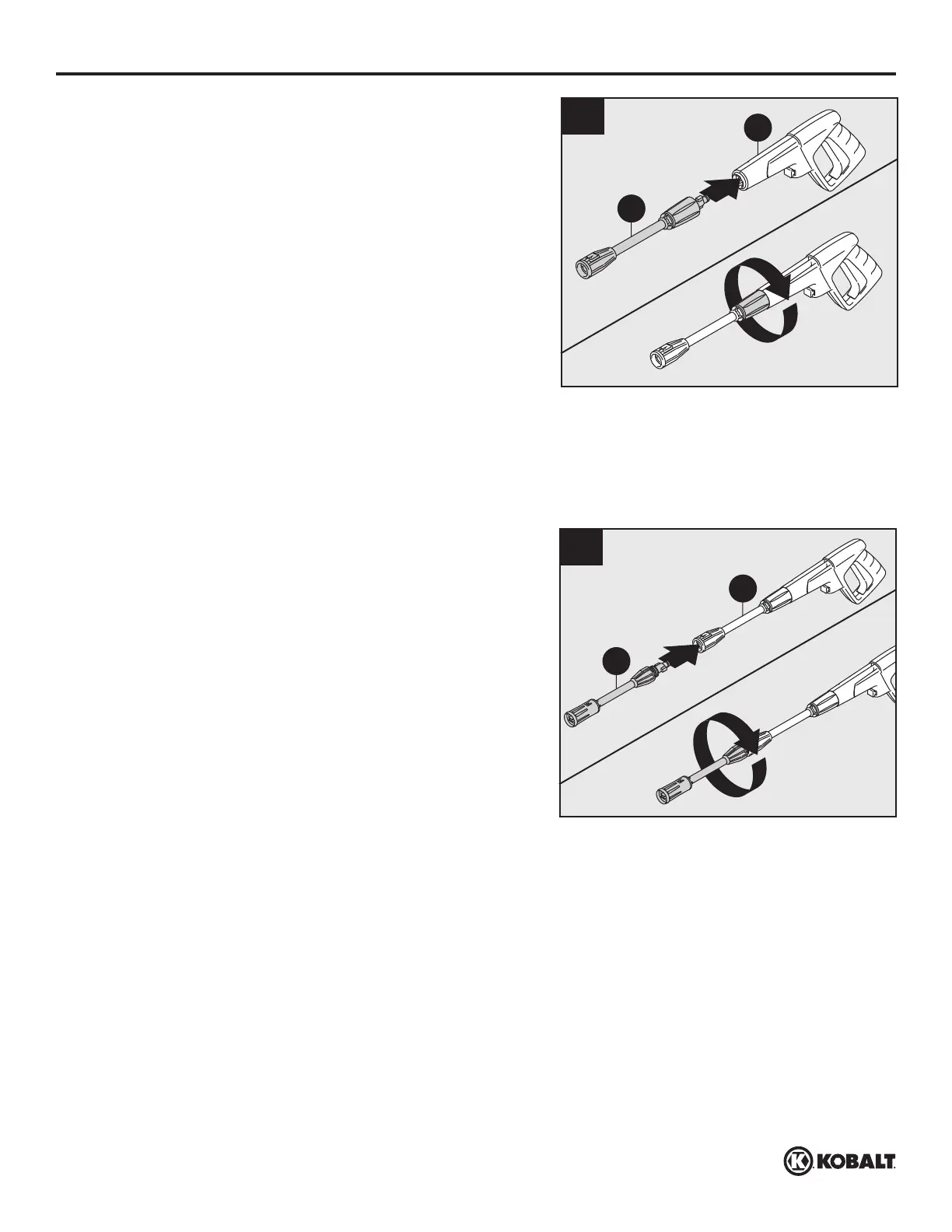

ASSEMBLY INSTRUCTIONS
Extension Lance installation
8. With spray gun (F) in locked position, attach
extension lance (J) directly to spray gun. Insert
lance extension into gun, pushing together
and turning clockwise simultaneously. Turn the
extension collar clockwise to lock into place. To
remove extension lance (J), turn extension collar
counterclockwise to unlock, then push together
and turn counterclockwise to release.
Note: The extension lance must be inserted in
gun before using any of the other attachments,
and in place for storage. It is recommended that
once extension is connected to leave it in place.
Adjustable Spray Lance installation
9. Insert variable spray nozzle (I) or detergent
bottle (H) into the end of the extension lance by
inserting and pushing together turning clockwise
simultaneously. To remove push together and
turn counterclockwise.
Note: Push the safety lock button to lock the
trigger when changing lances to ensure that
they do not accidentally eject with force during
removal.
