Grid Lines on the Image

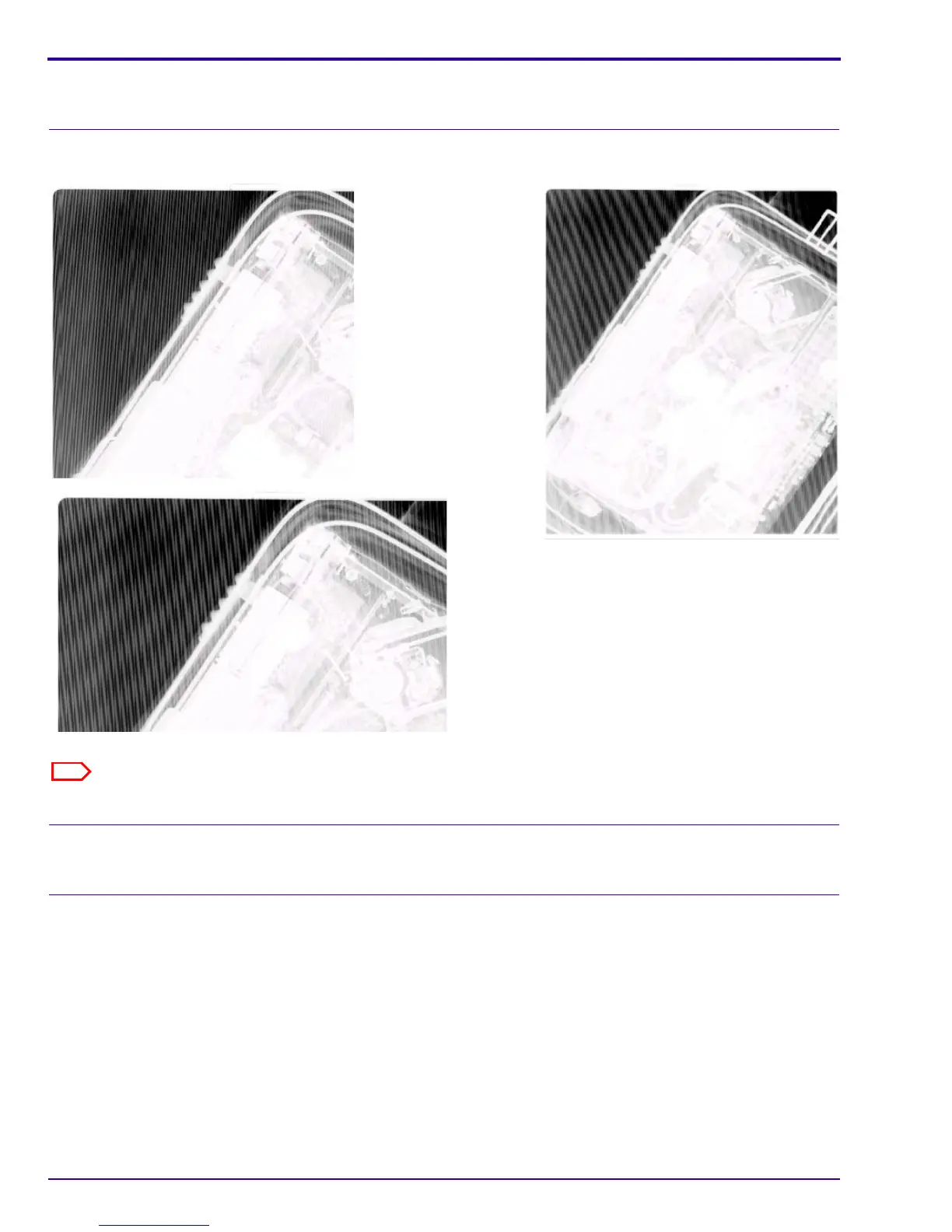

Grid Lines on Image Artifact Example
Note
The size of the grid lines varies with the magnification.
Cause
Grid lines on the image.
Fix
[1] Go to Technician>Settings>Setup screen.
[2] Check that Grid Suppression Filter is checked.
In Version 2.5 the grid suppression within Eclipse -Kodak Image Processing works best with 103 lp/inch grid. You
should avoid grids of 152 lp/inch. The algorithm does not suppress with frequency higher than 152 lp/inch.
