ASSEMBLY INSTRUCTIONS
UH9162 UH9163

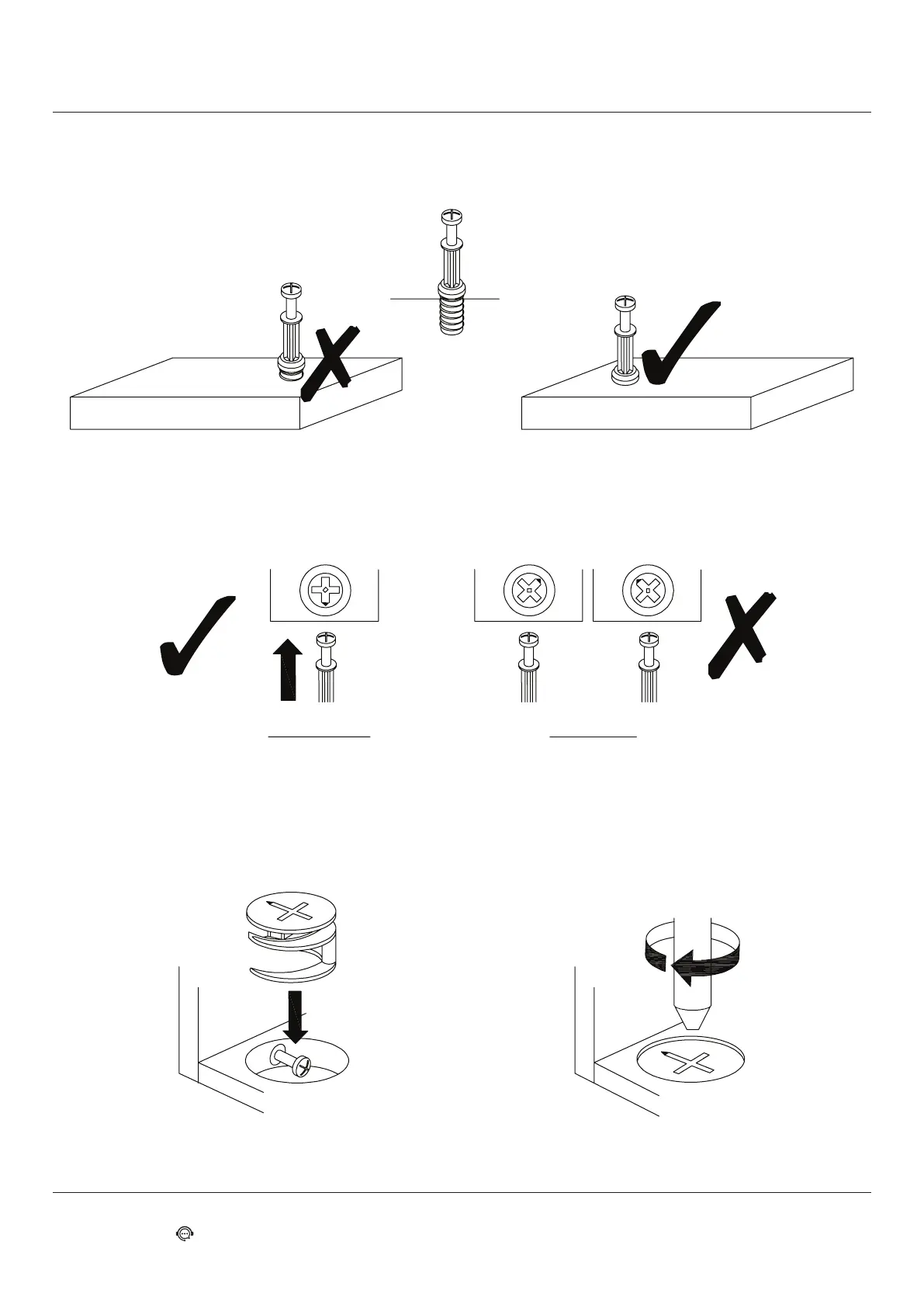

USING CAM LOCK AND QUICKFIT
QUICKFIT
Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten.
CAM LOCK
When fitting cam lock, ensure starting position is correct before you insert connecting quickfit.
Quickfit head should be in the centre of the
cam lock when the two panels are joined.
Cam lock should be inserted before quickfit.
Turn cam lock clockwise to tighten.
CORRECT
PANEL PANEL
SHOULDER
WRONG
