PN: V066570 -A04 Date: 7/9/10
SERVICABLE PARTS

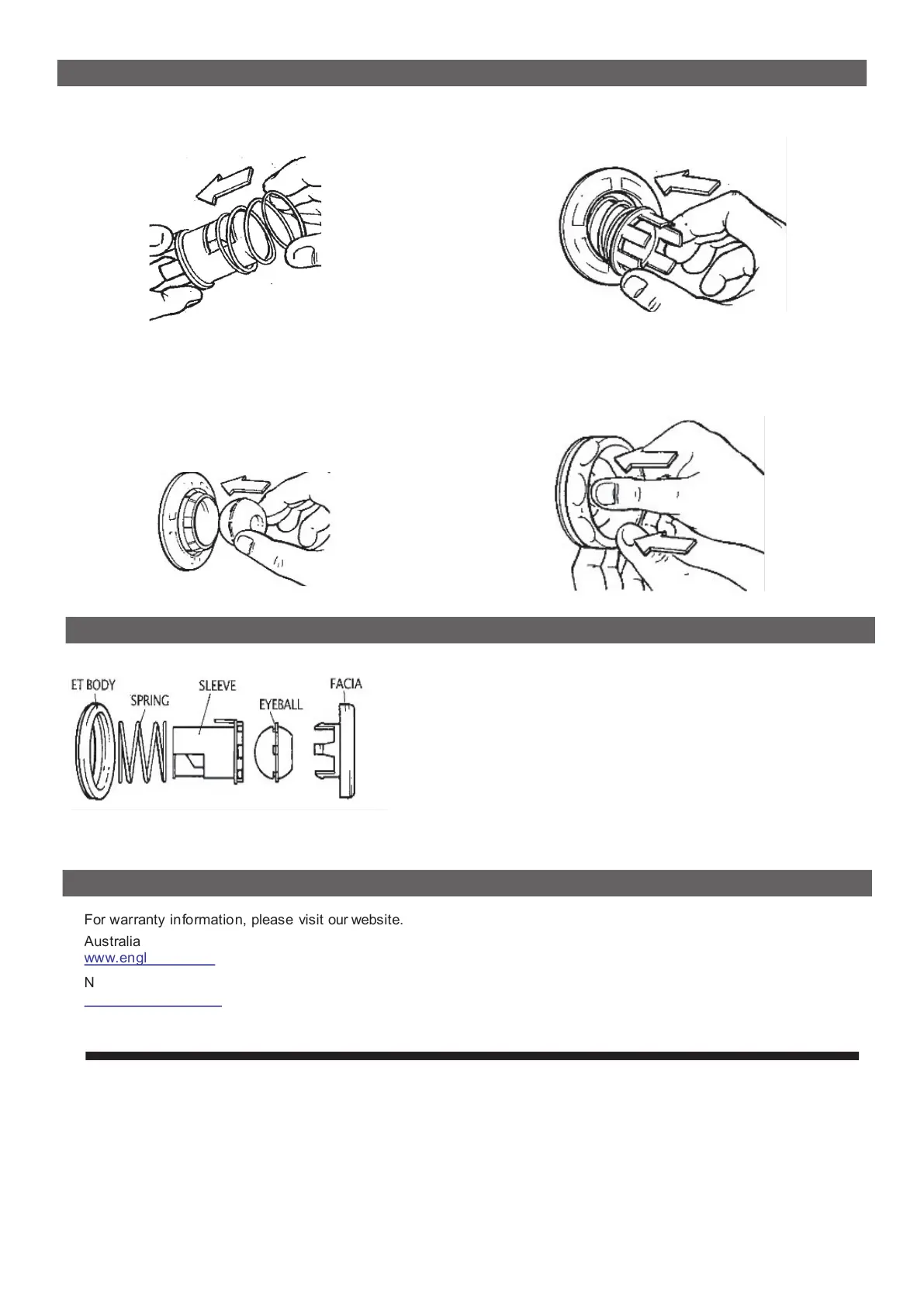

TO REASSEMBLE JETS
Re-assemble the spring over the sleeve.
Replace the spring and sleeve into the jet body.
Re-assemble the two halves of the eyeball and fit
into the sleeve. Ensure the front half is to the outside.
Holding the eyeball in place, gently push the fascia
back into the jet body until it clicks into place.
Exploded assembly view of jet.
Jet cartridge - Wonder jet chrome - T1180-CP
Back jet cartridge - Non scalloped chrome - 1054010-CP
Back jet cartridge - Non scalloped chrome (restricted) - 1054227-CP
