23~72
-15-

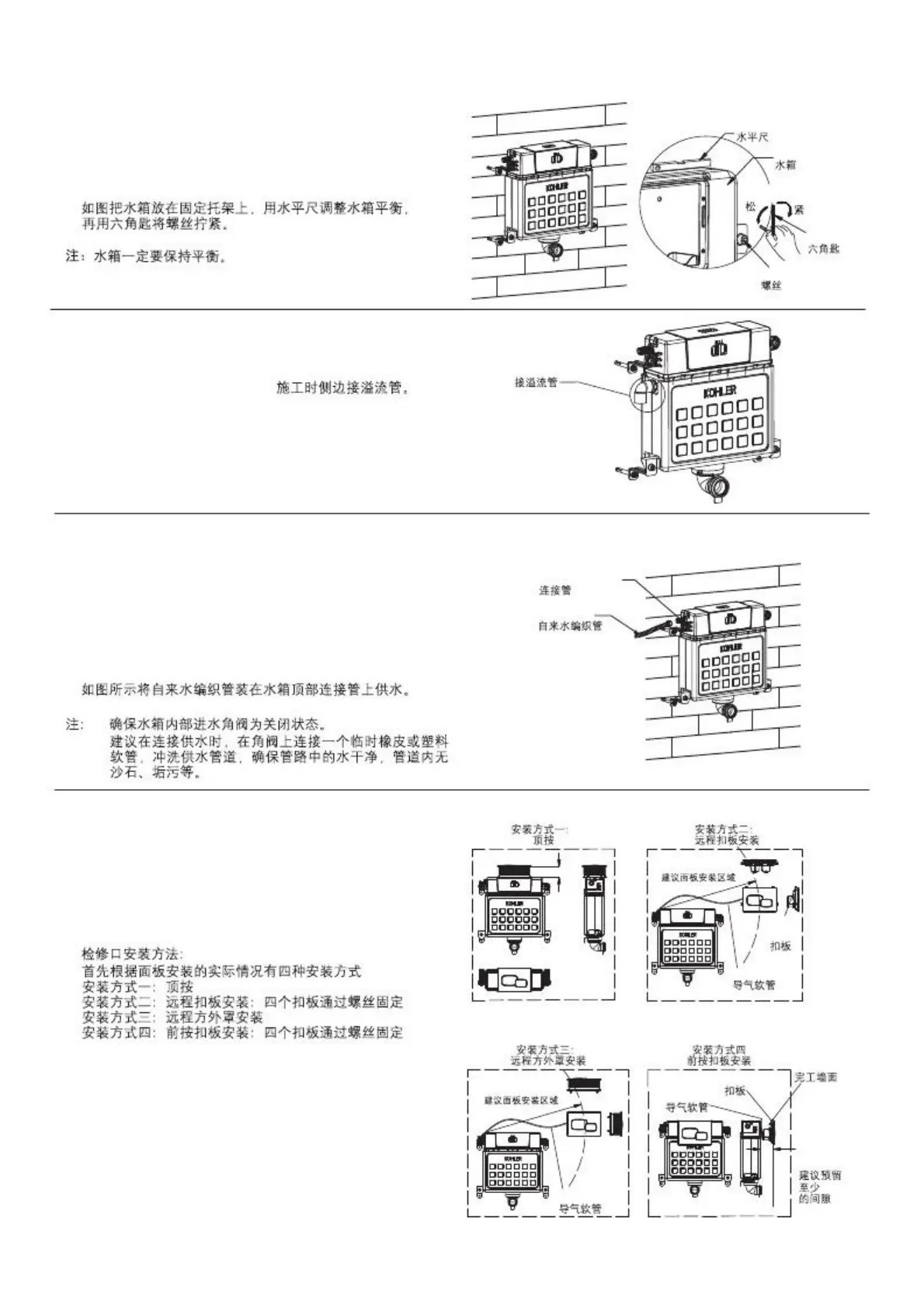

3. Put the tank onto the fixing bracket as shown in the right
figure and adjust the tank to level . Then tighten screws
with hex-head key.
Level
Tank
Loosen
Screw
Tighten
Medium
Allen Key
Note: it is a must to keep the tank level.
3.
4. Connect with overflow pipe on the side when installing
K-78073K-PNE/K-78075K-PNE.
4. K-78073K-PNE/K-78075K-PNE
Overflow Pipe
5. Connect tap water braided tube on the top of water tank for
water supply as shown.
Note: 1. Ensure water tank internal valve is OFF.
2. Suggestion: connect a temporary rubber or plastic
hose on valve, flush water supply pipeline. Ensure
water is clean, no residual sand stone or fouling
inside pipeline.
5.
1.
2.
6. Access Panel Installation Methods:
There are four ways to install access panel:
Method one: Press from top
Method two: Remote plate installation: fix four plates with
screws
Method three: Remote installation of mask
Method four: Press from front: fix four plates with screws
6.
:
Connecting Pipe
Water Pipe
Method one:
Press from top
Method three:
Remote installation
of mask
Suggested faceplate
installation area
R1000mm
Air hose
Method two:
Remote plate installation
Suggested faceplate
installation area
R1000mm
Pinch
plate
Air hose
Method four:
Press from front
Finished wall
Pinch plate
Air hose
At least
80mm gap
reserved
80mm
1288818-T01-A
To Next Page
