-16-
2) Cut apart the cable of the air hose and pull it out from
the rectangle cover.
2)

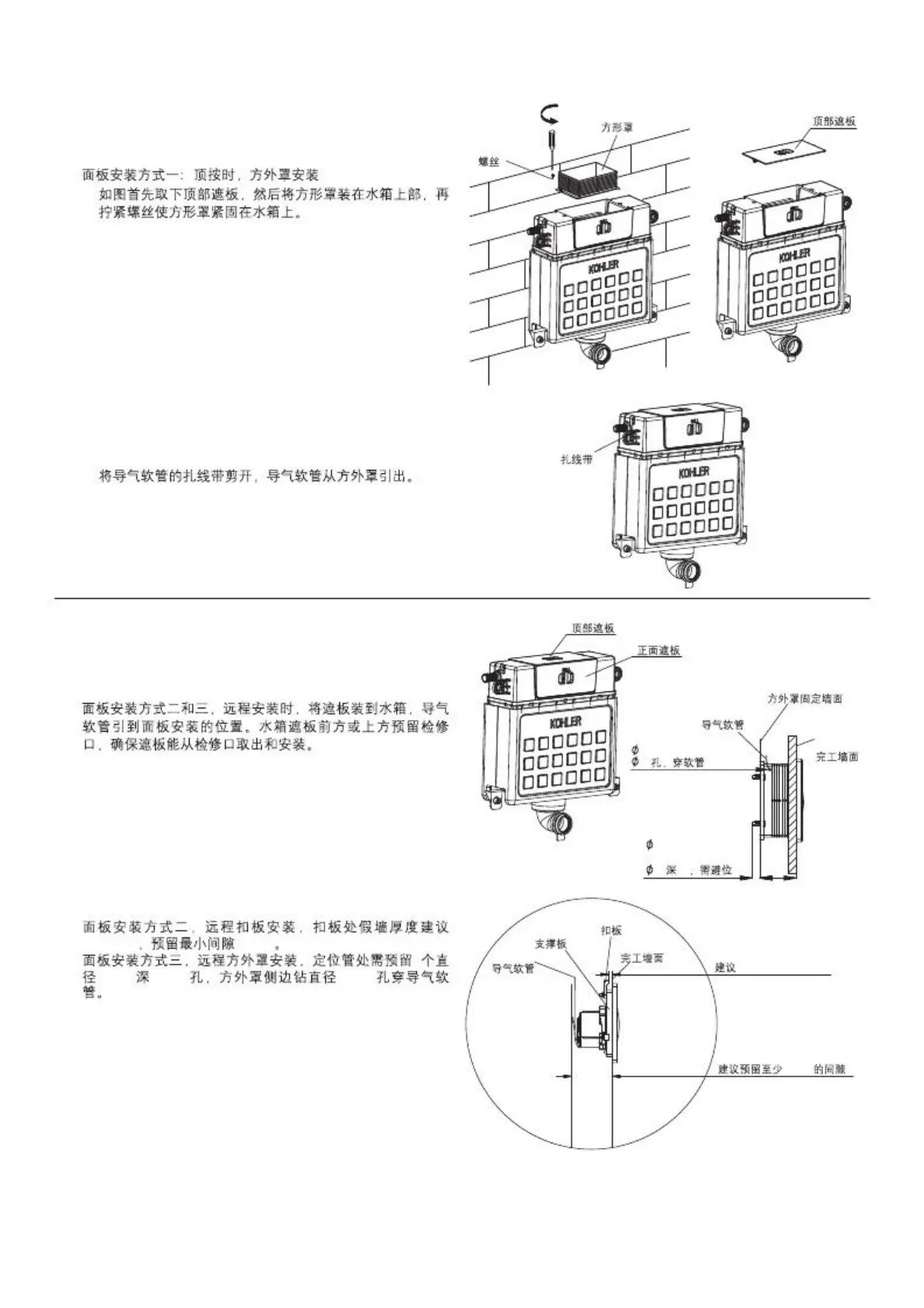

7. Method one: Install mask when pressing from top
1) Remove top plate, then install the mask on the top of the
tank, and tighten the screw to fix the mask to the tank.
7.
1)
Cover,Top
Screw
Mask
Cable
Cover,Top
Cover,Front
8. Methods two and three: During remote installation, fix the
cover onto the tank and pull the air hose to the panel.
Reserve access panel at front or top to ensure removal
and installation of cover.
Method two: During remote plate installation, 7~20mm
thickness is recommended for the wall of the pinch plate
and at least 80mm gap is reserved.
Method three: During remote installation of mask, 4 holes
with diameter of 10mm and depth of 16mm are needed to
be reserved at the locating hose. Drill 10mm holes through
air hose on the side of the mask.
8.
80mm
4
7~20mm
10mm
16mm 10mm
At least 80mm gap reserved
80mm
Air hose
Pinch plate
Finished wall
Supporting
Board
Air hose
Finished
wall
72
7~20mm recommended
7~20mm
10 Hole through hose
10
10 Depth 16,
Space reserved
10 16
1288818-T01-A
