Discharge Elbow Drainage Pipe
-17-
Air hose
Supporting Board
Screw
Faceplate
10. Insert the inlet pipe and drainage pipe into the bowl, and
then adjust the syphon and drainage pipe to a proper
position to be fixed into the bowl. Make sure of the
positions of syphon and discharge elbow and then
remove the bowl.
10.

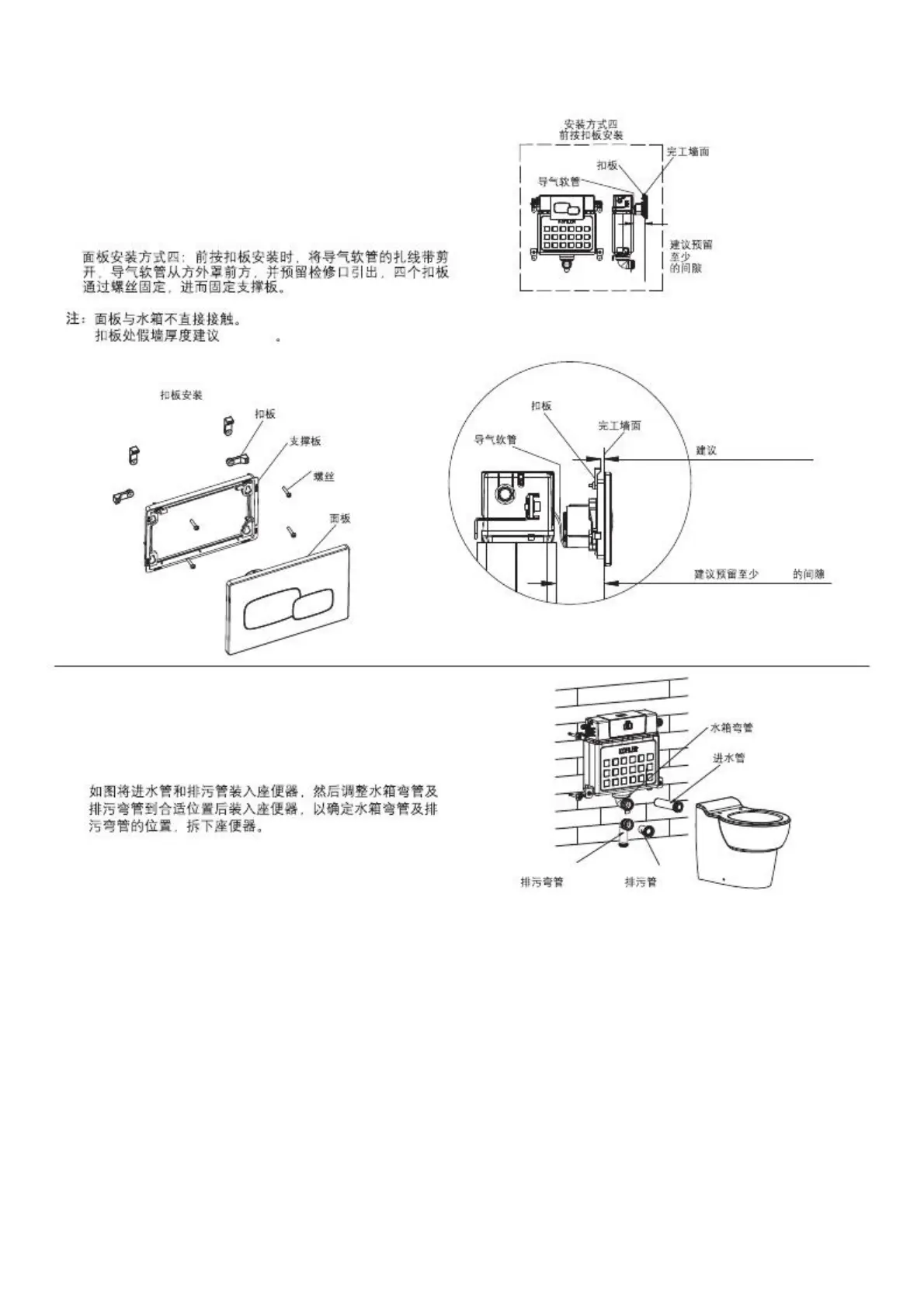

9. Method four: Cut apart the cable of the air hose. Pull it out
from the front of the tank and meanwhile reserve the
access panel. Fix the four plates with screws and then fix
the support board.
Note: No direct contact between the faceplate and the tank.
7~20mm thickness recommended for the wall of the
pinch plate.
9.
7~20mm
Pinch plate installation
Pinch plate
Method four:
Press from front
Pinch plate
Air hose
Pinch plate
Finished wall
7~20mm recommended
7~20mm
At least 80mm gap reserved
80mm
Syphon
Inlet Pipe
Finished wall
At least
80mm gap
reserved
80mm
