-18-

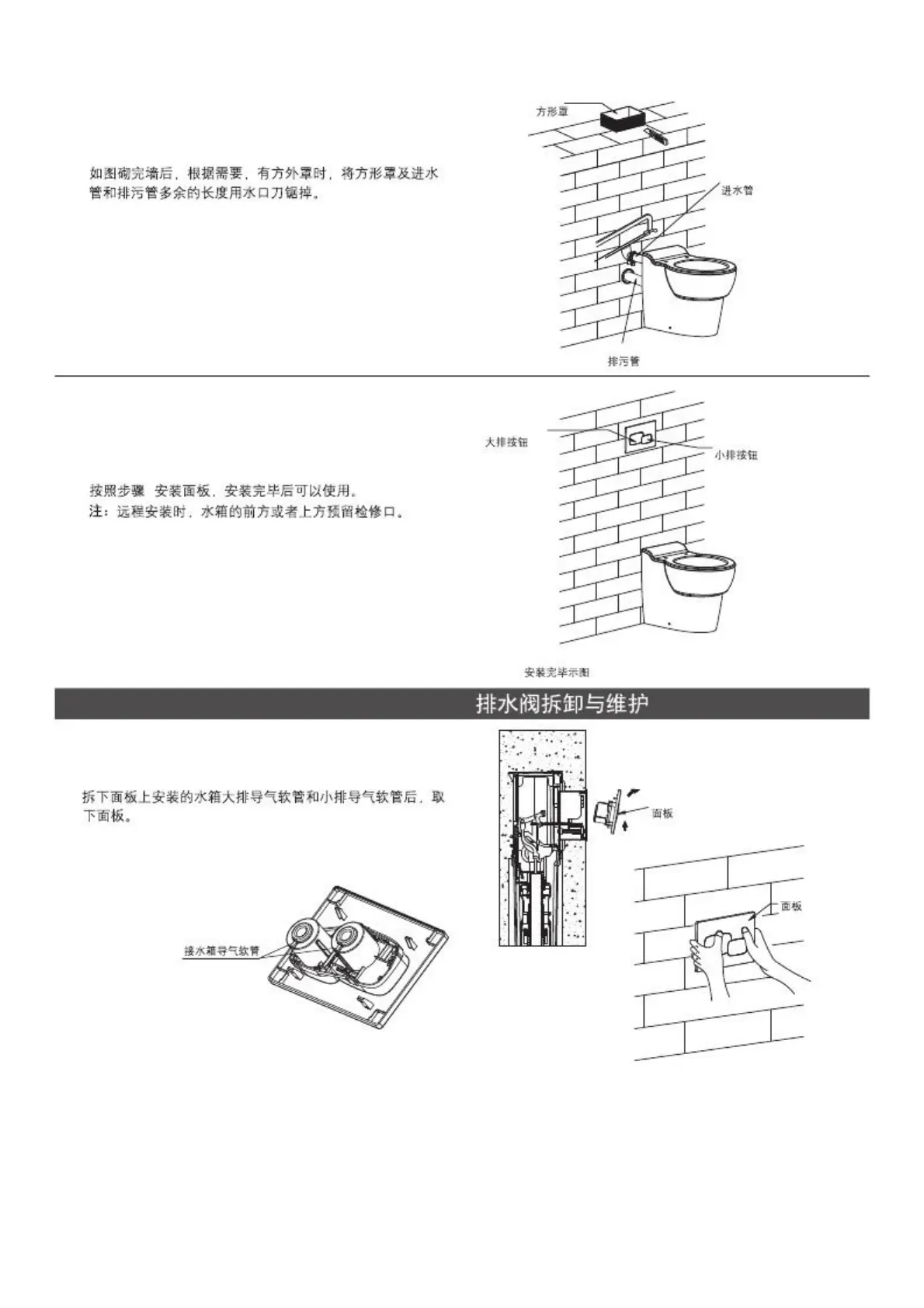

12. Fix faceplate according to step E and then it is ready for
use.
Note: Reserve access panel at front or top of the tank in
remote installation.
12.
E
Half Flush Button
Full
Flush Button
11. When finishing the brickwork, eliminate unwanted part of
the mask, the drainage pipe and the inlet pipe, if there is
mask.
11.
Inlet Pipe
Drainage Pipe
REMOVEANDMAINTENANCEOFTHEOUTLETVALVE
1. Remove the air hoses of the big flush and small flush.
Then remove the faceplate.
1.
Finished Installation Illustration
Faceplate
Faceplate
Connect to air hose
Mask
1288818-T01-A
To Next Page
