Kohler HYDRO-TOWER 200 Series User Manual

-19-

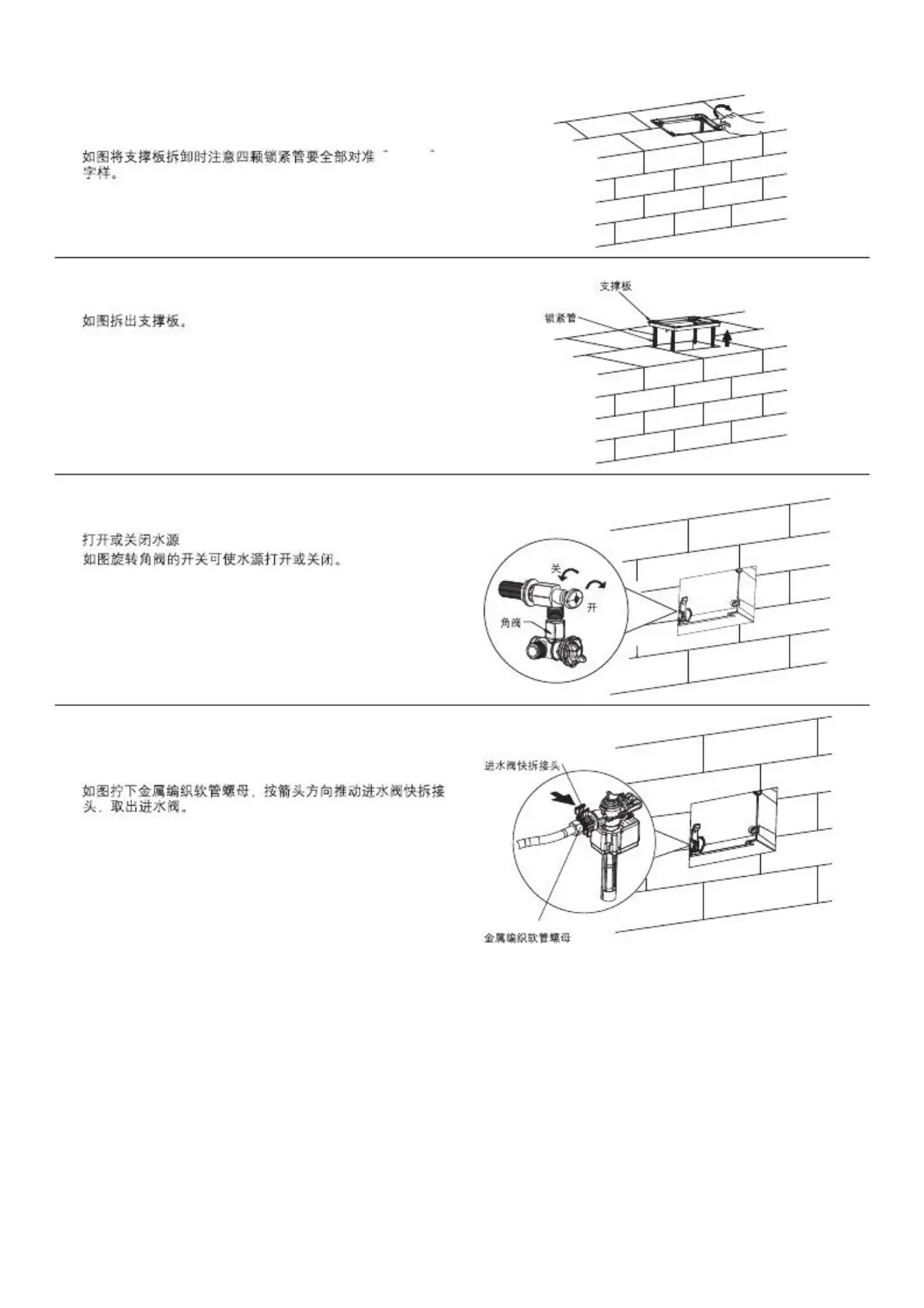

3. Dismantle supporting board as shown.
3.
2. Pay special attention when dismantle supporting board 4
lock nuts, all bolts shall align with "OPEN" mark.
2. OPEN
4. Open/close water supply
Rotate valve switch to open/close water supply as shown.
4.
5. Unscrew the nut of the metal weaved hose and push the
connector of the inlet valve as shown to remove the inlet
valve.
5.
Close
Open
Valve
Conntector,Quick release
Metal weaved hose nut
Supporting Board
Locknut
1288818-T01-A
