Kohler K-1118-LA User Manual

Product Information
Applicable product:
Curved apron bath – left drain (shown) K-1118-LA
Curved apron bath – right drain K-1118-RA
Fixture*:
Bathing well:
Basin area,
bottom
45-5/16″ (1151 mm) x 25-9/16″ (649 mm)
Basin area, top 52-9/16″ (1335 mm) x 28-1/16″ (713 mm)
Weight 70 lbs (32 kg)
To overflow:
Water depth 12-11/16″ (322 mm)
Capacity 55.6 gal (210.5 L)
*Approximate measurements for comparison only.
Recommended accessories:
Cable bath drain with PVC tubing OR K-7213
Cable bath drain, less PVC tubing OR K-7214
Brass Toe-tap bath drain K-7259
Notes
Install this product according to the installation guide.
Floor support under bath must provide for minimum of 45
lbs/square foot (219.7 kg/square meter) loading.
Fixture conforms to ANSI Standard Z124.1.2. All dimensions are
nominal.

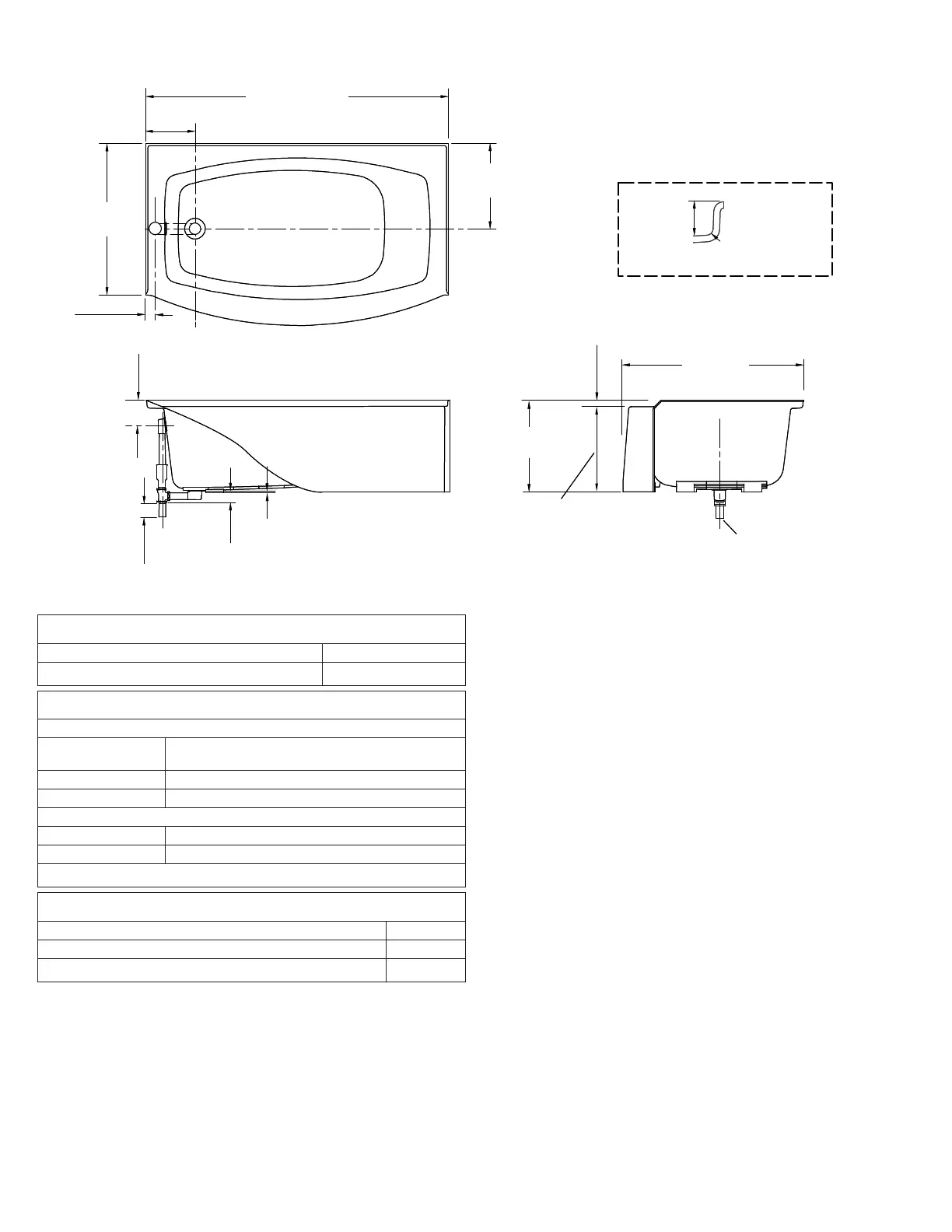

Integral Flange Detail
1-1/4"
(32 mm)
3/8"
(10 mm) R.
1-1/4"
(32 mm)
No change in measurements if connected
with drain illustrated. (K-7213)
17"
(432 mm)
18-1/4"
(464 mm)
2-1/2"
(64 mm)
1/2" (13 mm)
3"
(76 mm)
2-7/8" (73 mm)
30"
(762 mm)
9-3/4" (248 mm)
2-5/16"
(59 mm)
60" (1524 mm)
16-7/8"
(429 mm)
36"
(914 mm)
1-1/2" Bath Drain
1167627-1-A 2 Kohler Co.

Kohler K-1118-LA Specifications

General

Brand	Kohler
Model	K-1118-LA
Category	Bathroom Fixtures
Language	English
