2. Install the Valve Bodies
NOTE: The valve body marked ″COLD″ (with blue lettered tape
attached to the tube) should be installed to the right of the faucet.
Apply a bead of plumbers putty or other sealant to the underside
of the base of the handle body according to the manufacturer’s
instructions.
From the top of the lavatory, insert the cold and hot valve bodies
into the mounting holes. Make sure that the body marked
″COLD″ is installed in the right-hand hole as viewed from the
front of the lavatory.
Install a washer and a nut onto the underside of each valve body.
Rotate each valve body until the copper tubing faces toward the
outside of the lavatory.
While holding the valve bodies in place, securely tighten the nuts
with a wrench. Do not overtighten.
Remove any excess putty or sealant.
Install the O-ring on the hose and thread each hose into the
handle body outlet.
Tighten the hose connections on the handle body with a wrench.
Do not overtighten.

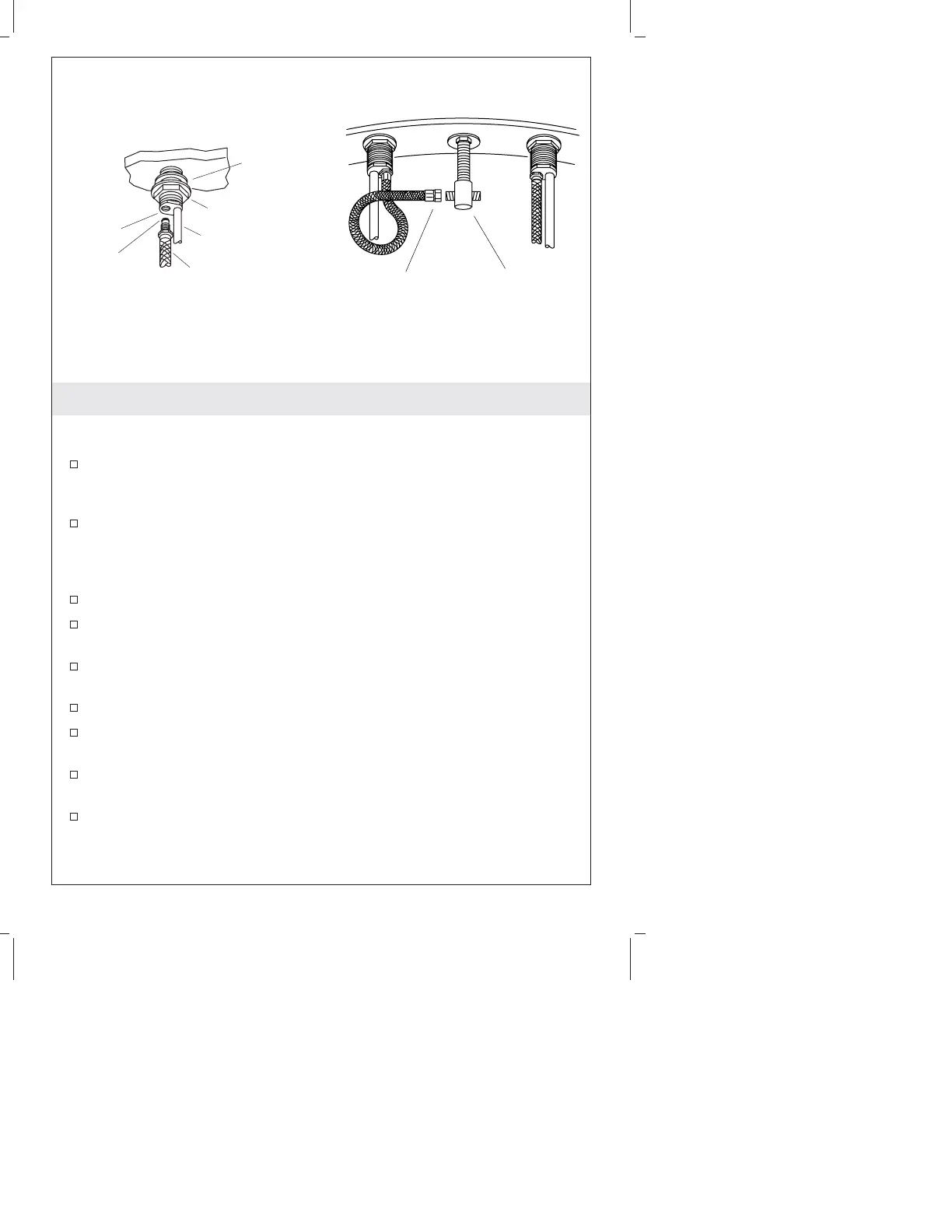

Loop the hoses as shown and connect them to the supply tee
inlets. Do not use thread sealant. Do not overtighten.
Copper
Tube
Nut
Flexible
Hose
Washer
O-Ring
Handle
Body
Outlet
Supply
Tee
Flexible
Hose
Supply
Tee
Flexible
Hose
Supply
Tee
Flexible
Hose
Supply
Tee
Flexible
Hose
Supply
Tee
Flexible
Hose
1054191-2-A 4 Kohler Co.
