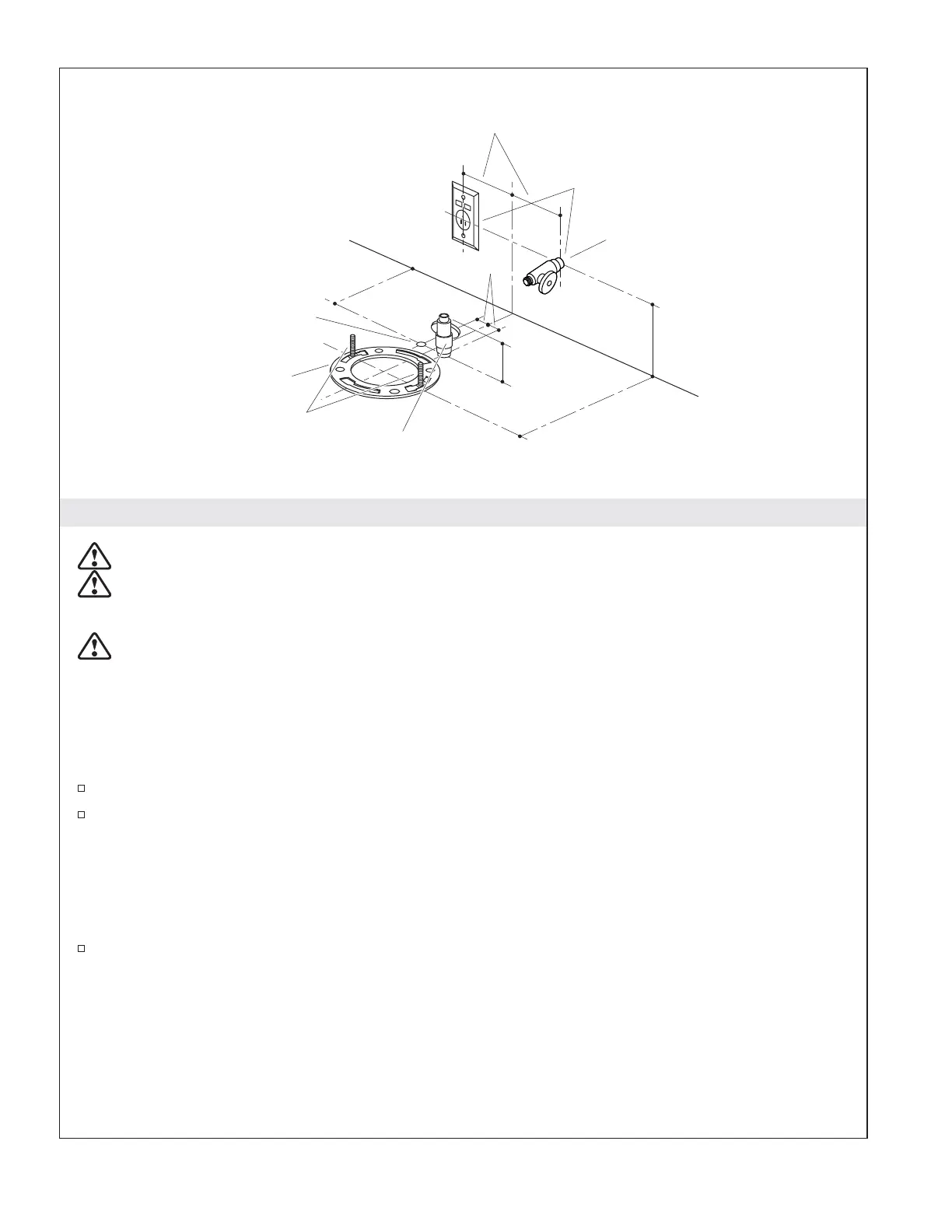

2. Install the Electrical Service and Water Supply
DANGER: Risk of electric shock. Disconnect power before servicing.
DANGER: Risk of electrical shock. For plug-in installations/wall-mounted electrical supply: Connect
only to a properly-grounded, grounding-type receptacle which is protected by a Ground-Fault
Circuit-Interrupter (GFCI). Do not remove the grounding pin or use a grounding adapter.
DANGER: Risk of electrical shock. For hardwire installations/through-floor electrical supply:
Connect only to a properly-grounded, dedicated 120 VAC, 15 A, 60 Hz circuit protected by a Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
Install the Electrical Service
NOTE: This product is designed for installation with the electrical supply located through either the wall
or the floor. Both types are illustrated. Refer to the dimensional information for your chosen installation.
Follow the dimensional information exactly when installing a hardwire electrical supply.
Install the electrical supply for your chosen installation.
Install the Water Supply
NOTE: This product is designed for installation with the water supply located through either the wall or
the floor. Both types are illustrated. Refer to the dimensional information for your chosen installation.
NOTE: A floor mounted water supply stop may be no higher than 2-3/4″ (7 cm) from the floor.
Install the water supply. If you are installing a floor supply, study the dimensional information
illustrated carefully.
Maximum incoming water pressure, 552 kPa (80 psi).
Minimum incoming water pressure, 138 kPa (20 psi).
7-1/4" (18.4 cm)
GFCI-
Protected
Receptacle
The wall locations of the
electrical and water supply
are interchangeable.
T-Bolts
6"
(15.2 cm)
12" (30.5 cm)
2-3/4" (7 cm)
3/4" (1.9 cm)
2-3/4" (7 cm)
Maximum Height
Supply Stop
Supply Stop
Hardwire
Electrical Supply
Floor Flange
1035530-2-C 4 Kohler Co.
