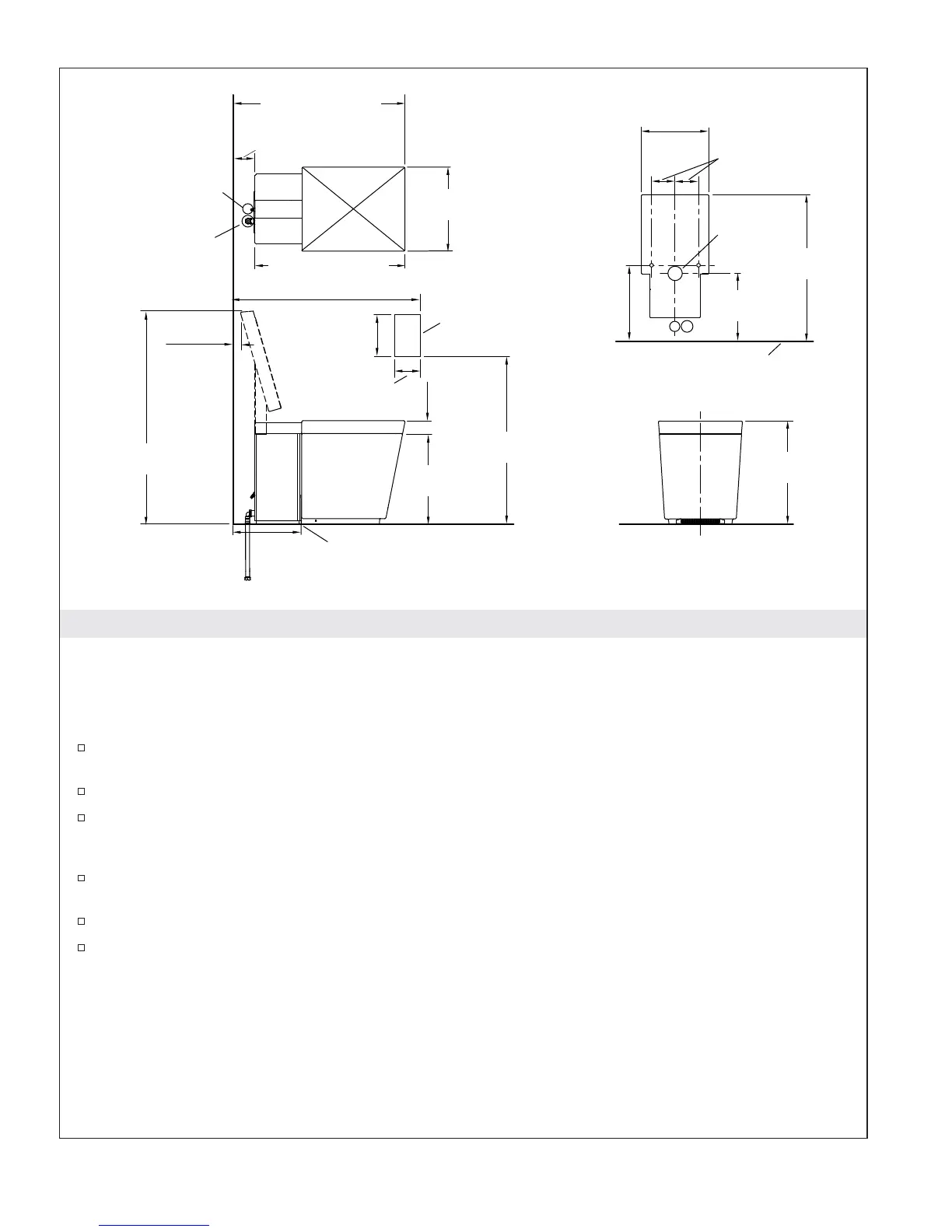

Roughing-in - Through-the-Floor Water and Electrical
NOTICE: The locations for the supply shut-off, electrical outlet, and docking station cord are suggested
locations. Make sure all installations adhere to applicable codes and standards.
IMPORTANT! Do not install any items behind the toilet that will interfere with the seat when it is raised.
All decorative items should be at least 37″ (940 mm) high to allow clearance for the seat.
The remote docking station is equipped with a 15’ (4.5 m) power cord. The station mounting
location shown for the docking station is ADA compliant.
The supplied power cord is 56″ (1422 mm) in length.
The toilet is equipped with a motion sensor to automatically open the cover when movement is
sensed. This sensor has a maximum range of 51-1/2″ (1300 mm). Sensitivity can be adjusted using
the User Interface.
The toilet is equipped with a seat actuator sensor, located on the right side of the toilet. This sensor
has a maximum range of 8″ (203 mm). Keep this area free of obstructions.
1/2″ OD compression supply stop outlet is required unless an adapter is used.
Installation of a water hammer arrestor is required.
Front of Bowl
25-3/4" (654 mm)
Finished Wall
Docking Station
Ø 1-1/2" (38 mm)
Water Supply Hole
Ø 1-1/4" (32 mm)
Power Supply Hole
Ø 2-5/8"
(67 mm)
14-1/2"
(368 mm)
25-1/4"
(641 mm)
10-13/16" (275 mm)
3-3/4" (95 mm),
3-9/16" (90 mm) Min
29-1/2" (749 mm)
12"
(305 mm)
12"
(305 mm)
15-5/8"
(397 mm)
2-1/4"
(57 mm)
1-3/4"
(44 mm),
1-1/2"
(38 mm)
Min
36-1/4"
(921 mm)
4-1/16"
(104 mm)
5-15/16"
(151 mm)
38" (965 mm) - 66" (1676 mm)
4-3/4" (121 mm)
17-7/8"
(454 mm)
41" (1041 mm) -
66" (1676 mm)
C
L Of Outlet
13-5/8"
(346 mm)
Kohler Co. 7 1132336-2-D
To Next Page
