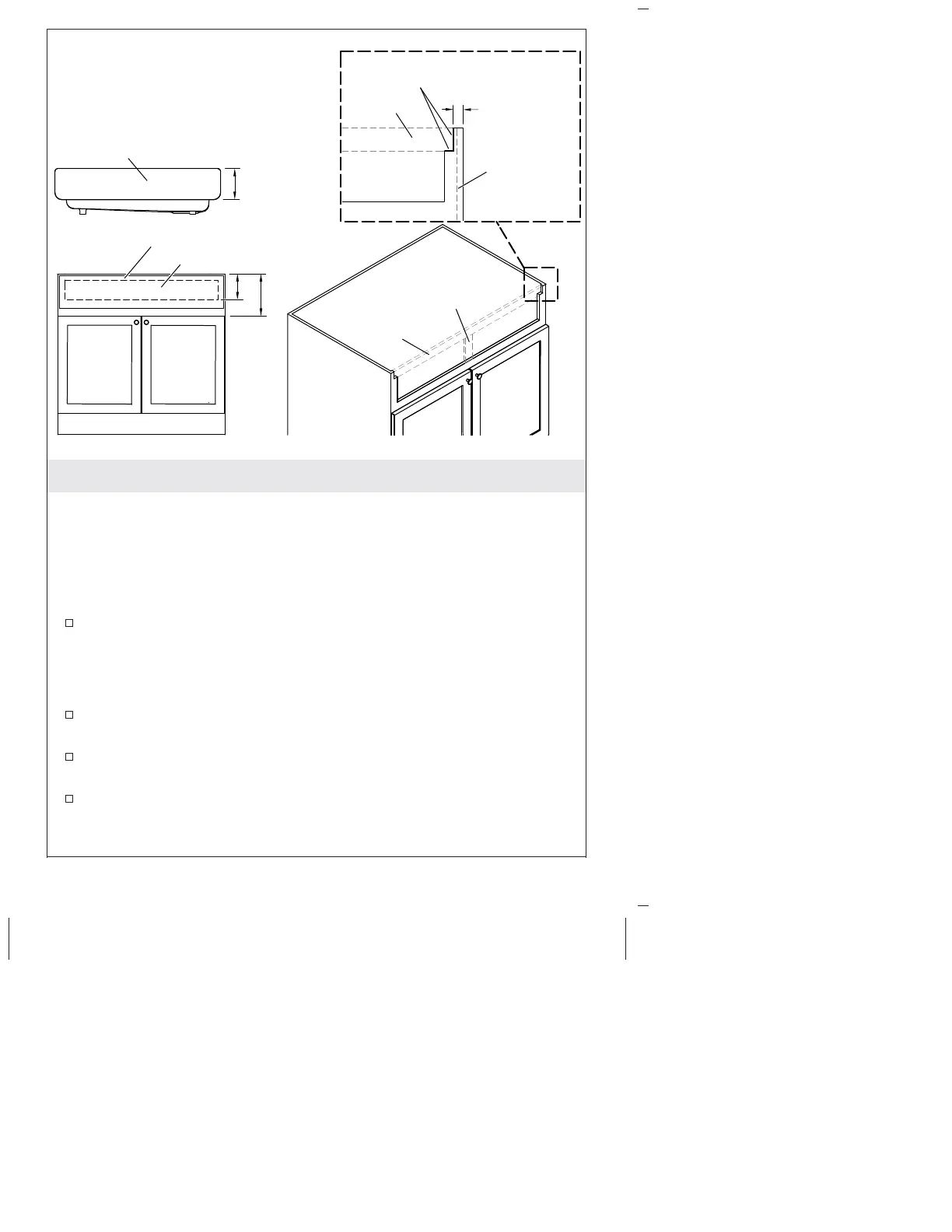

1. Roughing-In and Preparation
IMPORTANT! Before installing this sink, verify the opening height
(A) is less than the apron height, and the distance to the top of the
doors (B) is greater than the apron height.
NOTE: For cabinets with flat fronts (no false drawer openings),
proceed to the ″Prepare the Cabinet - Flat Front″ section.
Remove the false drawer front from your cabinet. Use care not to
damage the cabinet.
TIP: Apply painter’s tape to the cabinet to mark cuts and protect
cabinet surfaces when cutting.
Measure and mark 7/8” (22 mm) in from the outside edge of the
cabinet. Repeat for the other side.
Cut along each marked line until the cut extends slightly beyond
the top of the drawer opening/top rail of the cabinet.
Following the bottom edge of the rail, extend your cut until it
intersects with the previous cut. Repeat for the other side.
6-11/16"
(170 mm)
A = Top of Cabinet to Bottom of
Drawer Opening
B =
Drawer Opening
False Drawer Front
A
B
Apron
Top of Cabinet to Top of Doors
Rail
Center
Support
Rail
7/8" (22 mm)
Inside Wall
Cut Line
Kohler Co. 3 1217971-2-A
