Kohler K-7514 Maintenance Guide

Disassemble/Reassemble the Faucet
NOTE: Cover the drain with the plastic cap (provided) or towel to
avoid losing small parts during this procedure.
Disassemble
For K-13462, K-13468, and K-13474 only, use the 2.5 mm hex
wrench provided to remove and retain the screw from the
temperature lever. Remove and retain the temperature lever with
the spring washer.
Remove and retain the screw from the back of the faucet.
IMPORTANT! Take care to avoid scratching the sensor lens when
removing the spout.
Slide the spout forward and off the body.

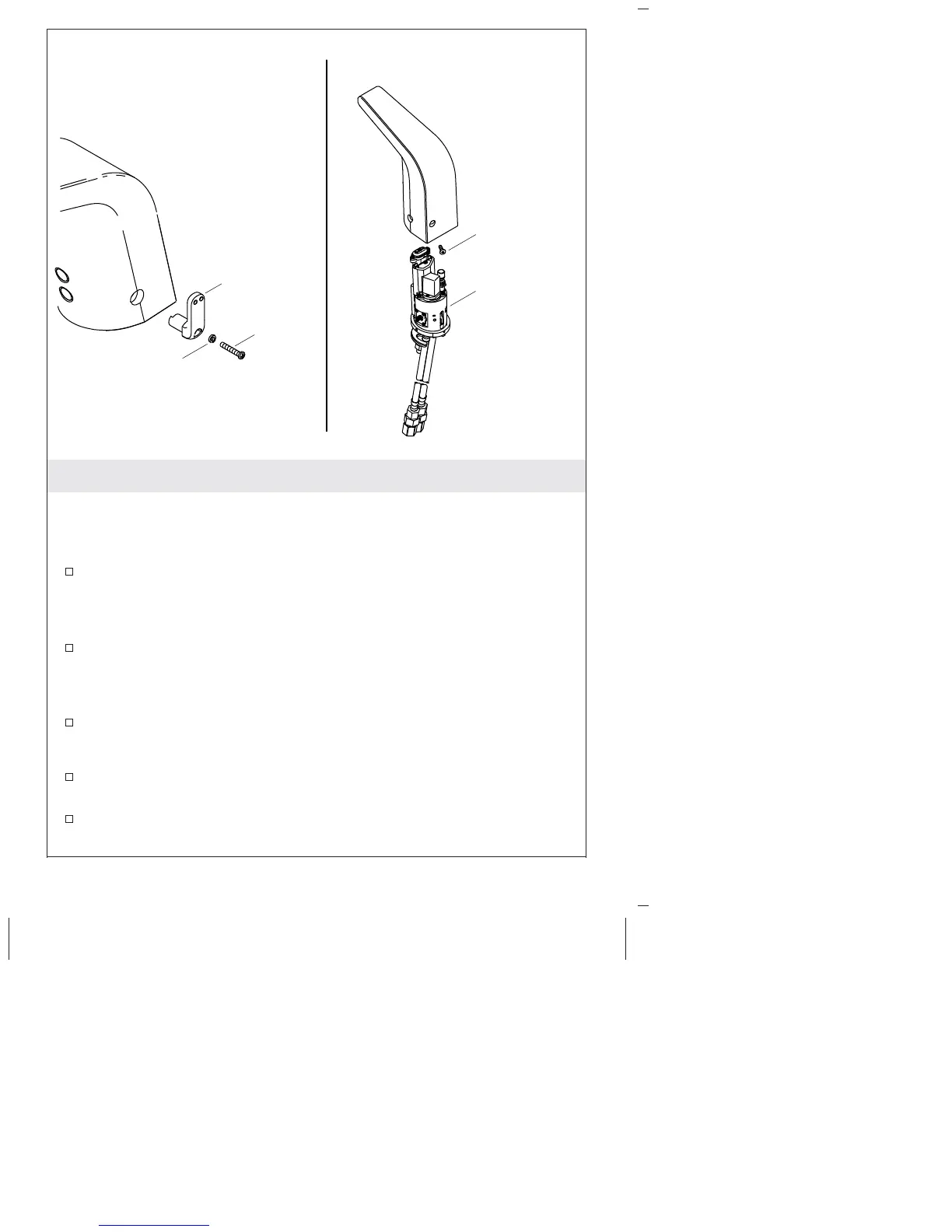

Reassemble
Slide the spout over the body until the base of the spout is flush
against the mounting surface.
Reinstall the screw into the back of the faucet.
Screw
Body
Temperature Lever Back of Faucet
Screw
Spring
Washer
Temperature
Lever
1124215-5-C 4 Kohler Co.
