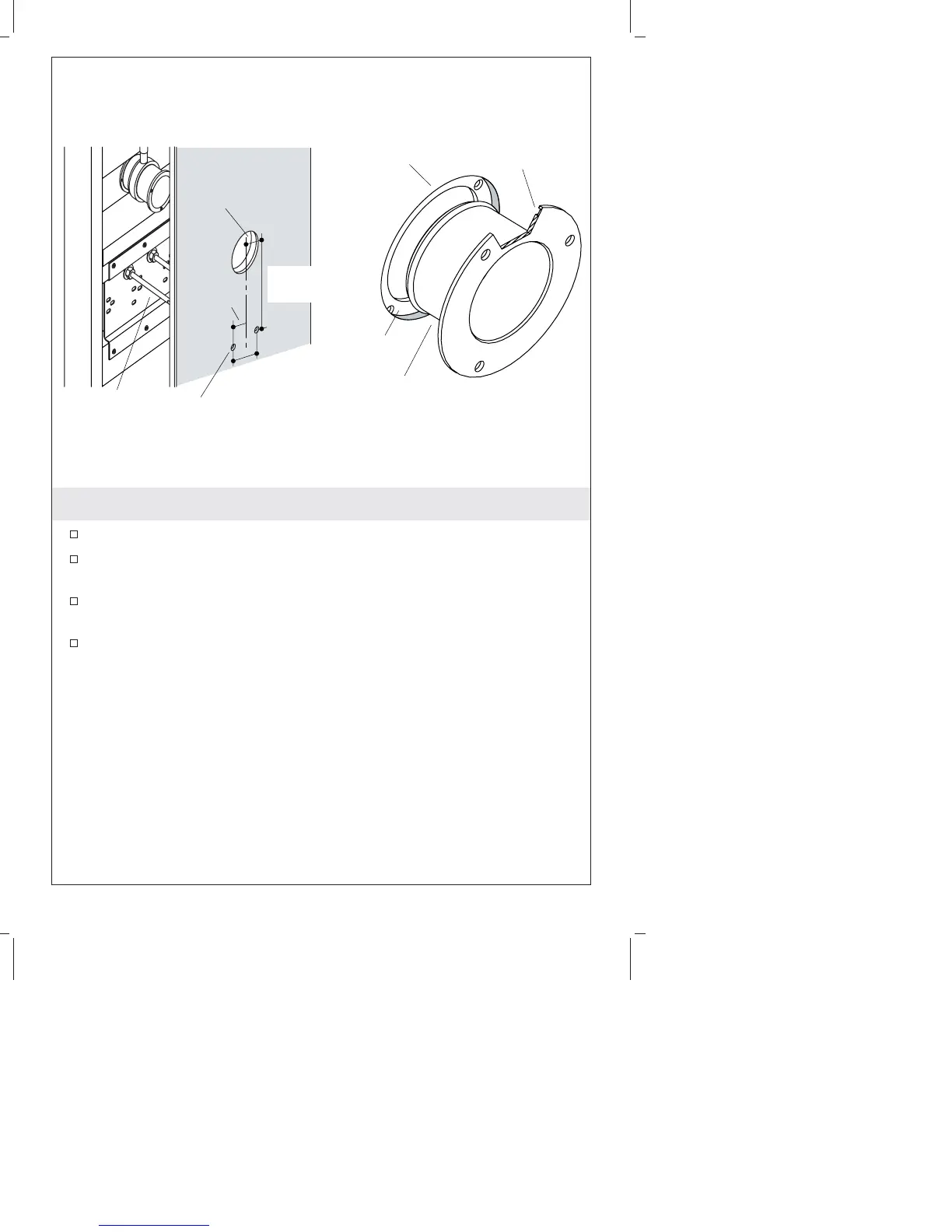

6. Complete the Installation
Complete the finished wall and/or ceiling.
If installing the optional drip tray, make sure the studs are
positioned and tightened correctly.
Apply silicone sealant to the groove in the flange of the mounting
sleeve.
Insert the mounting sleeve in the spout. Align the three screw
holes.
Finished
Wall
7-5/8"
(19.4 cm)
1-1/2"
(3.8 cm)
Mounting
Sleeve
Mounting
Plate
Installed
Spout
1/2" D. (1.3 cm) holes
(optional drip tray studs)
3-3/8" D. (8.6 cm)
(spout hole)
3" (7.6 cm)
Add sealant
to groove.
1006741-2-G 10 Kohler Co.
