1. Determine the Location
CAUTION: Risk of property damage. When employing a
wall mount installation, install this spout at the end of the
bathing fixture so the water stream projection stays within
the bathing fixture.
There are three recommended installation configurations for the
spout: 1) offset wall mount, 2) center wall mount, and 3) ceiling
mount. The offset wall mount is highly recommended for the
safety of the user.

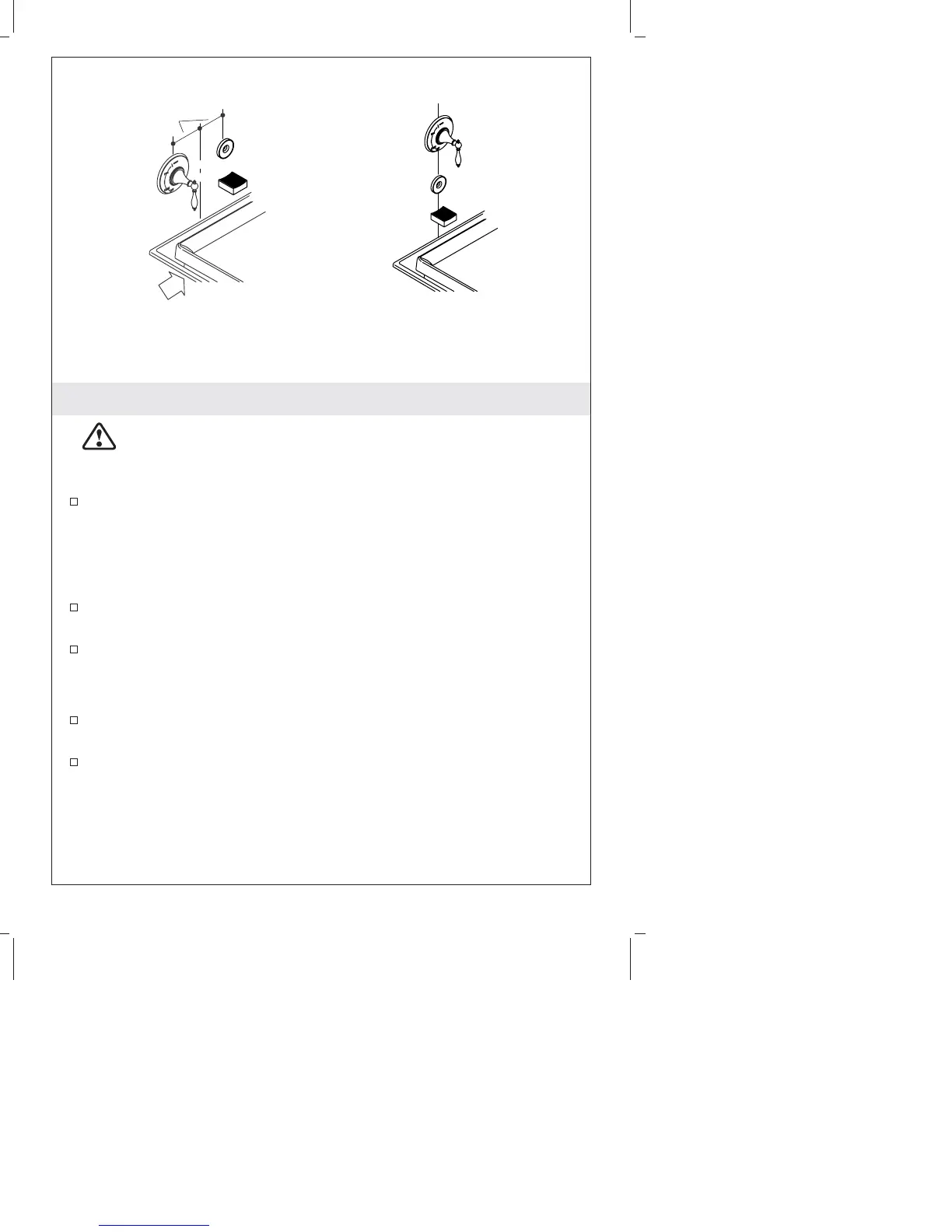

Offset Installation
The spout assembly is placed 7″ (17.8 cm) from the center of the
bathing fixture, away from the entry side of the fixture.
The offset configuration allows users to avoid the stream of water
when entering or using the bathing fixture.
Center Installation
The spout assembly is positioned directly above and on the
centerline of the bathing fixture.
This installation should only be used when the offset installation
is not possible.
7" (17.8 cm)
Bath
Enter
Offset Installation
Bath
Center Installation
1006741-2-G 4 Kohler Co.
