Reassembly
KohlerEngines.com 32 690 03 Rev. H
External Engine Components
J
T
E
L
G
S
S
R
E
E
F
H
H
I
V
U
K
B
B
A
C
D
M
O
N
P
Q
W

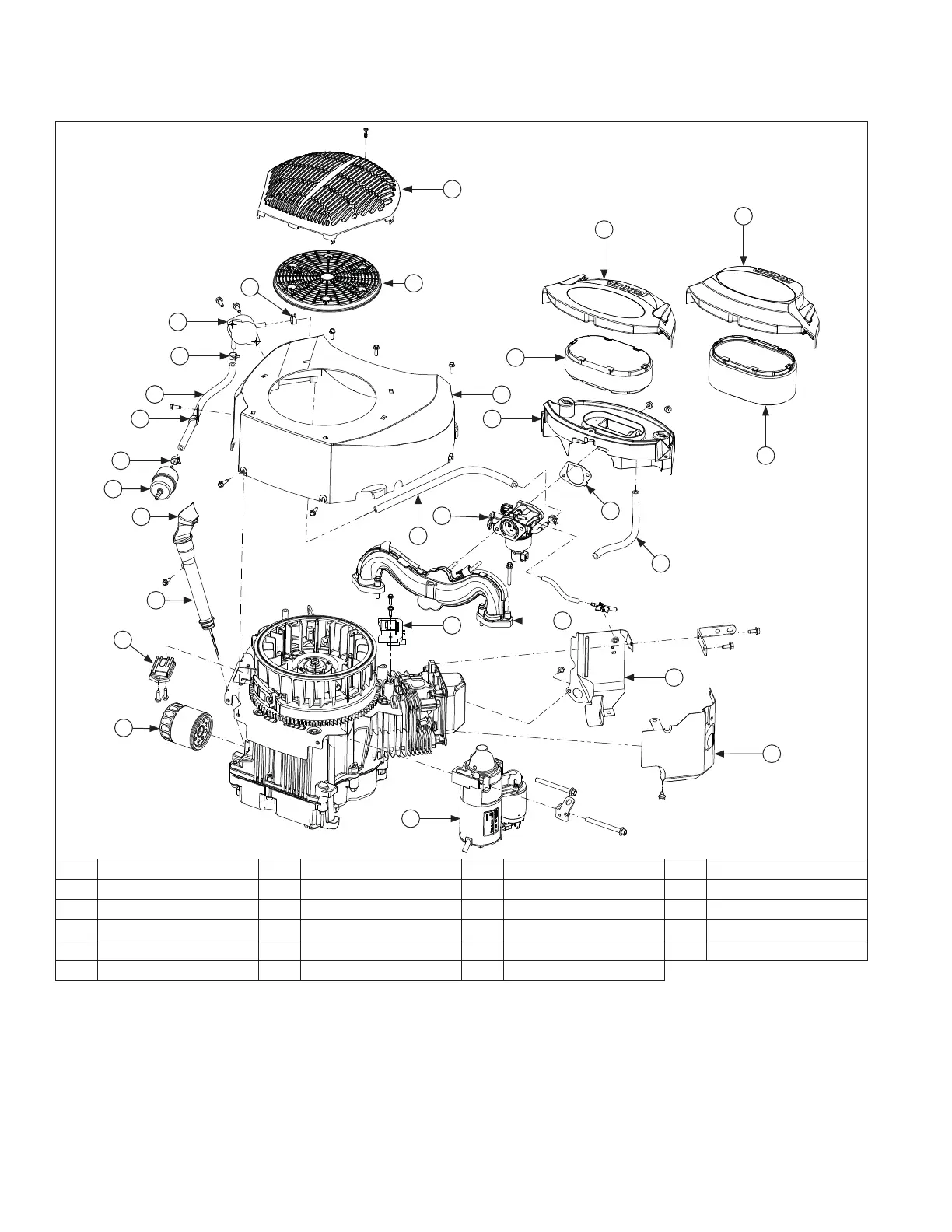

A Fixed Guard B Air Cleaner Cover C Debris Screen D Blower Housing
E Hose Clamp F Fuel Pump G Hose Clip H Fuel Line
I Fuel Filter J Oil Filter K Outer Baffl e L Electric Starter
M Inner Baffl e N Ignition Module O Intake Manifold P Carburetor
Q Gasket R Air Cleaner Base S Air Cleaner Element T Rectifi er-Regulator
U Dipstick Tube V Oil Fill/Dipstick W Breather Hose
To Next Page
